Product Details
Place of Origin: China
Brand Name: cge
Certification: ISO9001
Model Number: H/WL Reaming shell Outer diameter96.09mm
Payment & Shipping Terms
Minimum Order Quantity: 2PCS
Price: Negotiation
Packaging Details: Wooden box/Carton box,customized
Delivery Time: According to order
Payment Terms: L/C T/T Western Union Paypal
Supply Ability: 999+
Material: |
Natural Diamond,Synthetic Diamond,TSP Thermally Stable Polycrystalline |
Standard: |
DCDMA Standard/ Q Standard |
Use: |
Reaming The Hole, Acts As A Stabilizer For Drill Bit |
Advantage: |
Factory Price, Wear Resistant, Optimum Penetration Rates And Bits Life, High Performance Oem Available |
Name: |
H/WL H/WL-3 Diamond Impregnated Reaming Shell |
Material: |
Natural Diamond,Synthetic Diamond,TSP Thermally Stable Polycrystalline |
Standard: |
DCDMA Standard/ Q Standard |
Use: |
Reaming The Hole, Acts As A Stabilizer For Drill Bit |
Advantage: |
Factory Price, Wear Resistant, Optimum Penetration Rates And Bits Life, High Performance Oem Available |
Name: |
H/WL H/WL-3 Diamond Impregnated Reaming Shell |

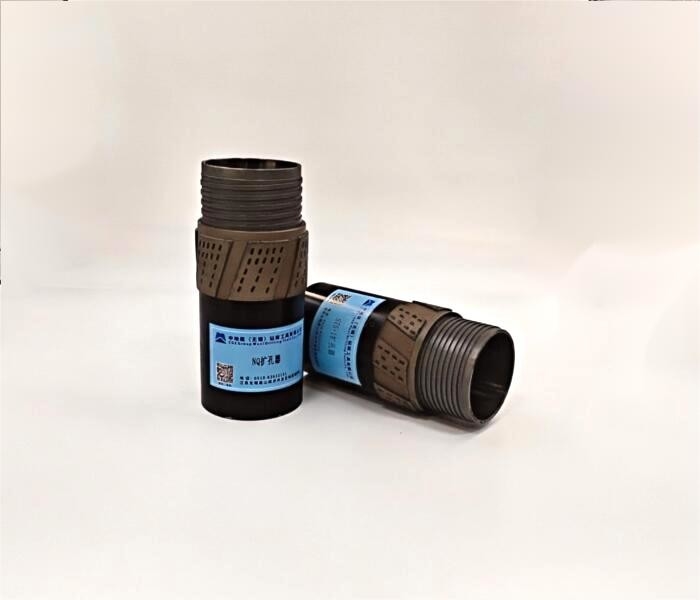

H / WL H / WL -3 Diamond Impregnated Reaming Shell Exploration Drilling
Diamond Reaming Shell
H/WL diamond impregnated Reaming shell Outer diameter96.09mm
Reaming shells are designed to be placed behind the bit to ensure hole gauge and to help core barrel stabilization. Improving drill string stability and protecting lower drill string from excessive wear, and ensures that when a new core bit is inserted into a continuing bore hole there is a good chance of reaching the bottom of the bore hole without reaming.
Combined high quality and design make our reaming shells the best in the industry.
Three types of reaming shells can be selected: :Reinforce, Protector, Stability.
1. Reinforce(Only diamond)
2. Protector(Diamond and polycrystalline)
3. Stability(TSP thermally stable polycrystalline)
4. Size of Reaming shell
| Reaming shell | |
| Outer Diameter | |
| Inch | mm |
| 2.36 | 59.95 |
| 2.98 | 75.7 |
| 3.783 | 96.09 |
| 1.89 | 48.01 |
| 2.36 | 59.95 B/WLReam shell |
| 2.36 | 59.95 B/WL- 3Ream shelll |
| 2.98 | 75.7 N/WL Ream shell |
| 2.98 | 75.7 N/WL-3 Ream shell |
| 3.783 | 96.09 H/WL Ream shell |
| 3.783 | 96.09 H/WL-3 Ream shell |
| 4.828 | 122.65 P/WL Ream shell |
| 4.828 | 122.65 P/WL-3 Ream shell |
| 2.224 | 56.5 |
| 3.019 | 76.5 |
| 3.406 | 86.5 |
| 3.996 | 101.5 |
| 3.996 | 101.5 |
| 5.157 | 131.5 |
