Use: |
Ensure Inside Wall Is Smooth And Large Enough For Free Passage Of Coring Drilling String |
Standard: |
DCDMA Standard/ Q Standard |
Advantage: |
Factory Price, Wear Resistant, Optimum Penetration Rates And Bits Life, High Performance Oem Available |
Service: |
OEM&ODM, (within 24hours)quick Response, ODM, OEM, Customized |
Name: |
H/WL Flat Face Profile Casing Shoe Impregnated Diamond Bit |
Use: |
Ensure Inside Wall Is Smooth And Large Enough For Free Passage Of Coring Drilling String |
Standard: |
DCDMA Standard/ Q Standard |
Advantage: |
Factory Price, Wear Resistant, Optimum Penetration Rates And Bits Life, High Performance Oem Available |
Service: |
OEM&ODM, (within 24hours)quick Response, ODM, OEM, Customized |
Name: |
H/WL Flat Face Profile Casing Shoe Impregnated Diamond Bit |
High Reliability Flat Face Profile Casing Shoe Drilling With Long Shelf Life
The diamond impregnated casing/rod shoe is the most commonly used as it has the widest range of application and is generally the most efficient tool for advancing casing/rod through overburden layers. We supplies casing and rod shoes with four waterway channels or multi waterway channels depending on the requirements.
We manufacture two types of Casing shoe: W-profile, Flat face profile, and can be customized .
Casing shoe and Rod shoe

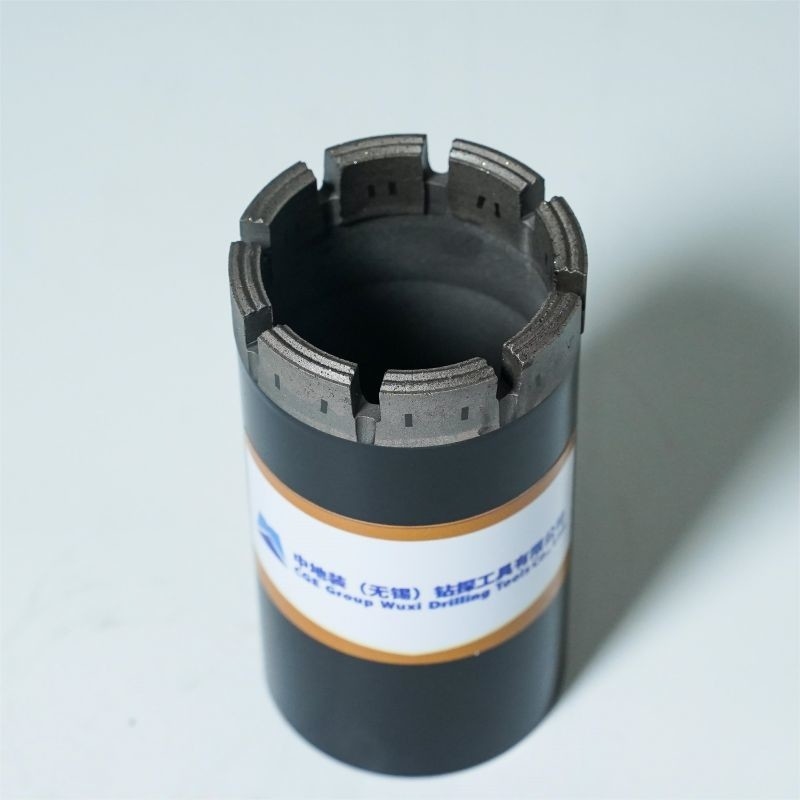

H/WL W-profile Casing shoe (117.48mm/99.7mm),The DCDMA standard impregnated diamond bits are the most commonly useful bits in the mineral exploration.
| Casing Shoe Sizes | ||||
| DESCRIPTION | Outer Diameter | Inner Diameter | ||
| Inch | mm | Inch | mm | |
| AW | 2.345 | 59.56 | 1.9 | 48.26 |
| B/WL | 2.965 | 75.31 | 2.37 | 60.2 |
| N/WL | 3.615 | 91.82 | 2.992 | 76 |
| H/WL | 4.625 | 117.48 | 3.925 | 99.7 |
| HWT | 4.625 | 117.48 | 3.925 | 99.7 |
| P/WL | 5.653 | 143.58 | 4.855 | 123.3 |
| T2-56 | 2.205 | 56 | 1.85 | 47 |
| T2-76 | 2.992 | 76 | 2.638 | 67 |
| T2-86 | 3.385 | 86 | 2.823 | 71.7 |
| T2-101 | 3.976 | 101 | 3.031 | 77 |
| T6-101 | 3.976 | 101 | 3.445 | 87.5 |
| T6-131 | 5.157 | 131 | 4.646 | 118 |
| Rod Shoes Sizes | ||||
| DESCRIPTION | Outer Diameter | Inner Diameter | ||
| Inch | mm | Inch | mm | |
| B/WL | 2.345 | 59.56 | 1.78 | 45.21 |
| N/WL | 2.965 | 75.31 | 2.37 | 60.2 |
| H/WL | 3.615 | 91.82 | 2.992 | 76 |
| P/WL | 4.75 | 120.66 | 3.985 |
101.22
|
{2}(1)Appropriate hardness of matrix(For some special or complicated ground,we will need to customize the diamond bits according to the actual drilling conditions.)
(2)Appropriate profile/water way and height of the crown(Height of the crown:9mm-20mm,standard:14mm,Customized)
W-Profile(Standard profile)
·General purpose design
·Suitable for mixed formations contain broken and competent zones
·Suitable for a board range of formations
·Height of crown:14mm,Customized
Face discharge Profile
·Design to minimize washing of core sample
·Suitable for broken/granular formations
·Height of crown:14mm,Customized
Turbo Profile
·High performance ”free cutting” bit
·High productivity
·Suitable for hard/competent formations
·Suitable for non-abrasive formations
Height of crown:14mm,Customized
Sand profile
Suitable for competent to extremly broken or clay,
clay/sand mixed formations
·Double tube applications
·To improve core recovery in soft/broken or loose zones
·Height of crown:14mm,Customized
Taper Profile
·Profile used in hole wedging(directional drilling)
Operations to ream wedged hole after pilot bit
· Height of crown:14mm,Customized
{3}Select suitable series from our three types
(1)Master Series(Full range hardness of stratum)
Manufactured one by one with care and precision,Master™ core bit are designed to our highest quality standards. They offer their best performance in very hard to extremely hard types, such as those comprised of basalt and felsic or volcanic rock and so on.
(2)Navigator Series(Soft -very hard hardness of stratum)
Navigator™is our highest cost performace and most popular series. This series provides the versatility you need for optimum drilling perforance in varying conditions, best performance in soft to very hard stratums
(3)Junior Series(Soft-medium hardness of stratum)
Attractive price with high cost performance, Junior™series provide good performance in soft to medium stratums
