Product Details
Place of Origin: Made in Wuxi, China
Brand Name: cge
Certification: ISO9001:2015
Model Number: NWL
Payment & Shipping Terms
Minimum Order Quantity: N/A
Price: Negotiation
Packaging Details: Steel Belt Iron Frame Export Wooden Case
Delivery Time: 10-15 working days after payment
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Name: |
Wireline Drill Rod NWL |
Material: |
Alloy Steel: 30CrMnSi ZT850 |
Designed Depth: |
2000m |
O.D: |
69.9mm |
I.D: |
60.3mm |
Usage: |
Mineral Exporation ( Diamond Coring) |
Process: |
Both End Case Hardening |
Name: |
Wireline Drill Rod NWL |
Material: |
Alloy Steel: 30CrMnSi ZT850 |
Designed Depth: |
2000m |
O.D: |
69.9mm |
I.D: |
60.3mm |
Usage: |
Mineral Exporation ( Diamond Coring) |
Process: |
Both End Case Hardening |
Description:

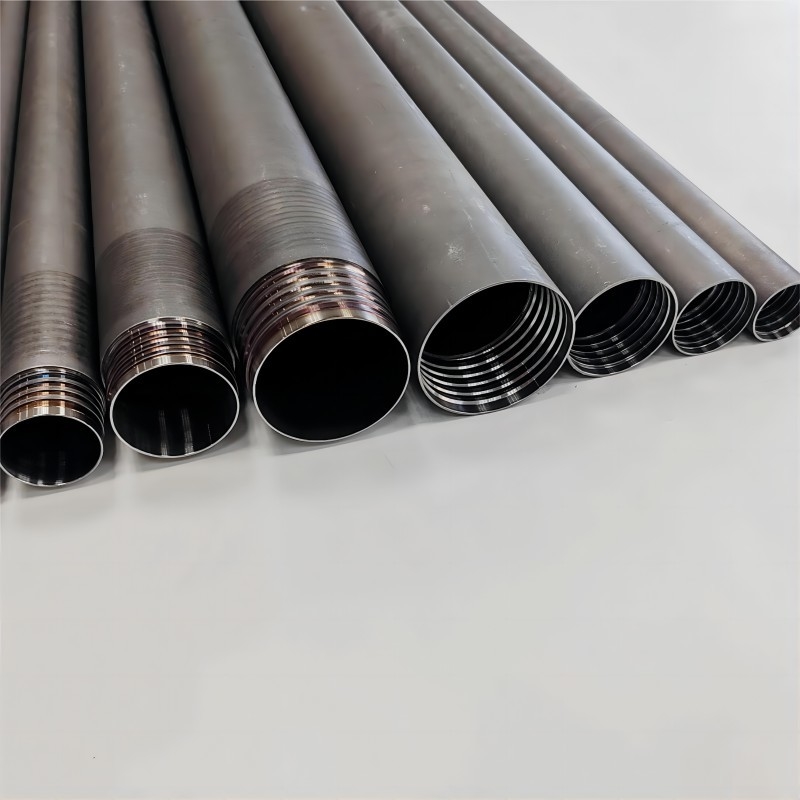

Description of Wireline Drill Rod:
This wireline drill rod is the equipment that connects the drilling tools and drilling bits, and it is mainly used to transmit power. It mainly consists of a tubing body and two thread ends.
The wireline drill rod features good wear resistance, optimal tensile strength capacity and good torsional property.
Technical Parameters of Wireline Drill Rod:
| No | Size | Drillrod | Threadtype | Heat | Rawmaterial | Designedhole depth | |
| OD mm | ID mm | treatment | |||||
| 1 | S56 | 53 | 44 | China standard | 45MnMoB | 1000m | |
| 2 | S59 | 55.5 | 46 | China standard | 1000m | ||
| 3 | S75 | 71 | 61 | China standard | 1002m | ||
| 4 | S95 | 89 | 79 | China standard | 600m | ||
| 5 | S75A | Both side were enhanced | 61 | Factorystandard | heattreatment the Thread | 45MnMoB | 1500m |
| 6 | S95A | 79 | 1300m | ||||
| 7 | CBH | 44 | Heattreatment the whole pipe | 30CrMnSiA | 2500m | ||
| 8 | CNH | 61 | 2300m | ||||
| 9 | CNH(T) | 61 | XJY850 | 3000m | |||
| 10 | CHH | 78 | 30CrMnSiA | 1800m | |||
| 11 | CSH | 127 | 114.3 | S135 | 3000m | ||
| 12 | BQ | 55.6 | 46 | DCDMAstandard | Heattreatment the whole pipe | ZT850 | 2000m |
| 13 | NQ | 69.9 | 60.3 | 2000m | |||
| 14 | HQ | 89 | 77.8 | 1500m | |||
| 15 | PQ | 114.3 | 103.2 | ZT520 | 800m |
||
Concerning the packing, it is packaged by iron belts.
BQ Bundled Specifications (Steel Belt):
3.0m/10ft BQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.4×0.4
Volume: 0.5 m3
Gross Weight670 kg
BQ Bundled Specifications (Iron Frame):
3.0m/10ft BQ Drill Rod (30 Pieces)
Dimensions (L×W×H): 3.0×0.35×0.3
Volume: 0.32 m3
Gross Weight550 kg
NQ Bundled Specifications (Steel Belt):
3.0m/10ft NQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.5×0.5
Volume: 0.75 m3
Gross Weight900 kg
NQ Bundled Specifications (Iron Frame):
3.0m/10ft NQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.38×0.39
Volume: 0.43 m3
Gross Weight610 kg
HQ Bundled Specifications (Steel Belt):
3.0m/10ft HQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.625×0.625
Volume: 1.2 m3
Gross Weight1300 kg
HQ Bundled Specifications (Iron Frame):
3.0m/10ft HQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.46×0.47
Volume: 0.65m3
Gross Weight890 kg
