Home > products > Chinese Standard Products > Hdd 70x6.5mm 3m Long Drill Pipe Casing ISO Passed

Hdd 70x6.5mm 3m Long Drill Pipe Casing ISO Passed

Product Details

Place of Origin: Made In China

Brand Name: cge

Certification: ISO

Model Number: 70*6.5mm

Payment & Shipping Terms

Minimum Order Quantity: 5 Pcs

Price: USD250-480

Packaging Details: Steel cap with bundle package

Delivery Time: 5-30 days

Payment Terms: L/C, T/T

Supply Ability: 3500 pcs/ month

Get Best Price
High Light:

3m long drill pipe casing

,

70x6.5mm drill pipe casing

,

70x6.5mm hdd drill rods

Application:
Modular Electrically Connected Cable Assembly (MECCA Drill Rod), With A Communication Channel (inside Cable) Is Designed For Horizontal Directional Drilling Using A Telemetry System. It Was Designed For Deep Hole Wire Line Applications For Under Ground Coa
Material:
S 135
O.D:
70mm
Thickness:
11mm
Effective Length:
3000mm
Tolerable Pressure (MPa):
10
Recommended Torque ( N.M):
≤5500
Application:
Modular Electrically Connected Cable Assembly (MECCA Drill Rod), With A Communication Channel (inside Cable) Is Designed For Horizontal Directional Drilling Using A Telemetry System. It Was Designed For Deep Hole Wire Line Applications For Under Ground Coa
Material:
S 135
O.D:
70mm
Thickness:
11mm
Effective Length:
3000mm
Tolerable Pressure (MPa):
10
Recommended Torque ( N.M):
≤5500
Hdd 70x6.5mm 3m Long Drill Pipe Casing ISO Passed

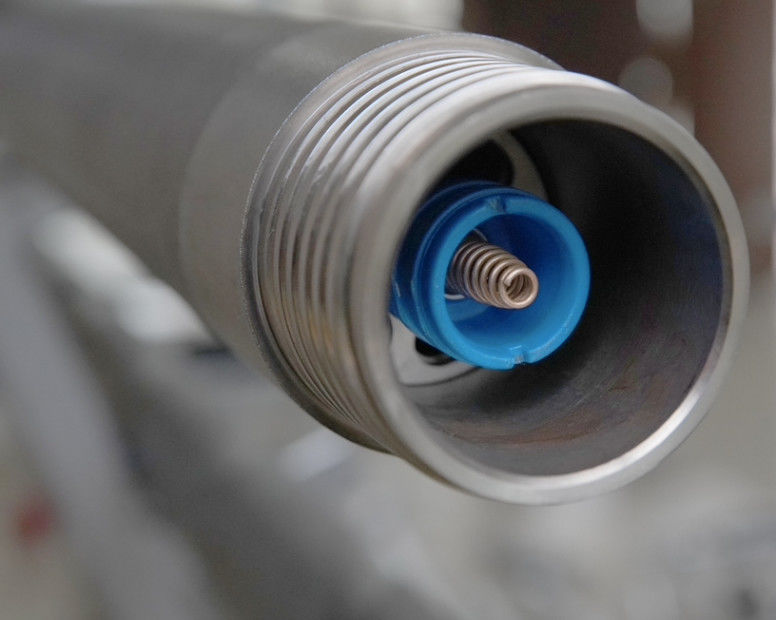

MECA Insert Drill Rod 70*11mm 3m Long for coal mine-Modular Electrically Connected Cable Assembly



Directional drill rod is mainly used for directional horizontal drilling in coal mine tunnel. It coordinates with ground display device to display drilling trajectory data in real time. The operator can adjust the direction of drilling trajectory according to the display data in time, so as to achieve the goal of directional drilling. It is widely used in directional drilling control in geological, mining, coal, petroleum, water and other industries.

Applications:



Directional long boreholes drilling and water exploration and drainage boreholes drilling in underground coal mines.It can also be used for the drilling of nearly horizontal directional boreholes in surface or tunnel.

Hdd 70x6.5mm 3m Long Drill Pipe Casing ISO Passed 0





Directional Drill Rod ( MECCA Drill Rod) Specifications and Technical Parameters





size

(mm)



Max OD

(mm)



Steel Grade



Effective Length

(mm)



Tolerable Pressure



(MPa)



Recommended Torque

(N.m)

Φ70*6.5 Φ70 S135 3000 10 ≤4500
Φ70*9.5 Φ70 S135 3000 10 ≤5500
Φ73*7.5 Φ76 S135 3000 10 ≤6600
Φ89*6 Φ91 S135 3000 10 ≤11000
Φ102*6 Φ104 S135 3000 10 ≤17600
