HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration

HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration

Products - Diamond Core Bit
  • High Light

    Impregnated Diamond Bit

    ,

    Diamond Core Drill Bit

    ,

    Diamond Drill Bit

  • Application
    For Mineral Exploration - Wireline Coring Drilling, Cutting The Rock And Get The Core Sample
  • Name
    HQ Standard W Profile Impregnated Diamond Bit
  • Crown Height
    14mm
  • Main Material
    Sythetic Diamond Power
  • Available Crown Height
    12mm, 14mm, 16mm
  • Available Size
    BQ NQ And PQ
  • Waterways
    8/10
  • Place of Origin
    China
  • Brand Name
    cge
  • Certification
    ISO9001
  • Model Number
    HQ ( OD: 95.6mm ID: 63.5mm)
  • Minimum Order Quantity
    2PCS
  • Price
    Negotiation
  • Packaging Details
    Wooden box/carton box, customized
  • Delivery Time
    According to order
  • Payment Terms
    L/C, T/T,
  • Supply Ability
    999+

HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration

  • HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration
  • HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration
Get Price Contact Now

HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration 0HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration





Description of Diamond Core Drill Bit



CHINA GEOLOGICAL EQUIPMENT GROUP possesses professional ability of WL/ Q series drill bits and reaming shells.

Our drilling bits have first-class quality , excellent performance. Bits and reaming shells are designed on basis of ground condition.

In respect of drilling in speed and useful life,our products are the most competitive products in China based on top quality.


Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix.
The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds
are exposed to continue cutting through the rock. In most geological formations, IMP bits are more economical to use than other bits.



Shapes of lips: flat-bottom,circular,serration,pointed teeth,angle teeth,ladder,and ladder with end spray .


Standard : To cooperate with Q series drilling tools,bits are designed on basis of different stratum condition.

Our company also design and produce non-standard drilling bits according to customer's special requirements.



Recommendation : When hardness of stratum is high,low grade drilling bits are recommended to ensure matching of stratum.





Specifications



Size Bit O.D. Hole Diameter Bit I.D. Core Diameter Reaming Shell O.D.
INCHES MM INCHES MM INCHES MM
AQ 1.870/1.880 47.50/47.75 1.057/1.067 26.85/27.10 1.885/1.895 47.88/48.13
LTK48 1.870/1.880 47.50/47.75 1.384/1.394 35.15/35.41 1.885/1.895 47.88/48.13
BQ 2.340/2.350 59.44/59.69 1.428/1.438 36.27/36.53 2.355/2.365 59.82/60.07
BQ3 2.340/2.350 59.44//59.69 1.315/1.325 33.40/33.65 2.355/2.365 59.82/60.07
NQ 2.960/2.970 75.18/75.44 1.870/1.880 47.50/47.75 2.975/2.985 75.57/75.82
NQ2 2.960/2.970 75.18/75.44 1.990/2.000 50.65/50.80 2.975/2.985 75.57/75.82
NQ3/NQTT 2.960/2.970 75.18/75.44 1.770/1.780 44.96/45.21 2.975/2.985 75.57/75.82
NMLC 2.960/2.970 75.00/75.44 2.042/2.052 51.87/52.12 2.975/2.985 75.50/75.82
HQ 3.755/3.770 95.38/96.00 2.495/2.505 63.38/63.63 3.775/3.790 95.89/96.27
HQ3/HQTT 3.755/3.770 95.38/95.57 2.401/2.411 60.99/61.24 3.775/3.790 95.89/96.27
PQ 4.795/4.815 121.80/122.30 3.340/3.350 84.84/85.09 4.820/4.835 122.43/122.81
PQ3 4.795/4.815 121.80/122.30 3.265/3.275 82.93/83.19 4.820/4.835 122.43/122.81
T2-76 2.987/2.997 75.87/76.12 2.424/2.434 61.56/61.82 2.999/3.009 76.17/76.42
T2-86 3.381/3.391 85.87/86.12 2.818/2.828 71.56/71.82 3.393/3.403 86.17/86.42
T2-101 3.970/3.982 100.84/101.14 3.290/3.300 83.56/84.00 3.984/3.994 101.19/101.44
T6-101 3.970/3.982 100.84/101.14 3.105/3.115 78.88/79.13 3.984/3.996 101.21/101.51
T6-116 4.560/4.575 115.80/116.18 3.657/3.667 92.88/93.13 4.575/4.590 116.21/116.59
T6-131 5.150/5.165 130.80/131.18 4.247/4.257 107.88/108.13 5.165/5.180 131.21/131.59
T6-146 5.740/5.755 145.80/146.18 4.837/4.847 122.88/123.13 5.757/5.772 146.23/146.61
HMLC 3.858 98.00 2.500 63.50 3.878 98.50










































Advantages



  • High quality drilling equipment;
  • Full technical support and service;
  • Spare parts, tools and consumable materials
  • Training and consulting services
  • International sales and dealership agencies;

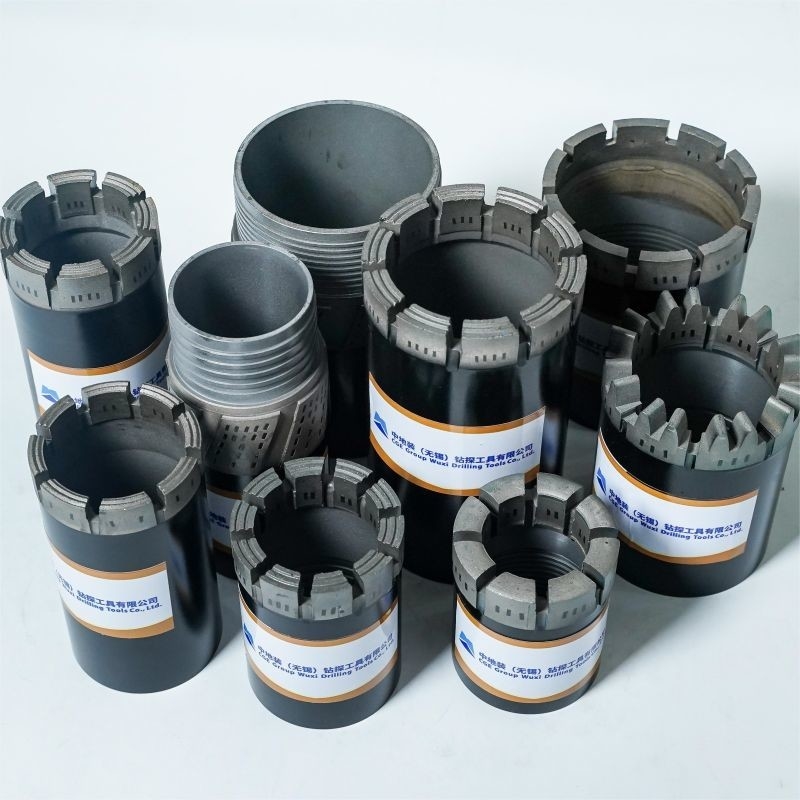

diamond core bit picture

HQ Standard W profile Impregnated Drill Bits C14 for mineral exploration 1
