Overshot Assembly NQ

  • Overshot Assembly NQ
  • Overshot Assembly NQ
  • Overshot Assembly NQ
  • Overshot Assembly NQ
Place of Origin Made in Wuxi, China
Brand Name cge
Certification ISO9001
Model Number NQ
Minimum Order Quantity N/A
Price Negotiation
Packaging Details Steel Belt Iron Frame Export Wooden Case
Delivery Time 10-15 working days after payment
Payment Terms T/T or L/C
Supply Ability 10,000pcs per month
Product Details
Product Name NQ Overshot Assembly For Wireline Coring Drilling Standard DCDMA
Avalilable Size BQ NQ HQ And PQ Application Overshot Assembly Is A Kind Of Tool Specially Used To Salvage And Place Inner Tube Assembly. At Present, We Have Four Kinds Of Q Series Overshot Assembly: BQ, NQ, HQ And PQ
High Light

core drill accessories

,

core barrel assemblies
Leave a Message
Product Description

HQ Wire Line Overshot Assembly Core Drilling Tools Machining Casting





Description:

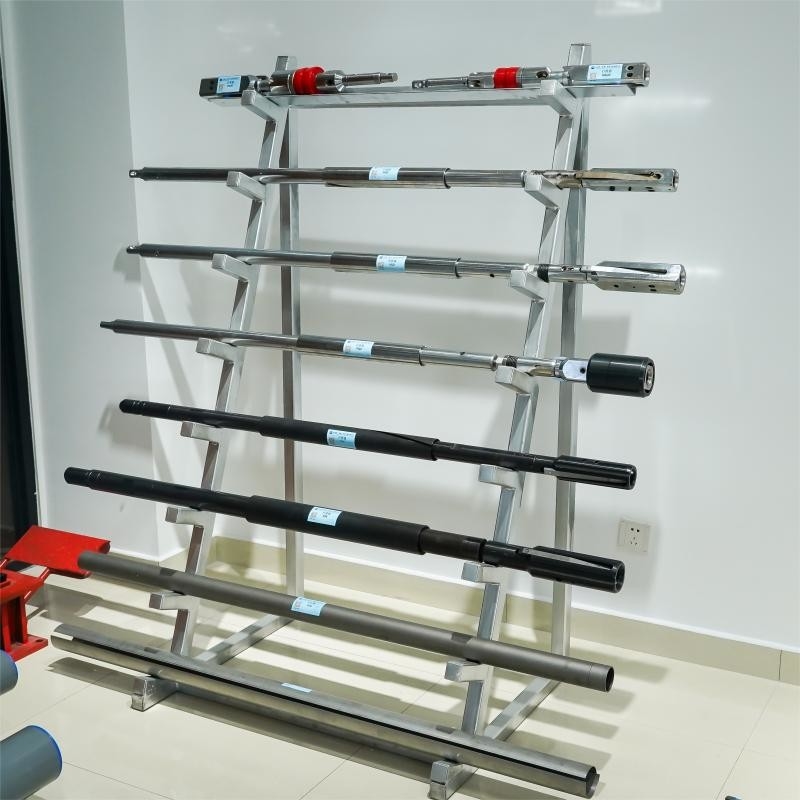

The Q series overshot assembly is a kind of tool specially used to salvage and place inner tube assembly. At present, we have four kinds of Q series overshot assembly: BQ, NQ, HQ and PQ.



Its main components are salvage frame and salvage hook. Regarding those to be exported, the Q series overshot assembly will be packed by export-standard plywood boxes.



Its compact structure enables it to avoid accidental release of core barrel, and it is quite suitable for surface applications.





Specification:



Available size

International Standard:BQ NQ HQ PQ

Chinese Standard: Wireline 56, wireline 59, wireline 75, wireline 95





Technical Parameters:



Model Overshot assembly
Length(mm) Outer diameter (mm) Unit weight(kg)
BQ 1550 42 25
NQ 1903 51.5 28
HQ 1903 51.5 32
PQ 1903 61 35





Overshot Assembly NQ 0

Our Services:



Delivery Time: Based on order quantity, normally it takes 10-15 days .

Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.

After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.





Tags:

core drill accessories

core barrel assemblies

wireline core barrels
