Product Details
Place of Origin: Wuxi
Brand Name: cge
Certification: ISO DCDMA CMS GB
Model Number: P B N H SIZE
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: $140-150
Packaging Details: steel frame
Delivery Time: 12-15 days
Payment Terms: T/T, L/C, Western Union, D/A, D/P, MoneyGram
Supply Ability: 2000-2500 pieces per month
Material: |
Carbon Steel |
Application: |
Mineral Exploration, Geotechnical,environmental Drilling |
Type: |
Drill Pipe,Seamless Steel Pipe |
Standard: |
DCDMA ISO CMS GB |
Processing Type: |
Turning Forging Casting |
Machine Type: |
Drilling Tool,Drilling Equipment |
Alloy Or Not: |
Is Alloy |
Outer Diameter(round): |
PQ BQ NQ HQ 55.6mm 69.9mm 88.9mm 114.3mm |
Material: |
Carbon Steel |
Application: |
Mineral Exploration, Geotechnical,environmental Drilling |
Type: |
Drill Pipe,Seamless Steel Pipe |
Standard: |
DCDMA ISO CMS GB |
Processing Type: |
Turning Forging Casting |
Machine Type: |
Drilling Tool,Drilling Equipment |
Alloy Or Not: |
Is Alloy |
Outer Diameter(round): |
PQ BQ NQ HQ 55.6mm 69.9mm 88.9mm 114.3mm |

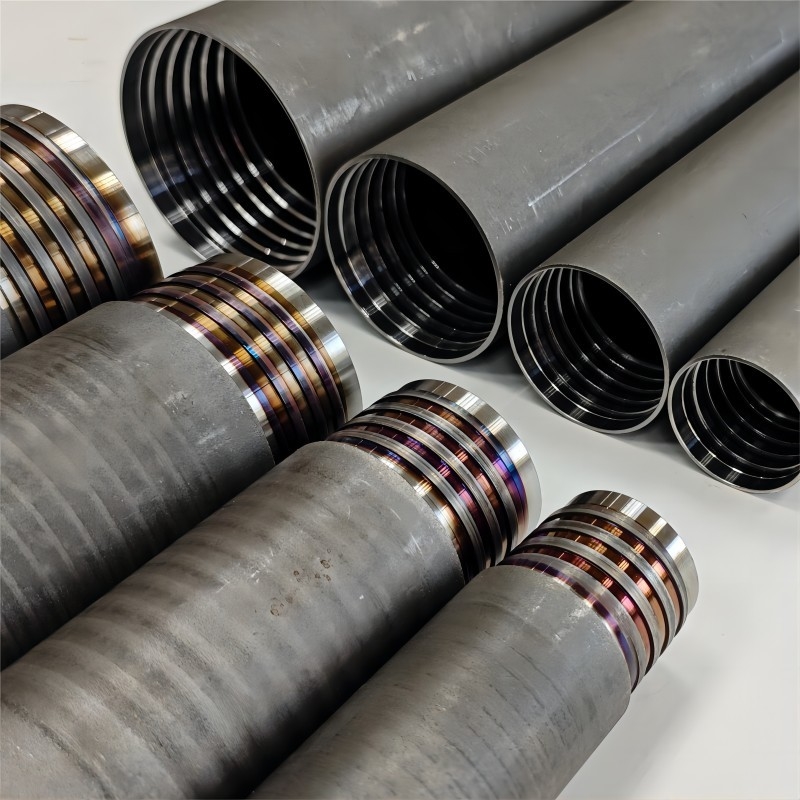

PWL wireline drill rod pipe casing for mineral exploration
Manufactured from Heat Treated High Carbon Alloy Steel featuring heat treated tool joints for enhanced strength and durability. Hardened Gauges – and machined Utilizing CNC technology.
1. The drill rod is made of many thread types to meet different drilling needs.
2. Thread compound is a kind of lubricant used to reduce friction in drilling process..
3. Before drilling, drill rods should be in operation under the minimum recommended make-up torqueto pressure the box and pin. The drilling operation torque should be lighter than make-up torque.
4. Rod grease is used to lubricate the drill rod and the hole which can make a longer tool service life.
5. Drill rods are offered by the bundle.
geological steel pipe-entire length thermal treatment, NC lathe with former cutters
Material:30CrMnSiA or 45MnMoB(A grade), XJY850 or BG850( B grade)
Various thread types of drill rods are available. We will meet your demand for standard, deep, wide-diameter as well as conventional drilling.
|
STANDARD SERIES |
ROD OD (MM) |
ROD ID (MM) |
HOLE SIZE (MM) |
|---|---|---|---|
|
AWL |
44.5 | 34.9 | 48 |
|
AWL (THIN KERF) |
44.7 | 37.5 | 48 |
|
BWL |
55.6 | 46.1 | 60 |
|
BWL (THIN KERF) |
55.8 | 48.4 | 60 |
|
NWL |
69.9 | 60.3 | 75.7 |
|
HWL |
88.9 | 77.8 | 96 |
|
PHD /PWL |
114.3 | 101.6 | 122.6 |
