CGE WUXI BW Geological Drilling Casing Pipe

BW geological casing belongs to the DCDMA standard W-series casing. It is a commonly used specification in geological exploration and core drilling for borehole wall support, hole collapse prevention, and isolation of loose and weak formations. It is compatibly matched with BQ, NQ and HQ wireline core drill rods, featuring a medium caliber and strong versatility.

This casing is available in two structural designs: straight connection with couplings and direct male-female thread connection. A casing shoe can be installed at the bottom of the casing to ensure overall working stability.

It is mainly applied in drilling construction to stabilize the borehole wall, prevent water leakage, hole collapse and cavity formation, and isolate water-bearing layers. It ensures drilling tools can smoothly reach the designed drilling depth for continuous and efficient drilling operations.

Core application:

Shallow to medium-deep hole (≤ 500m) wall protection to prevent collapse of the fourth series, fractured zone, and sandy layer

During drilling, isolate groundwater and quicksand to ensure stable drilling and core extraction

Can be permanently left in the hole or retrieved for reuse, applicable to single or multiple layers of wall protection

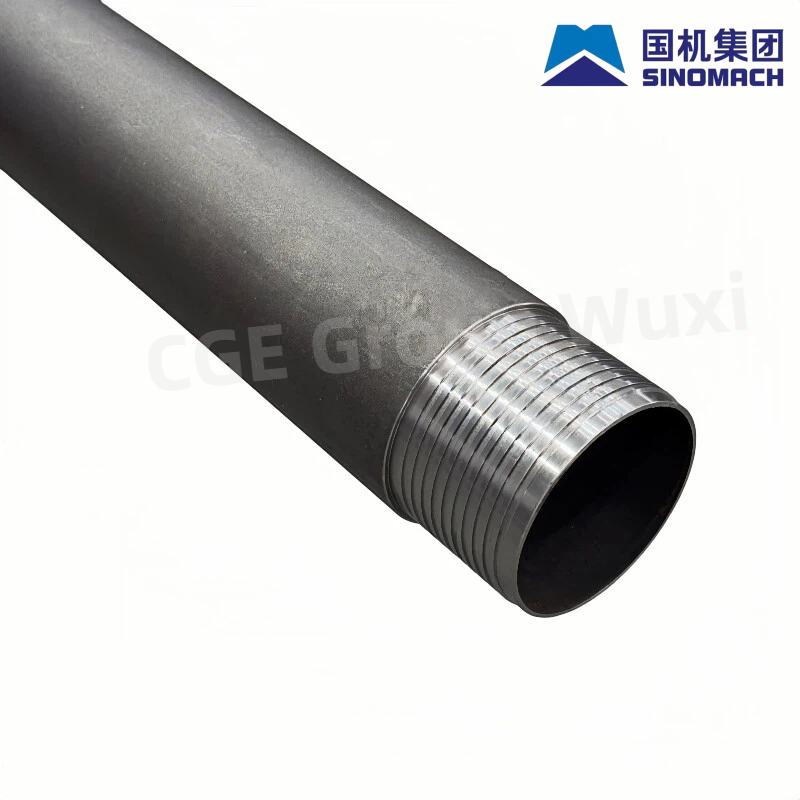

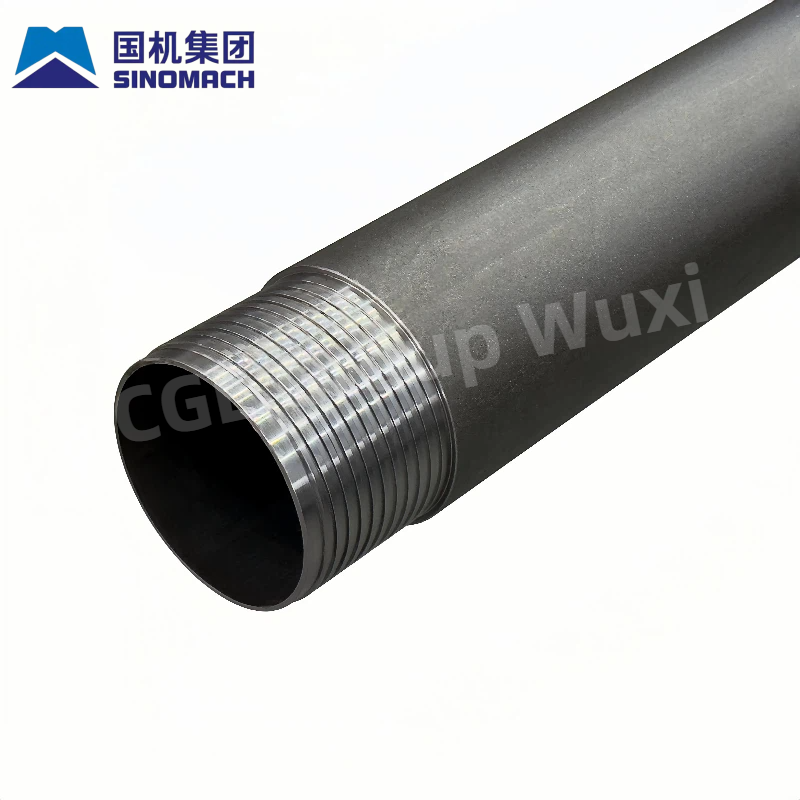

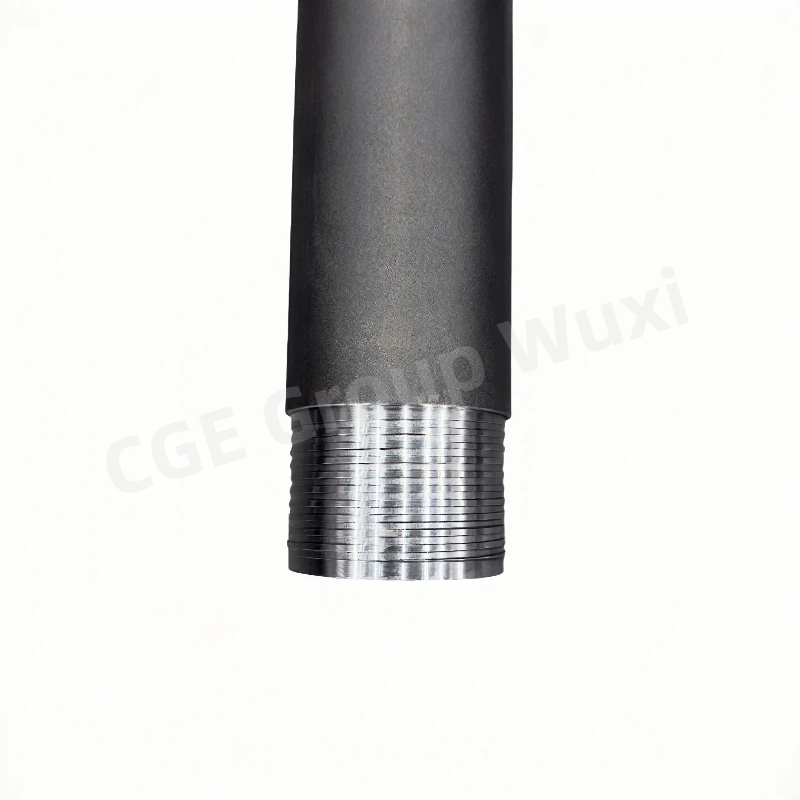

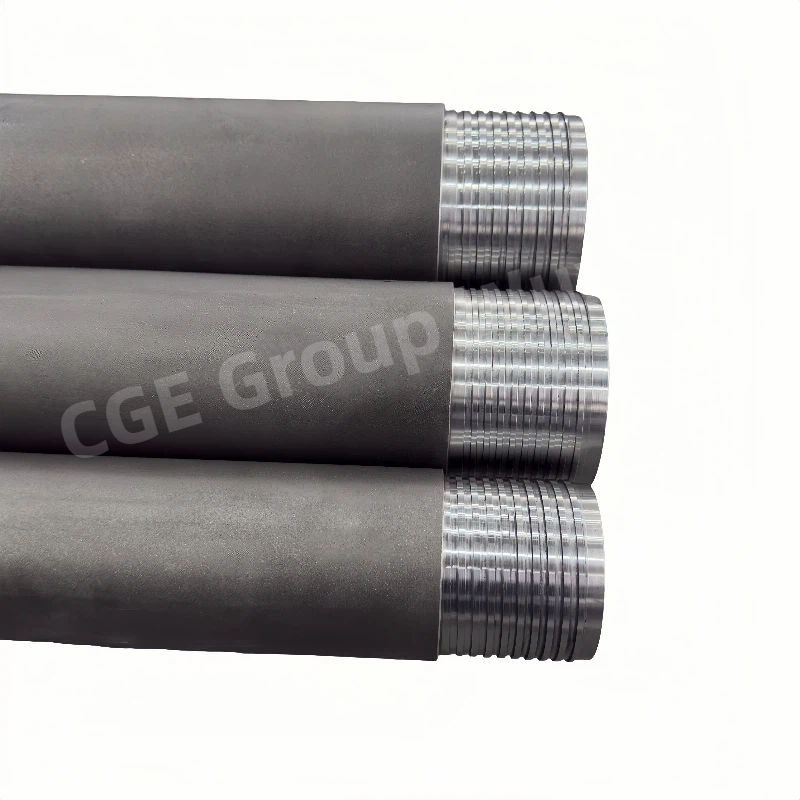

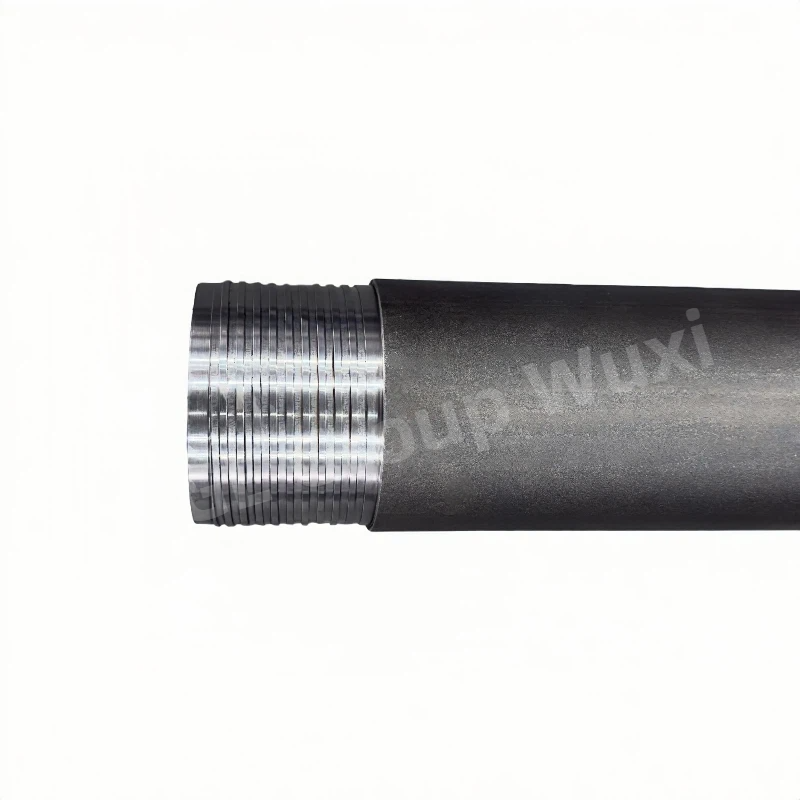

Integral Pin and Box Thread: One end with pin thread and the other with box thread allows direct connection without couplings. Uniform outer diameter with no steps ensures smooth casing running down the hole.

Internal and External Shoulder Locking: Thick-wall structure forms double bearing surfaces with high torsion resistance. It effectively prevents thread slippage and loosening under heavy load and complex downhole conditions.

High Interchangeability: Manufactured in strict accordance with DCDMA standards. Fully interchangeable with global standard BQ, NQ, HQ drill rods, overshots and reamers.

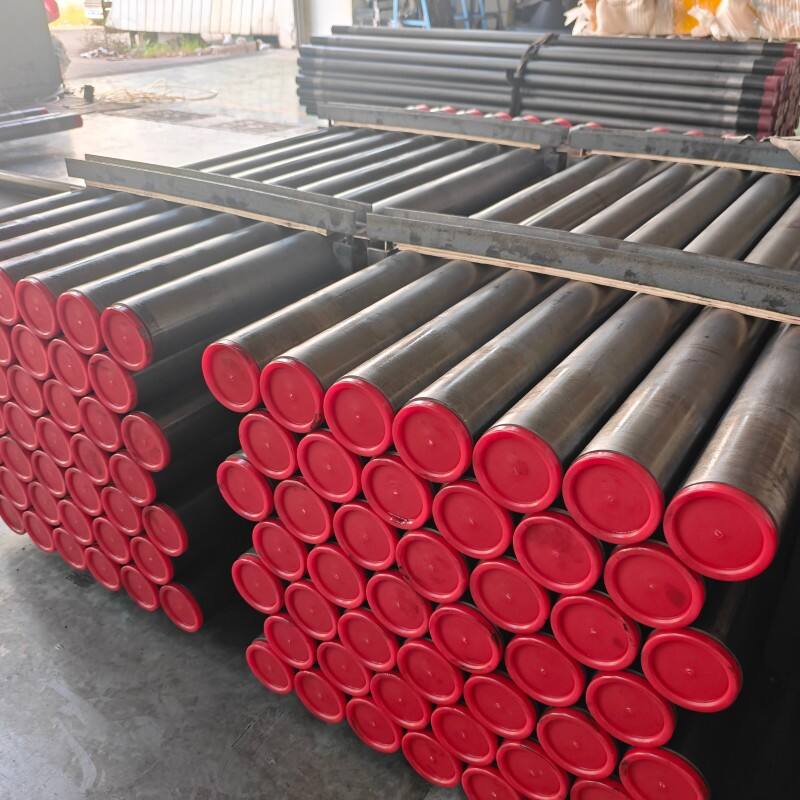

Premium Surface Treatment: Available with black oxide finish, anti-rust paint and red paint. Excellent anti-corrosion and wear resistance, suitable for both clear water and mud drilling.

Efficient Borehole Protection: Effectively prevents collapse of loose and weak formations, reduces downhole accidents and improves borehole completion rate.

High Strength & Durability: Made of forged alloy steel with professional heat treatment. Great torsion resistance, compression resistance and abrasion resistance for longer service life.

Easy Installation: Flush-joint design enables fast direct screwing connection without couplings, lowering downhole resistance and improving running efficiency.

Safe & Reliable: Shoulder locking structure ensures stable connection, effectively avoiding thread loosening in deep holes and complex formations.

Cost-effective & Universal: Medium caliber perfectly matches mainstream BQ drilling systems, delivering outstanding performance with high cost performance.

Q1: Boreholes tend to collapse in loose soil, sand and broken formations, affecting coring work. How to solve it?
A: BW casing is used for borehole wall protection. It supports unstable formations effectively, prevents collapse and falling rocks, and ensures smooth drilling and coring.

Q2: Conventional casing with couplings has outer steps, causing high running resistance and pipe sticking.
A: This is flush joint casing without external couplings. Uniform outer diameter reduces friction, making running and pulling easier and improving working efficiency.

Q3: Thread connections of ordinary casing get loose easily under vibration and torque during drilling.
A: It adopts standard W thread with internal and external shoulder locking design. Strong torsion resistance ensures tight connection and avoids disconnection during operation.

Q4: Products from different manufacturers have inconsistent sizes, leading to poor compatibility with BQ drilling tools.
A: Manufactured in full compliance with DCDMA standards. Uniform dimensions and threads enable perfect interchangeability with BQ wireline rods, overshots and reamers.

Q5: Common casing gets rusted and worn quickly in water and mud, resulting in short service life.
A: Made of high-strength alloy steel with anti-rust surface treatment. It features good corrosion and abrasion resistance, suitable for long-term use in harsh downhole conditions.

Q6: Hard to find cost-effective casing for medium and small diameter geological exploration projects?
A: As a standard specification matching BQ drilling system, BW casing features moderate size and high cost performance, ideal for shallow and medium-depth geological and mining drilling.
