HA Wireline Core Drill Rod with Upset Ends
HA series integral upset drill rod is universal high-strength drilling pipe for medium-shallow geological drilling, engineering investigation and water well drilling. Adopting one-piece hot forging inner upset forming process and universal industrial technical description, it avoids patent naming and structural copy infringement risks of similar products. It is suitable for drilling operation within 1400m depth, widely used in engineering geological survey, shallow mine coring, deep water well drilling, rock-soil drilling and other construction scenarios.
Certificates: ISO, RoHS, MSDS
Material: ZT950
Available Lengths: 1m, 1.5m, 3m
Recommended Drilling Depth: 1500m
Description
HA series integral upset drill rod is universal high-strength drilling pipe for medium-shallow geological drilling, engineering investigation and water well drilling. Adopting one-piece hot forging inner upset forming process and universal industrial technical description, it avoids patent naming and structural copy infringement risks of similar products. It is suitable for drilling operation within 1400m depth, widely used in engineering geological survey, shallow mine coring, deep water well drilling, rock-soil drilling and other construction scenarios.
Specifications
| Basic rod specification: | Outer diameter 114.3mm, wall thickness 5.5mm |
| Upset section dimension: | Upset inner diameter 101mm, upset outer diameter 115mm |
| Recommended drilling depth: | Maximum recommended drilling depth 1400m |
| Main material: | ZT950 high-yield seamless steel pipe for drilling, with excellent mechanical properties, suitable for conventional load drilling conditions of medium-shallow strata |
| Standard single rod length: | 1.5m / 2m / 3m, customized special lengths available on request |
Product features

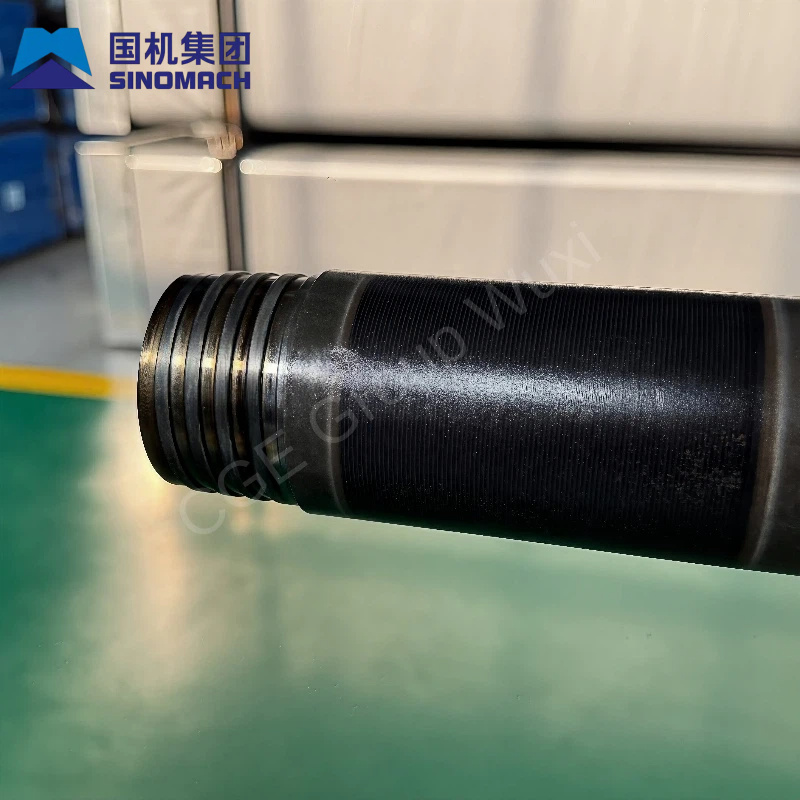

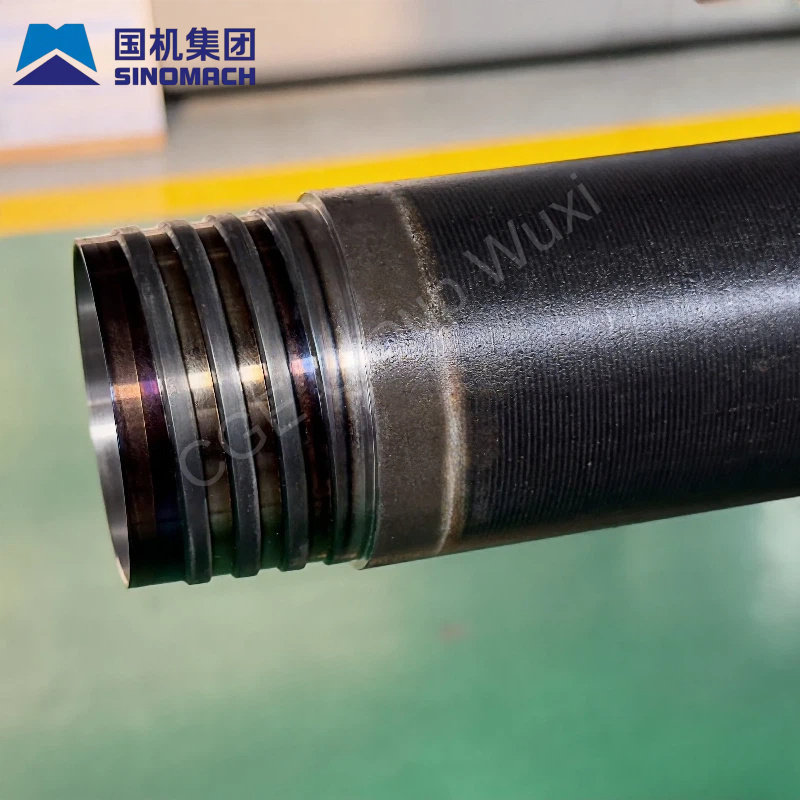

1. Integrated Monolithic Upset Structure
The rod body and connecting end are integrally hot forged and upset without welding splicing. The upset end is locally thickened and reinforced with smooth and uniform wall thickness transition, eliminating stress concentration and weld cracking defects of traditional welded drill rods. The flat inner wall ensures smooth drilling fluid flow and lower disassembly resistance of matched drilling tools.
2. ZT950 High-grade Special Base Material
Made of quenched and tempered ZT950 alloy seamless steel with yield strength ≥950MPa. Its torsion resistance, compression resistance, impact resistance and fatigue resistance are far better than ordinary geological drilling pipes. It is anti-bending, anti-distortion and anti-fracture during 1400m medium-shallow drilling, adapting to long-term construction in weathered rock, sandstone and ordinary hard rock complex strata.

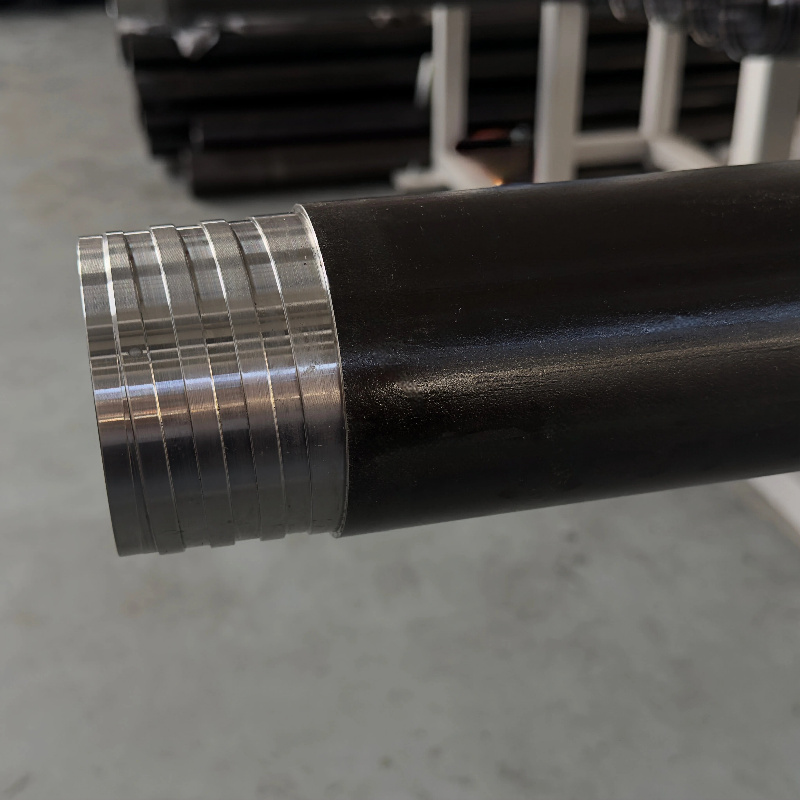

3. Precise Tolerance & Stable Operation
Strict precision machining tolerance for upset section perfectly matches supporting locking threads, with tight joint fit and excellent sealing performance, no leakage and pressure relief of high-pressure flushing fluid. Optimized gradient wall thickness structure disperses alternating stress of rod body, ensures stable torque transmission at rated 1400m depth, and reduces thread wear, galling and uncoupling faults.
4. Flexible Selection of Multiple Lengths
1.5m short rods are applicable for mine tunnels and confined construction sites; 2m and 3m long rods match large and medium-sized surface drilling rigs, reduce drill rod joint times, shorten assembly time, improve overall drilling efficiency and cut joint consumption and maintenance cost.
