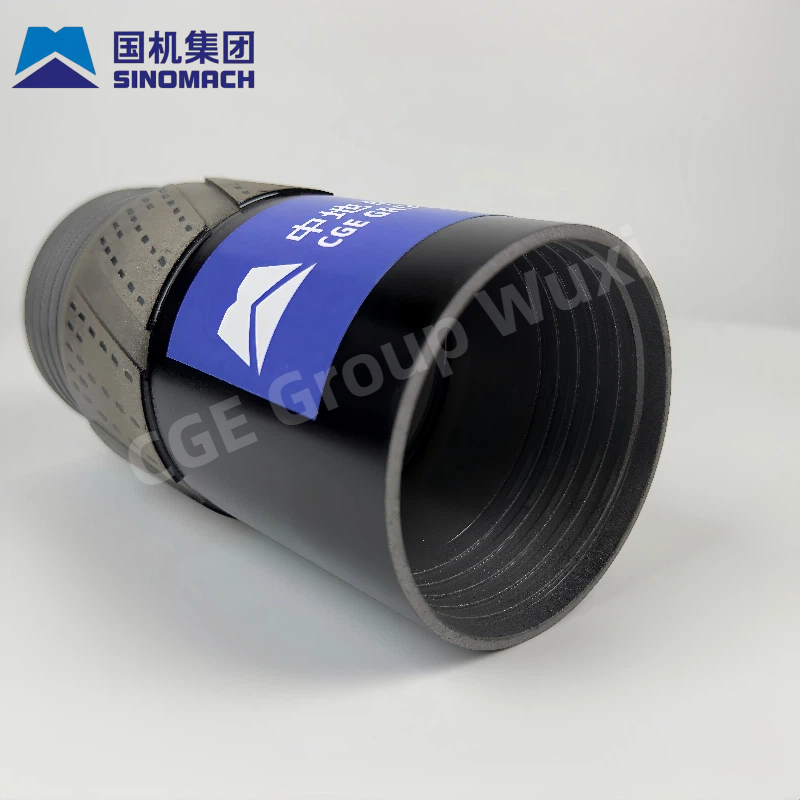

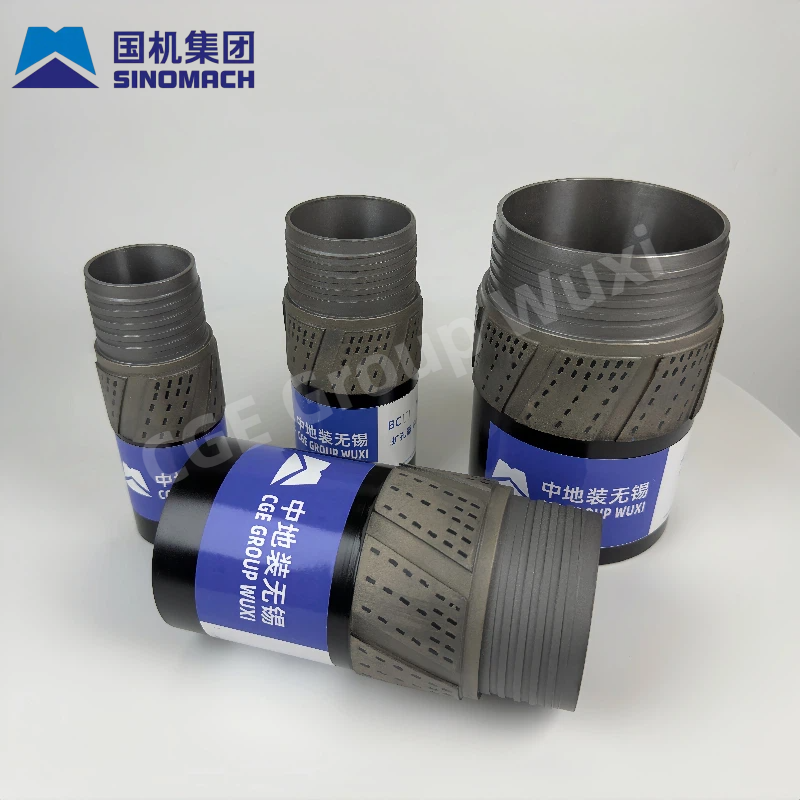

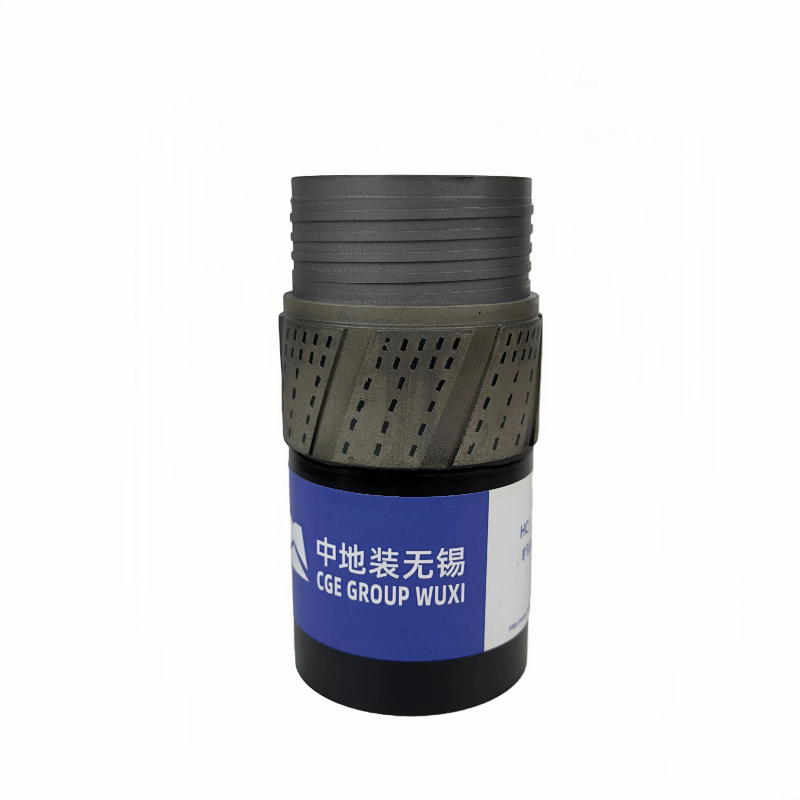

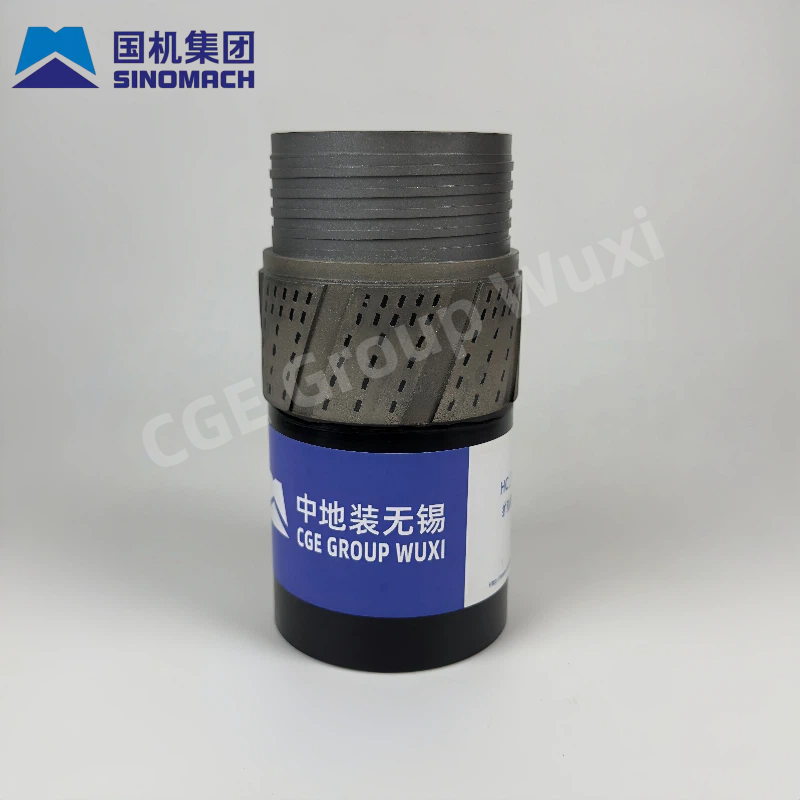

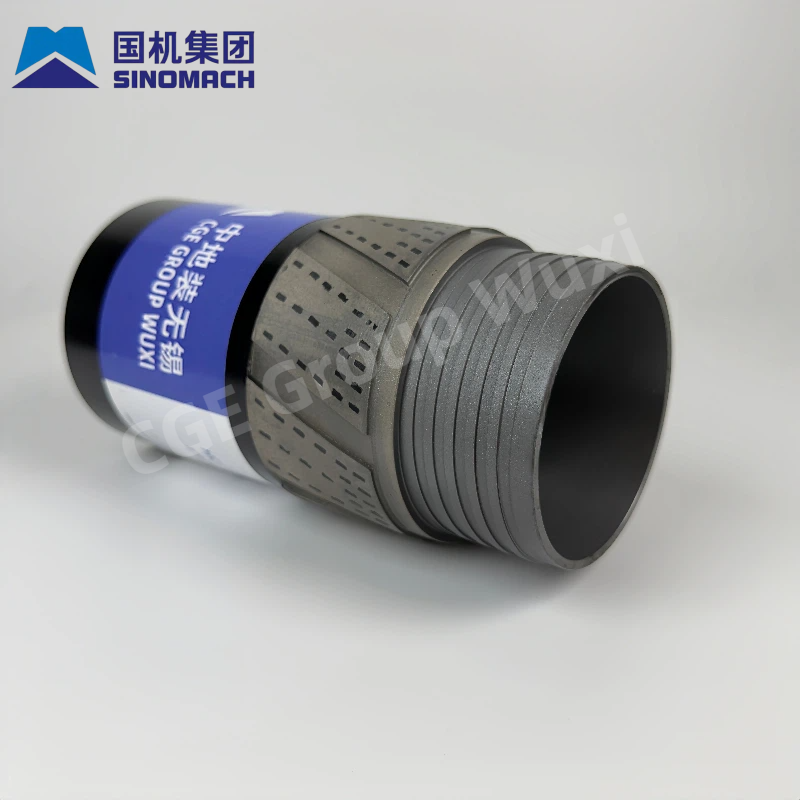

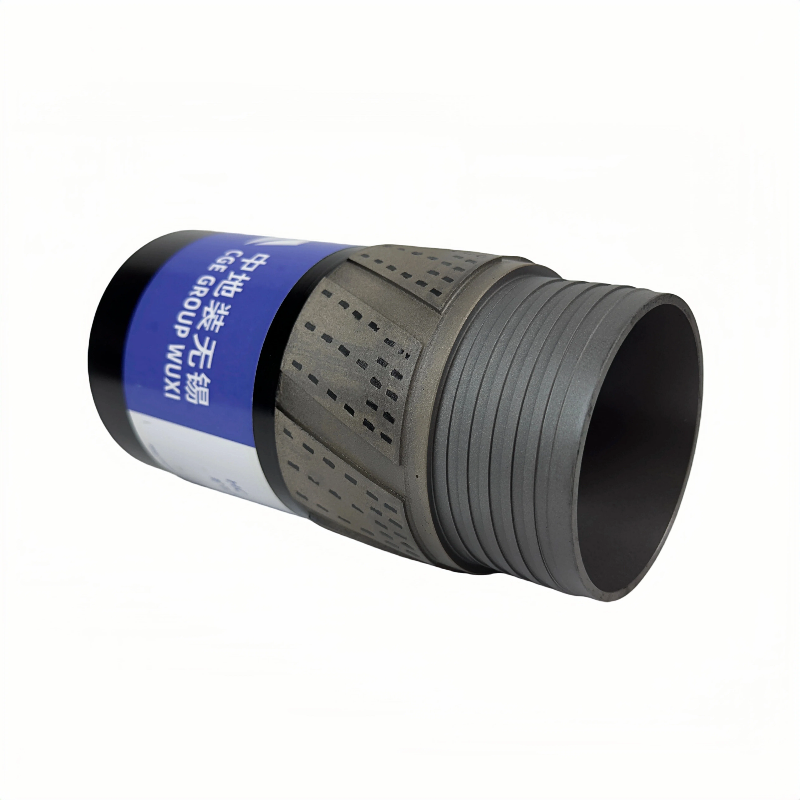

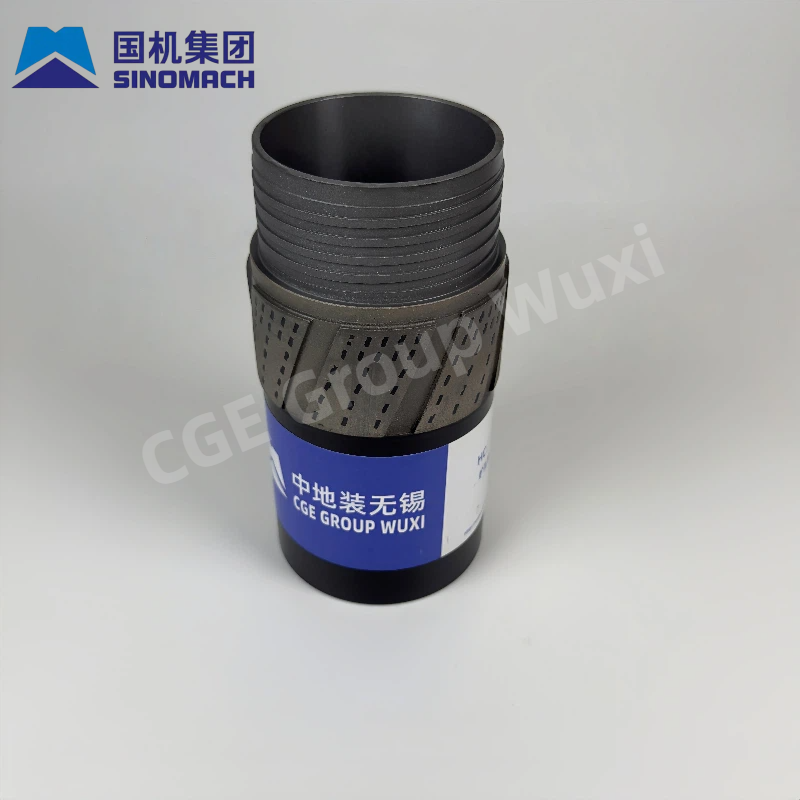

HQ Diamond Core Reamer OD 95.9mm Q Series Reaming Shell
HQ reaming shell is a medium-large diameter standard diamond reaming tool for the Q series rope core drilling. It is installed between the HQ drill bit and the core outer pipe. Its main functions are to maintain the diameter, align the core, protect the pipe, and stabilize the borehole wall. It is specifically designed for medium and deep - deep holes (≤1800m), medium-hard - hard rocks, and complex formations. It reduces the wear of the outer pipe and shares the radial wear with the drill bit.
Compatible drilling tools: HQ rope core double pipe, HQ drill rod, HQ drill bit
English Name:HQ Reaming Shell / HQ Diamond Reamer / HWL Reamer
Material: Diamond
Outer diameter: 96.09 millimeters
Minimum order quantity: 1 piece
Description
HQ reaming shell is a medium-large diameter standard diamond reaming tool for the Q series rope core drilling. It is installed between the HQ drill bit and the core outer pipe. Its main functions are to maintain the diameter, align the core, protect the pipe, and stabilize the borehole wall. It is specially designed for medium and deep - deep holes (≤1800m), medium-hard - hard rocks, and complex formations. It is widely used in metal mineral exploration, hydrology and geothermal exploration, and deep geological exploration. It is the main supporting tool for deep core drilling.
Matching drilling tools: HQ rope core dual pipes, HQ drill rods, HQ drill bits
Material: Diamond
Outer diameter: 96.09 mm
Minimum order quantity: 1 piece
Specifications
| Size | Bit O.D.Hole Diameter（mm） | Bit I.D.Core Diameter (mm) | Reaming Shell O.D. (mm) |
| BQ | 58.9 | 36.4 | 59.95 |
| BQ3 | 58.9 | 33.53 | 59.95 |
| NQ | 75.3 | 47.6 | 75.7 |
| NQ3/NQTT | 75.3 | 45.1 | 75.7 |
| HQ | 95.6 | 63.5 | 96.09 |
| HQ3/HQTT | 95.6 | 61.1 | 96.09 |
| PQ | 122 | 85 | 122.65 |
| PQ3 | 122 | 83 | 122.65 |
Structure and Materials
1. High-strength Matrix: High-quality alloy steel forged (such as 40CrNiMo), resistant to torsion, vibration, and deformation, suitable for deep holes with high loads.
2. High-maintenance Mat: Carbon tungsten hard alloy with a high-maintenance formula, with a temperature resistance of 1100℃, suitable for medium-hard to hard rocks and strong grinding formations.
3. Diamond Working Layer (Optional):
* Inlaid Natural Diamond: For medium-hard rocks and intact formations, it offers fast advancement, smooth chip removal, and moderate cost.
* Inlaid Diamond: For hard rocks and fractured / grinding formations, it has a long lifespan, excellent stability, and is the preferred choice for deep holes.
* PCD Composite Sheet: For strong grinding and extremely hard formations, it is resistant to impact and has extremely strong wear resistance, with a lifespan increase of 40%+.
* Optimized Spiral Water Channels: 3–4 spiral edges + guiding slope + cutting spiral arrangement, ensuring smooth water flow, reducing resistance by 30%+, fast chip removal, and preventing core blockage.
Core Advantages
1. Stable Deep Hole Diameter Maintenance: Maintains a φ96.09mm hole diameter stably, preventing shrinkage of the hole diameter / getting stuck, with sufficient gap for changing drill bits, and performing exceptionally well in deep holes (1500–1800m).
2. Strong Centering and Anti-Slip: Large-sized three-pad design reduces drill rig vibration and oscillation, suitable for easily deviated formations, with precise hole deviation control.
3. Efficient Core Extraction: φ61mm standard core, with high core extraction rate in intact formations and low risk of core blockage; highly adaptable to fractured formations.
4. Ultra-long Lifespan and Low Cost: Single drill string advances 3000–3500 meters, with pure drilling time of 250 hours +, with a leading lifespan in hard / grinding formations.
5. Protecting Drill Rig: Shares radial wear, extends the lifespan of the outer pipe and drill bit, and reduces the overall drilling cost for deep holes.
