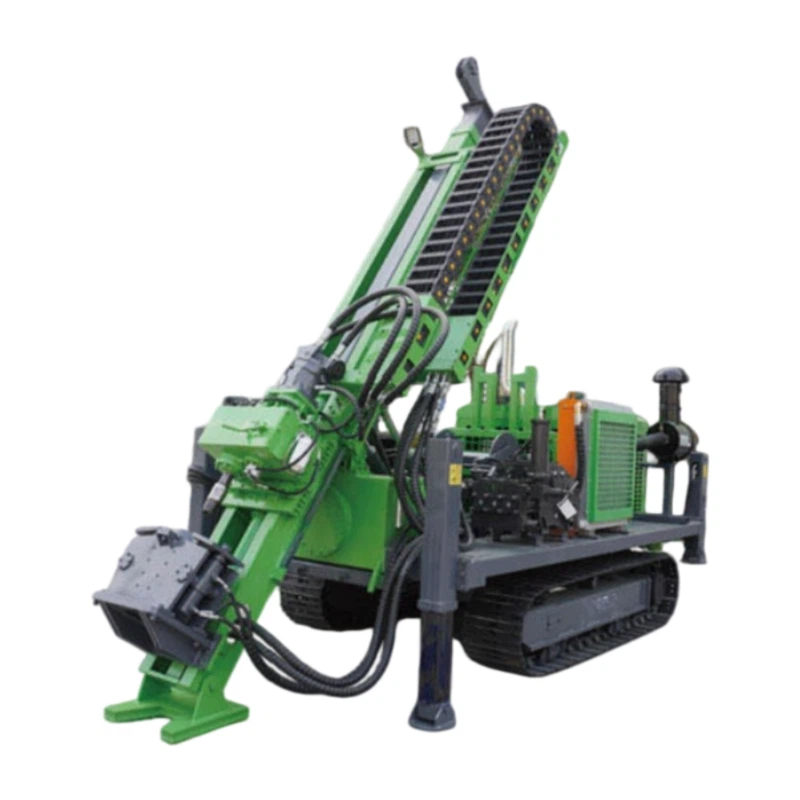

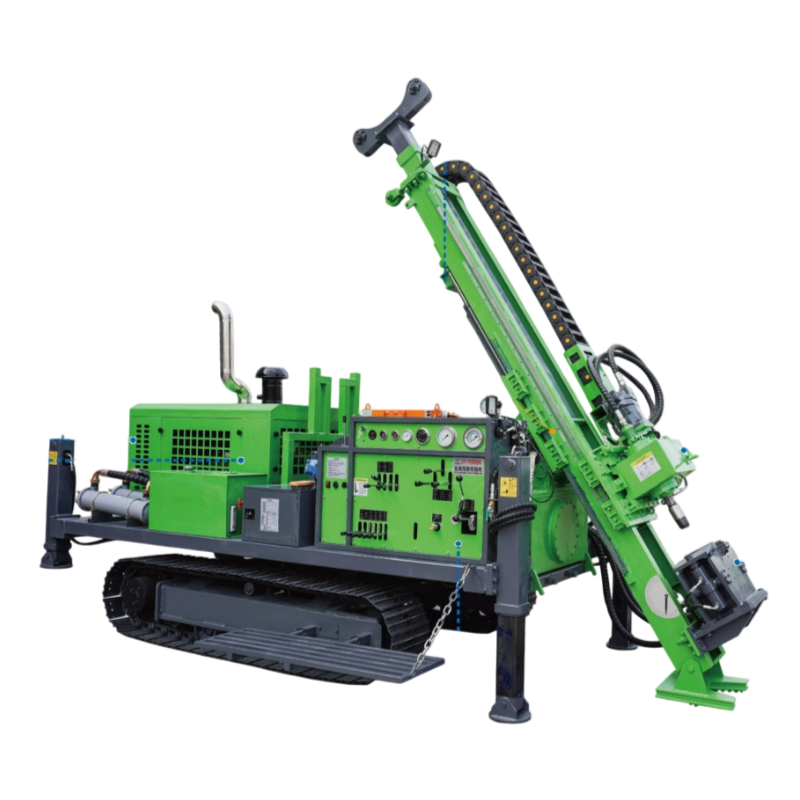

JY-1000B Steel Crawler Full Hydraulic Wireline Core Drilling Rig
JY-1000B is a long-stroke, deep-hole type steel crawler full-hydraulic core extraction drilling rig that has been upgraded based on JY-1000A. Its core has been upgraded to a 3-meter power head stroke, allowing it to directly use 3-meter drill rods. It is mainly used for deep exploration at kilometer levels and efficient deep-hole operations. It is the main model for medium and deep-hole geological drilling.
Borehole inclination: 45°–90° (cylinder lifting + 1.2m overall sliding of the mast)
Drill pipe compatibility: BQ/NQ/HQ/BTW/NTW/HTW; standard 3-meter rope core drill pipe
Weight: 6300*2100*2800mm; 8t
Description
JY-1000B series crawler type full hydraulic core driling rig is a new type of full hydraulic core driling rigdesigned by our company after careful optimization and innovative design based on extensive reference to advancedtechnologies of similar driling rigs at home and abroad. This driling rig is for diamond wireline coring driling process, withexcellent performance, high driling speed, stable operation, easy operation, safe and reliable, and highly integrated design,making the whole machine compact and functional, with low failure rate and simple maintenance, which significantly improvesdrilling efficiency and drilling quality.
1. The drilling rig is driven by a fully hydraulic system.
2. The drilling rig can achieve mechanical two-speed operation with continuous speed adjustment, and the maximum torque can reach 2600 N.m.
3. It is driven by an axial piston pump and a slanted shaft piston motor.
4. It is equipped with a lateral translation mechanism for the power head, and the mast can be lifted and lowered by an oil cylinder and slide as a whole, enabling drilling within a range of 45-90°.
Specifications
| Rig type | JY-1000B |
| Weight | 8000kg |
| Dimension (transport) | 6300*2100*2800mm |
| Dimension (working) | 4200*3600*8100mm |
| Drilling angle | 45-90° |
| Drilling depth BTW/BQ | 1200m |
| Drilling depth NTW/NQ | 1000m |
| Drilling depth HTW/HQ | 800m |
| Drill head lifting force | 360kN |
| Drill head feeding force | 180kN |
| Rotary speed RPM | 0-1400pm |
| Max. Torque | 2600N.m |
| Drill head feed stroke | 3500mm |
| Drill mast slide stroke | 1200mm |
| Hydraulic pumps |
Primary pump: 115ml/r.32MPa Auxiliary pump: 80ml/r.25MPa |
| Hydraulic cooling system | Water cooling+Air cooling |
| Power unit |
129kW/2200 Weichai 6-cylinder engine |
| Hydraulic winch capacity | 1000m |
| Mechanical winch capacity | 24kN |
| Winch lifting speed | 110m/min |
| Mud pump | BW100/BW160（Optionai） |
| Crawler chassis | 8 Ton Steel Track, 400mm × 43 Links |
| Crawler climbing angle | 25° |
| Crawler walking speed | 2-3km/h |
Steel track and structural design features
1. Power configuration: Wuxi six-cylinder turbocharged diesel engine (129kW/2200rpm), highly adaptable to high-altitude and high-temperature environments

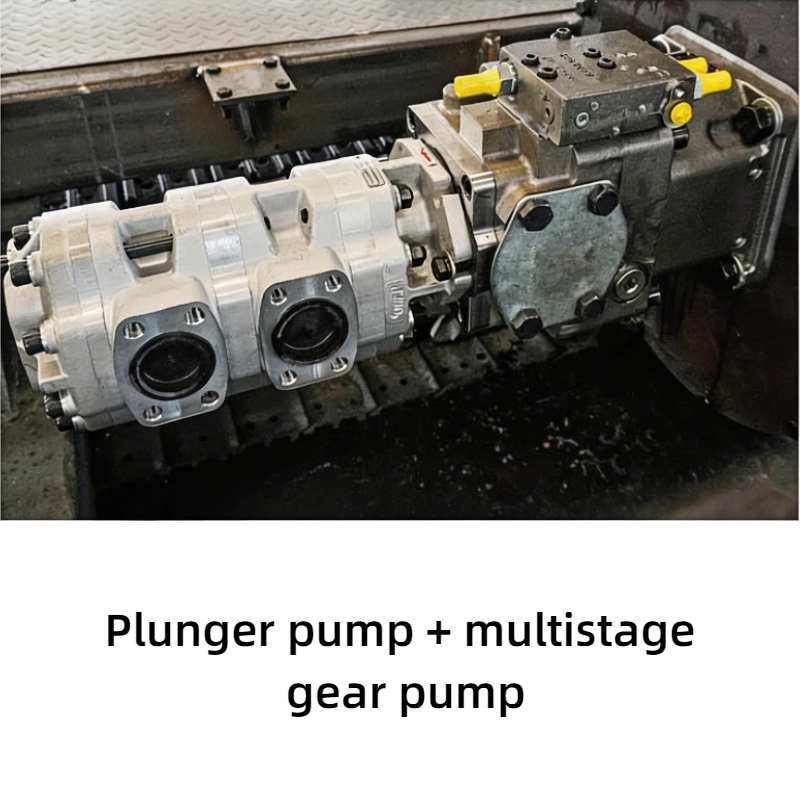

2. Driving mode: Full hydraulic (axial piston main pump + triple gear pump), load-sensitive control, energy-saving, good thermal stability

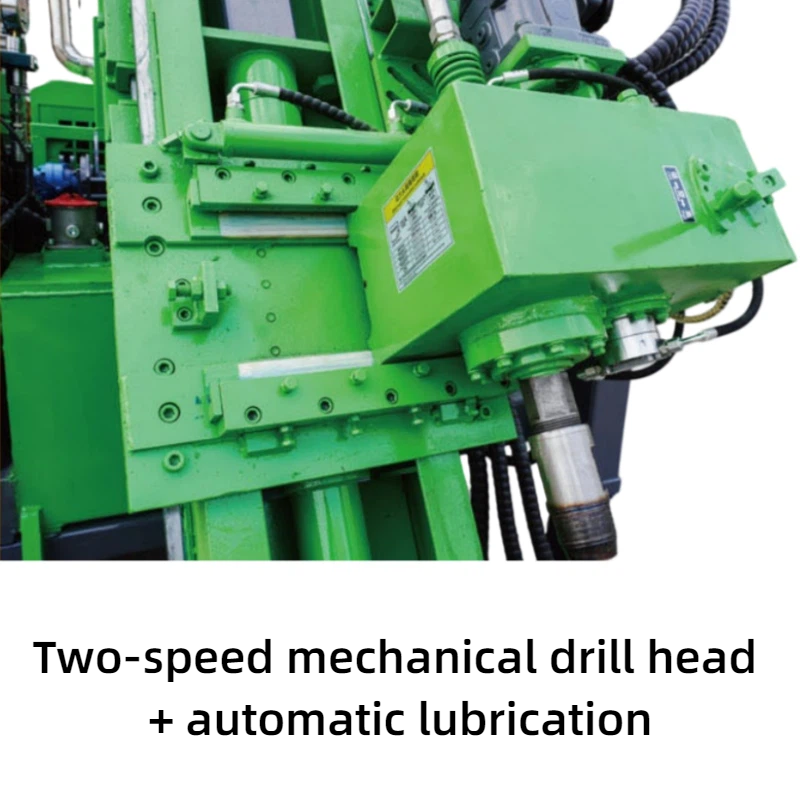

3. Power head: Mechanical two-speed + continuous speed regulation, maximum torque 2600N·m, speed range 0–1000r/min; slanted shaft piston motor, large torque, long service life
4. Drilling / lifting force: Drilling 150kN / lifting 180kN, suitable for heavy-load operations with 3-meter drill pipe
5. Cooling system: Water cooling + air cooling dual system, continuous operation at high temperatures without pressure relief

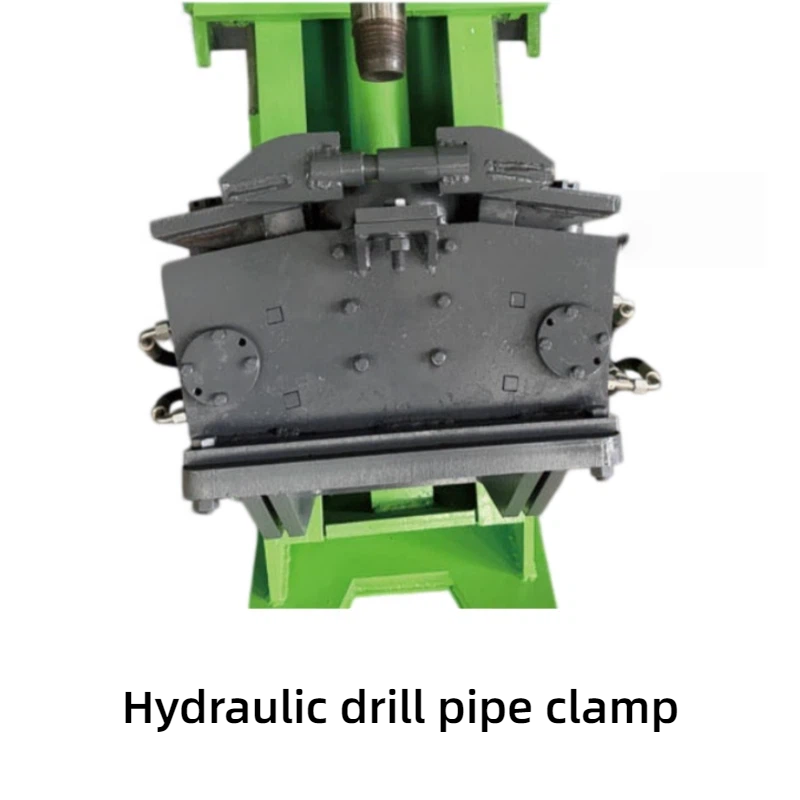

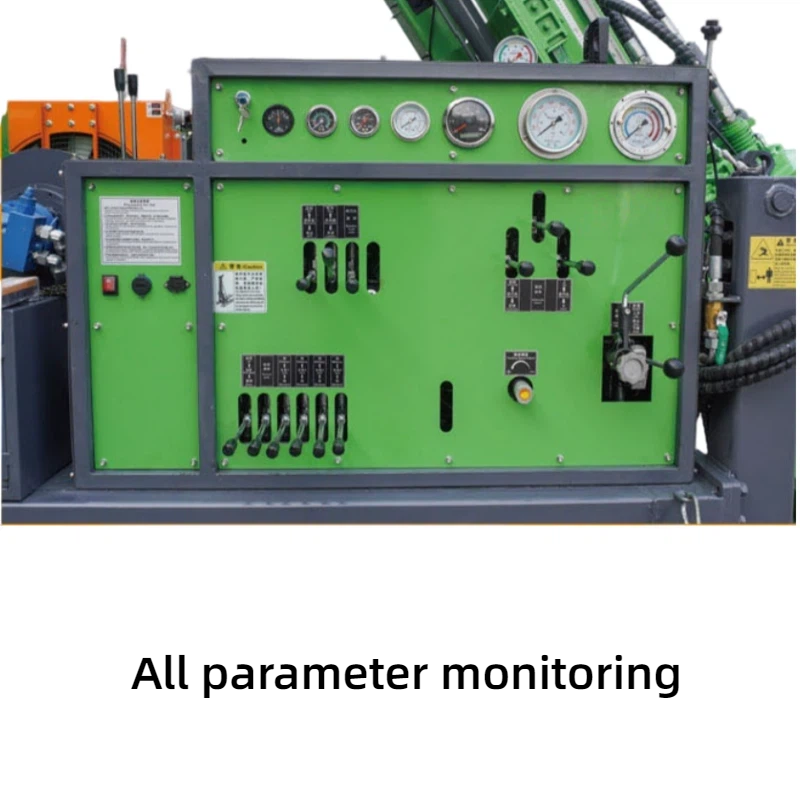

6. Control and clamping: Centralized control with three handles; hydraulic automatic unclamping + horse-shoe clamping device, easy operation and safe
7. Mud pump: Standardized BW160 three-cylinder mud pump, meets the needs of deep hole circulation and wall protection
8. 3-meter stroke, efficiency doubled: Use 3-meter drill pipe directly, drilling time halved, significant improvement in deep hole construction efficiency
9. Full hydraulic control, labor-saving and safe: Load-sensitive system + automatic unclamping, low labor intensity, high safety
10. Heavy-duty, long service life: Heavy-duty structure + dual system cooling, no worries about continuous operation in harsh conditions
Application scenarios
* Solid mineral exploration: 1000-meter deep core sampling for gold, copper, lead-zinc, iron, etc. with high core integrity rate
* Mountainous / complex terrain: Steel tracks reach directly, solving the problem that wheeled / rubber-tired drilling rigs cannot enter
* Engineering geological survey: Geological profile drilling for roads, railways, bridges, and infrastructure projects
* Hydrology / geothermal / shallow oil and gas: Groundwater, geothermal, shallow oil and gas exploration and well drilling
* Dams / tunnel projects: Grouting holes, ventilation holes, drainage holes construction
