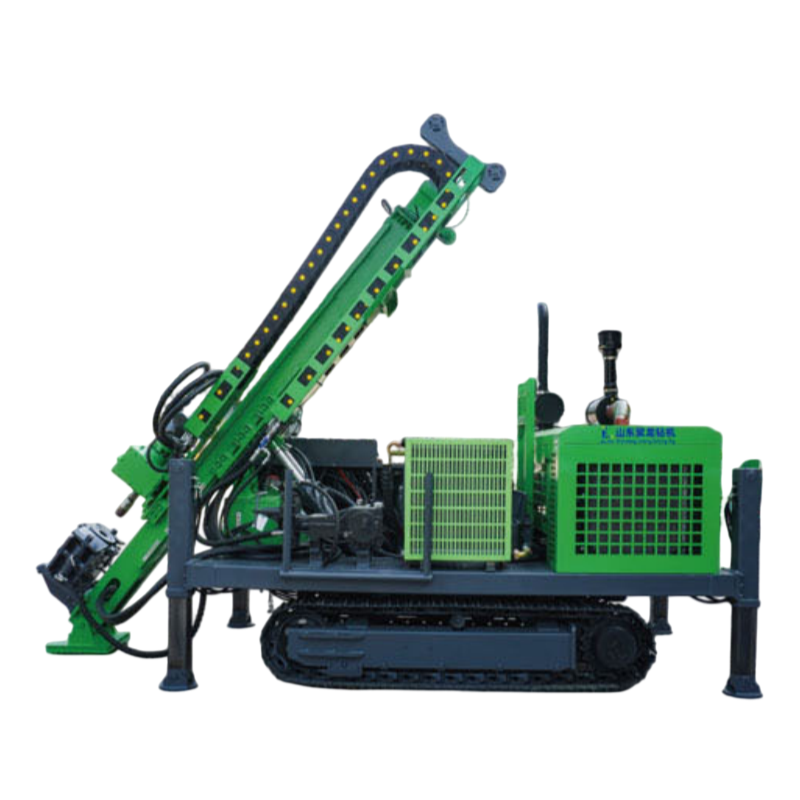

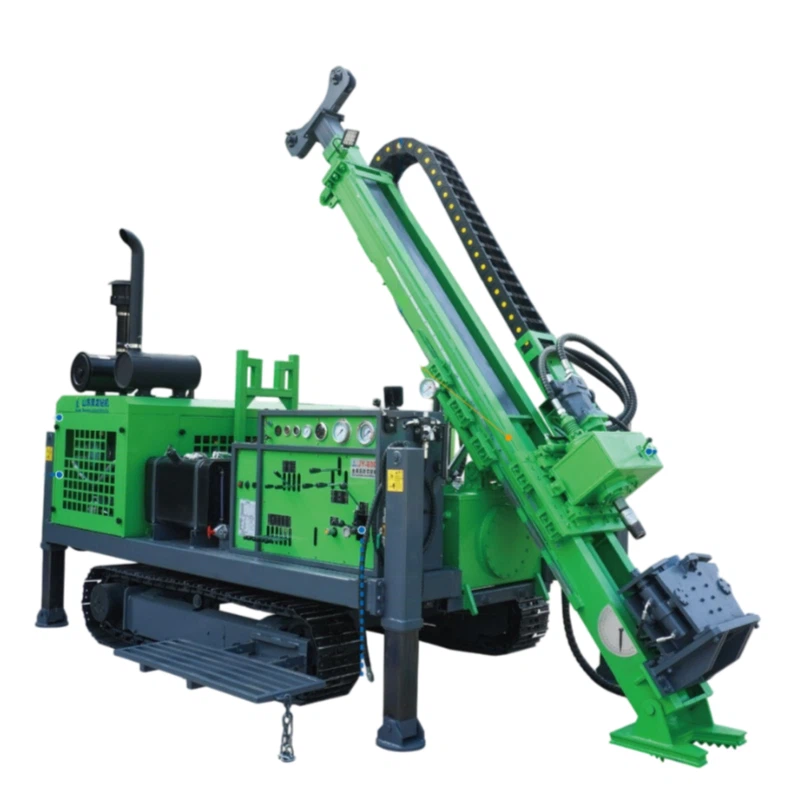

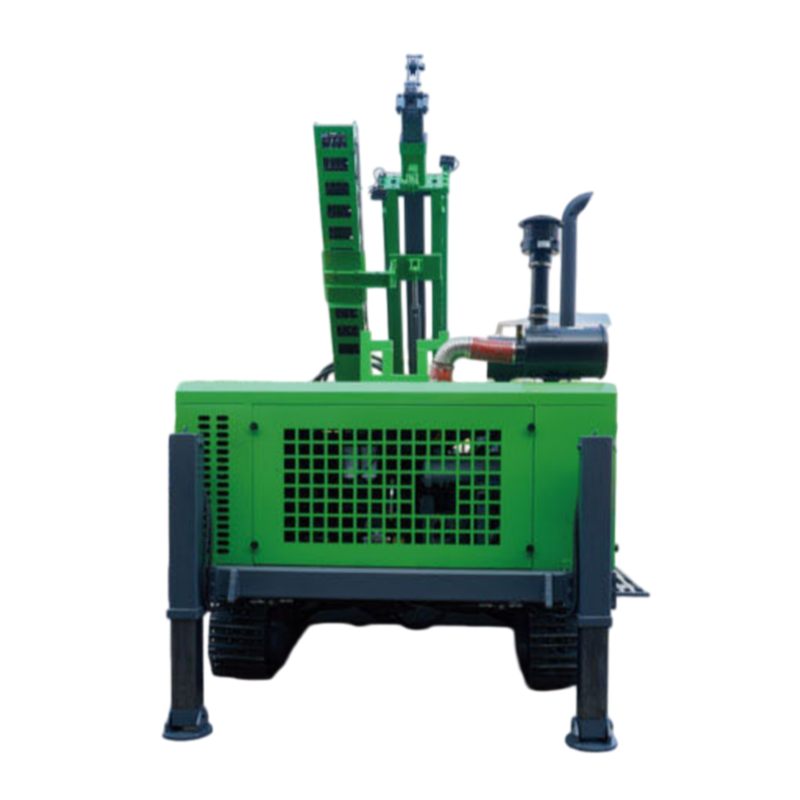

JY-800 Steel Crawler Full Hydraulic Core Drilling Rig
JY-800 is an 800-1000-meter-level steel-tyred fully-hydraulic core drilling rig with a rope core. It is designed for medium and deep-hole solid mineral exploration, engineering geological surveying, and hydrological/geothermal drilling. With strong traversing ability of steel tyres, high torque and stability, and full-hydraulic efficiency and ease of operation, it is the main model for deep-hole exploration.
Drill pipe compatibility: Full range including BQ/NQ/HQ/BTW/NTW/HTW, standard configuration is 1.5m drill pipe.
Borehole inclination: 45° – 90° (Hydraulic cylinder lifts the mast + 1.2m overall sliding)
Overall machine weight: 4400*2200*2800mm; approximately 6.5 tons
MOQ：1PCS
Description
JY-800 series crawler-type fully hydraulic core drilling rig is a newly developed fully hydraulic core drilling machine that has been meticulously optimized and innovatively designed. This drilling machine is specifically tailored for the diamond rope core drilling process and boasts outstanding performance. It features high rotational speed, smooth operation, easy operation and safety, and reliability. Its integrated design is compact, well-structured, fully functional, and simple to maintain, significantly enhancing drilling efficiency and hole quality.
1. The drilling rig is driven by a fully hydraulic system.

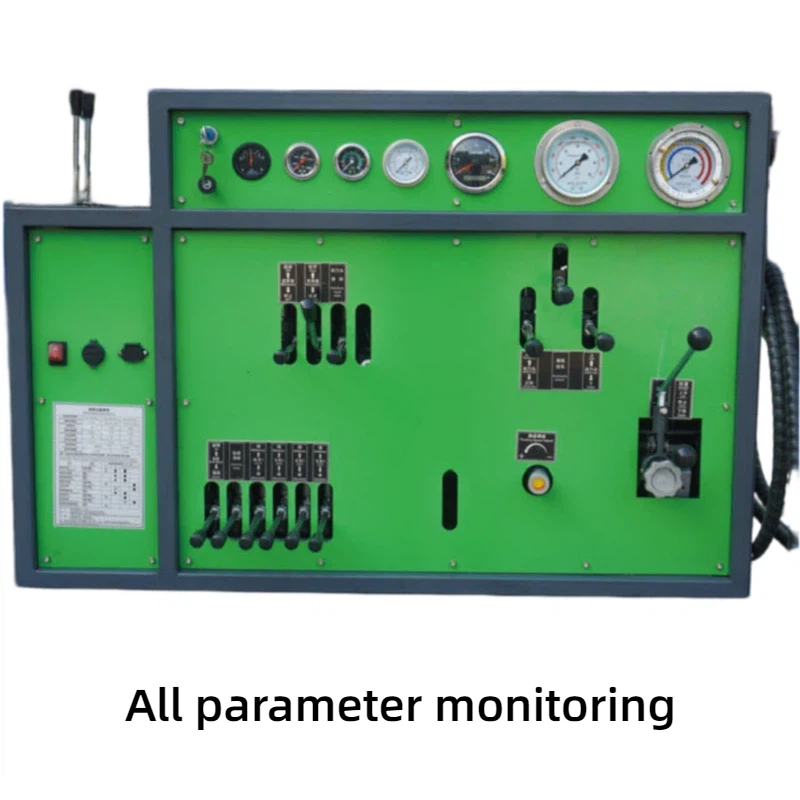

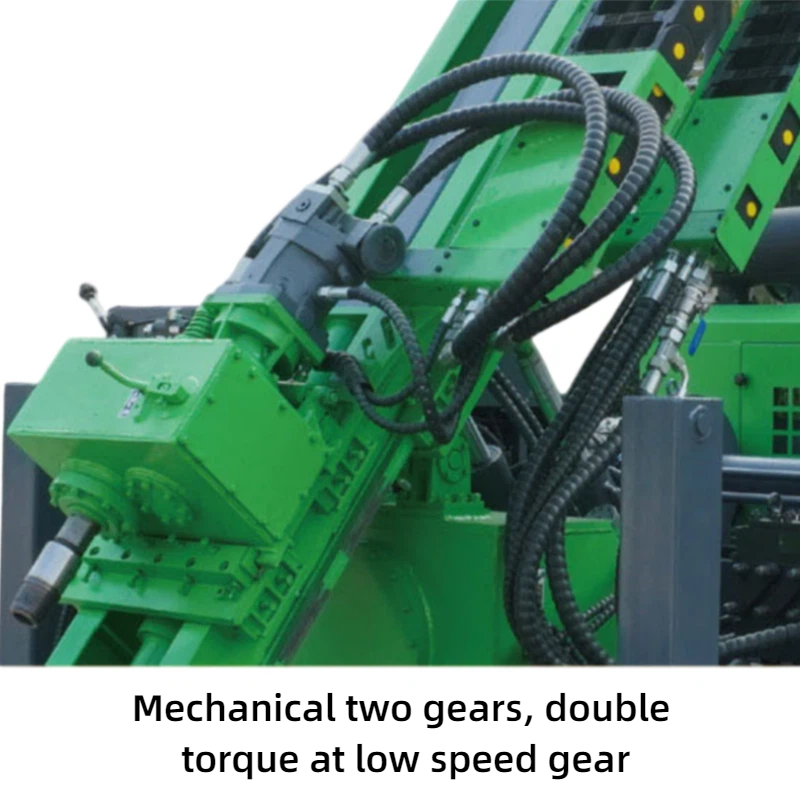

2. The drilling rig can achieve mechanical two-speed operation with continuous speed adjustment, and the maximum torque can reach 1800 N.m.

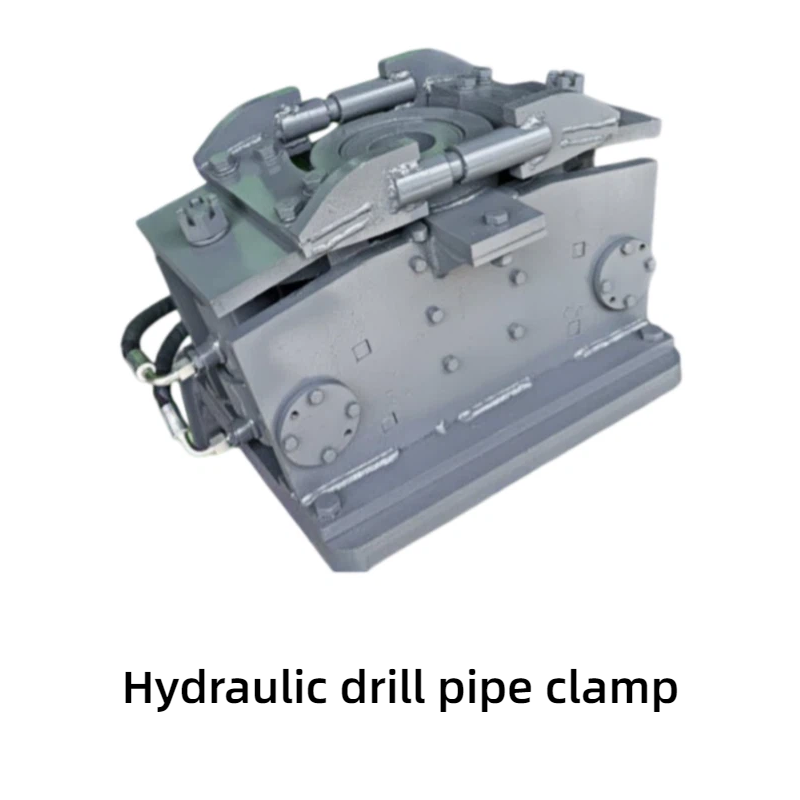

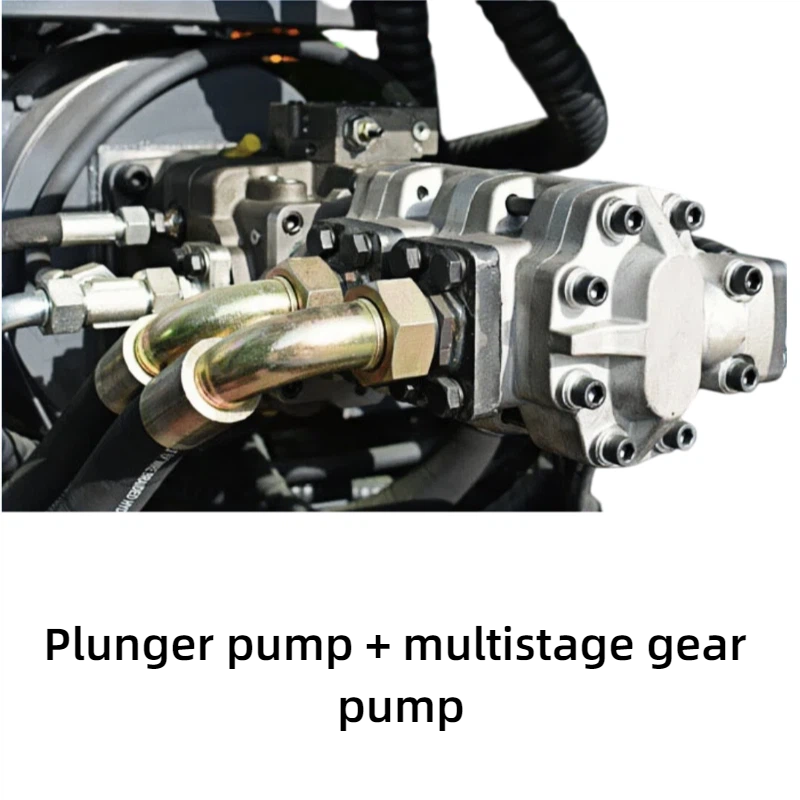

3. It is driven by an axial piston pump and a slanted shaft piston motor.
4. It is equipped with a lateral translation mechanism for the power head, and the mast can be raised and lowered by an oil cylinder and slide as a whole, enabling drilling within a range of 45-90°.
Specifications
| Rig type | JY-800 |
| Weight | 6500kg |
| Dimension (transport) | 4400*2200*2800m |
| Dimension (working) | 4000*2700*6500m |
| Drilling angle | 45-90° |
| Drilling depth BTW/BQ | 1000m |
| Drilling depth NTW/NQ | 800m |
| Drilling depth HTW/HQ | 600m |
| Drill head lifting force | 300kN |
| Drill head feeding force | 150kN |
| Rotary speed RPM | 0-1400rpm |
| Max. Torque | 2000N.m |
| Drill head feed stroke | 1800mm |
| Drill mast slide stroke | 1200mm |
| Hydraulic pumps |
Primary pump：95ml/r.32MPa Auxiliary pump：80ml/r.25MPa |
| Hydraulic cooling system | Water cooling+Air cooling |
| Power unit |
92kW/2200rpm Yuchai 6-cylinder engine |
| Hydraulic winch capacity | 800m |
| Mechanical winch capacity | 20kN |
| Winch lifting speed | 110m/min |
| Mud pump | BW100/BW160（Optionai） |
| Crawler chassis | 6T steel 300mm / 8t steel 400mm（Optionai） |
| Crawler climbing angle | 25° |
| Crawler walking speed | 2-3km/h |
Steel track and structural design features
1. Steel track chassis: Thickened steel tracks, wireless remote control for movement, climbing 25°, speed 2–3 km/h, capable of free movement in mountainous areas, muddy, rocky, and steep slopes without the need for a trailer
2. Side-to-side movement of the power head: No need to dismantle the tower to raise or lower the drill pipe, the efficiency of changing drill rods is 40% higher than that of traditional drilling rigs
3. High-strength combined mast: Hydraulic cylinder lifting + 1.2m overall sliding, 45°–90° arbitrary inclination, universal on the surface
4. Hydraulic leveling legs: Four legs independently adjustable for leveling, complex terrain can be leveled in 5 minutes, ensuring stable construction
5. Compact heavy-load layout: The total weight of the entire machine is approximately 6.5t, transportation size is 4400×2200×2800mm, convenient for movement
6. Strong passability of steel tracks: Thickened steel tracks + remote control for movement, free movement in mountainous areas / muddy / steep slopes
7. Deep hole with large torque stability: 118kW power + 1800N·m torque, stable and efficient for 800-meter deep holes
8. High-efficiency full hydraulic system: Load-sensitive system + automatic unhooking, low labor intensity, high efficiency
9. High-quality rope core extraction: High rock core integrity rate, high utilization rate of pure drilling time
10. Long-lasting heavy-load durability: Heavy structure + reinforced heat dissipation, worry-free continuous operation in harsh conditions
Application scenario
* Solid mineral exploration: 800-meter deep core sampling for gold, copper, lead-zinc, iron, etc., with high integrity of rock cores
* Mountainous / complex terrain: Steel tracks reach directly, solving the problem that wheeled / rubber-tired drilling rigs cannot enter
* Engineering geological survey: Geological profile drilling for roads, railways, bridges, and infrastructure projects
* Hydrology / geothermal / shallow oil and gas: Groundwater, geothermal energy, and shallow oil and gas exploration and well drilling
* Dams / tunnel projects: Construction of grouting holes, ventilation holes, and drainage holes
