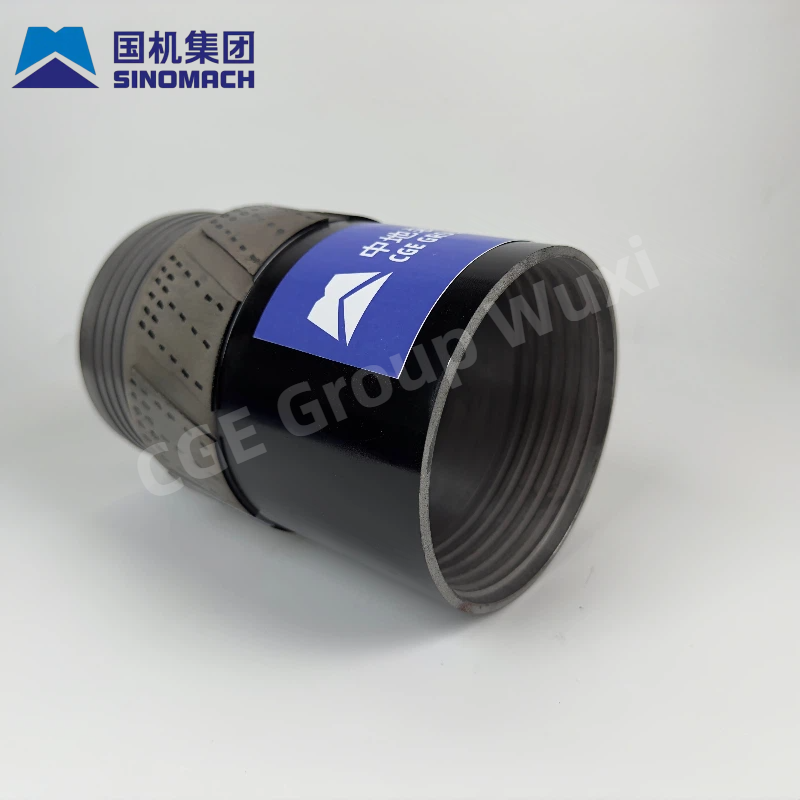

N/WL Diamond Reaming Shell for Wireline Coring Drilling
Certification: ISO9001
Minimum Order Quantity: 2 PCS
Price: Negotiation
Packaging Details: Wooden box/Carton box,customized
Delivery Time: According to order
Payment Terms: L/C T/T Western Union Paypal
Supply Ability: 999+
Description
Material: |
Natural Diamond,Synthetic Diamond,TSP |
Standard: |
DCDMA Standard/ Q Standard |
Application: |
Reaming Shells Are Designed To Be Placed Behind The Bit To Ensure Hole Gauge And To Help Core Barrel Stabilization. Reaming The Hole, Acts As A Stabilizer During Drilling In The Hole, Especially For Wireline Coring Drilling |
Advantage: |
Top Wear Resistant Property, Optimum Stabilizing And Reaming Performance. |
Outer Diameter: |
75.8mm |

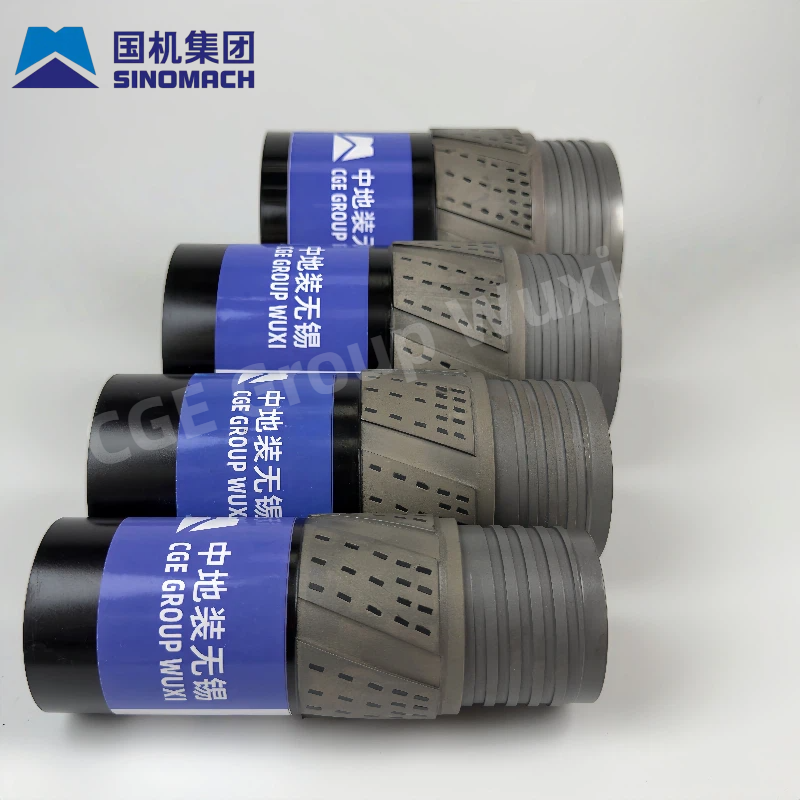

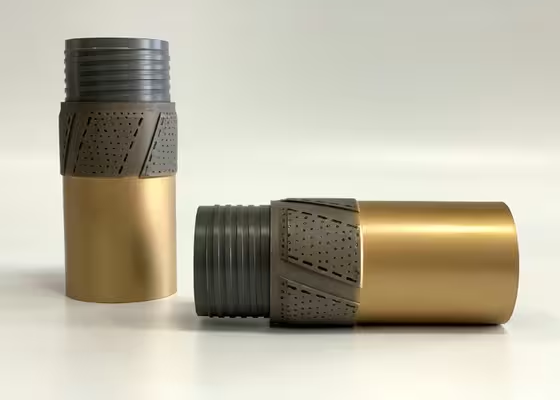

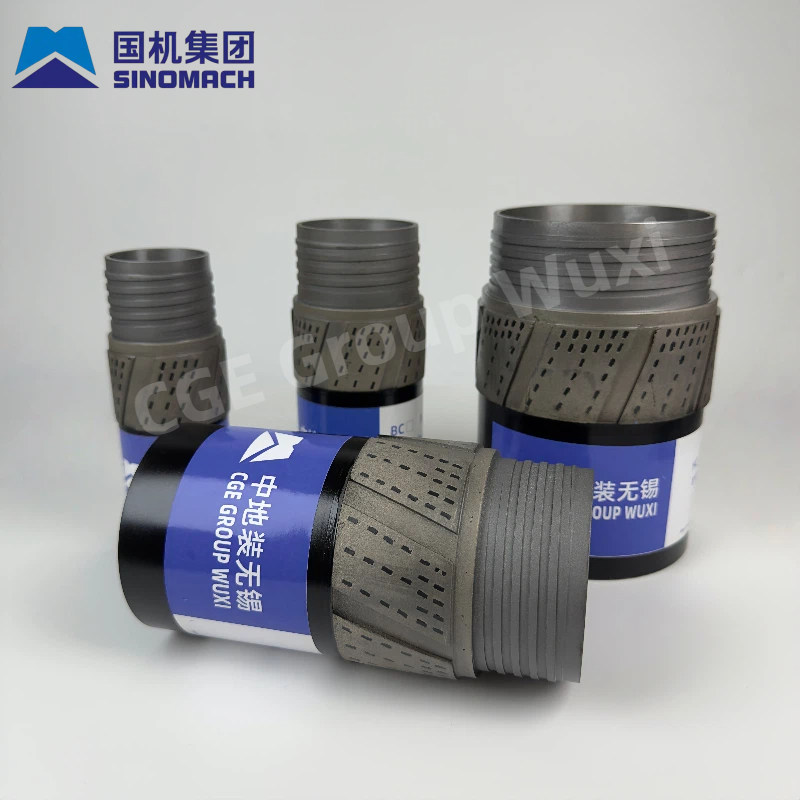

Diamond Reaming Shell Detail
H/WL TSP thermally stable polycrystalline Reaming shell Outer diameter 96.09mm
Reaming shells are designed to be placed behind the bit to ensure hole gauge and to help core barrel stabilization. Improving drill string stability and protecting lower drill string from excessive wear, and ensures that when a new core bit is inserted into a continuing bore hole there is a good chance of reaching the bottom of the bore hole without reaming.
Combined high quality and design make our reaming shells the best in the industry.
Three types of reaming shells can be selected: :Reinforce, Protector, Stability.
1. Reinforce(Only diamond)
2. Protector(Diamond and polycrystalline)
3. Stability(TSP thermally stable polycrystalline)

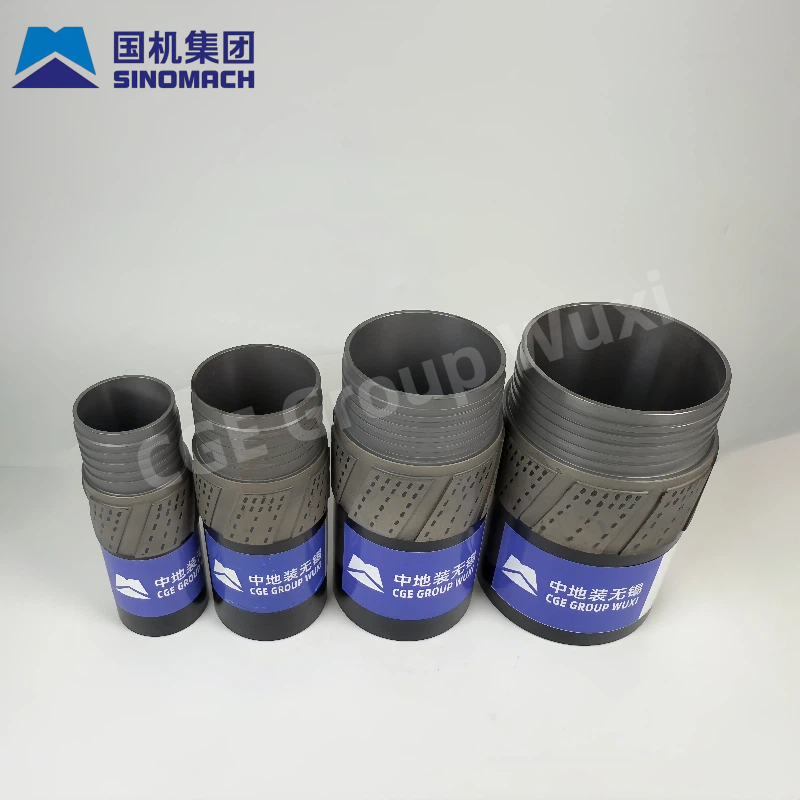

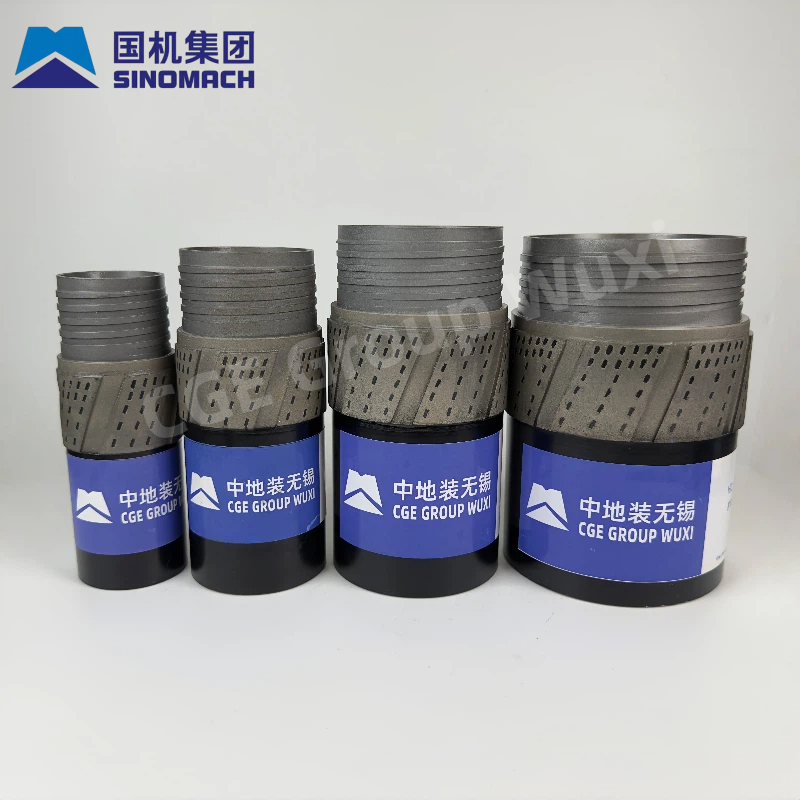

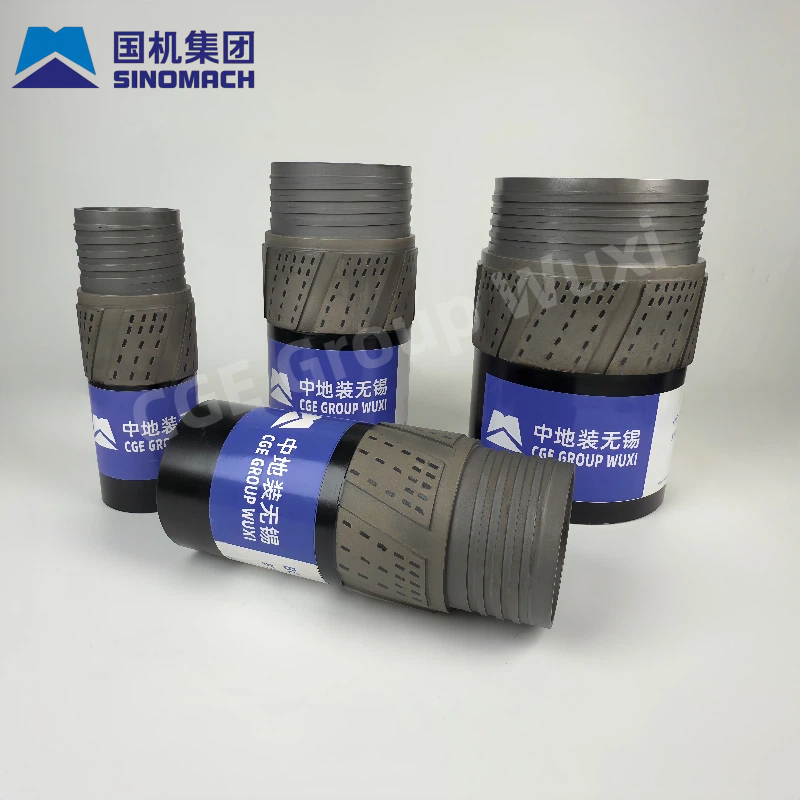

4. Size of Reaming shell
Technical Parameter
| Outer Diameter | |
| Inch | mm |
| 2.36 | 59.95 |
| 2.98 | 75.7 |
| 3.783 | 96.09 |
| 1.89 | 48.01 |
| 2.36 | 59.95 B/WLReam shell |
| 2.36 | 59.95 B/WL- 3Ream shelll |
| 2.98 | 75.8 N/WL Ream shell |
| 2.98 | 75.7 N/WL-3 Ream shell |
| 3.783 | 96.09 H/WL Ream shell |
| 3.783 | 96.09 H/WL-3 Ream shell |
| 4.828 | 122.65 P/WL Ream shell |
| 4.828 | 122.65 P/WL-3 Ream shell |
| 2.224 | 56.5 |
| 3.019 | 76.5 |
| 3.406 | 86.5 |
| 3.996 | 101.5 |
| 3.996 | 101.5 |
| 5.157 | 131.5 |
