N/WL Drill Rods 3m ZT850 Material For WireLine Core Drilling
Certification: ISO9001:2015
Minimum Order Quantity: N/A
Price: Negotiation
Packaging Details: Steel Belt Iron Frame Export Wooden Case
Delivery Time: 10-15 working days after payment
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Description
Prodcut Name: |
N/WL NWL Drill Rods 3m |
Application: |
N/WL Drill Rods For Transmit The Power For Diamond Core Drilling For Wireline Coring Mineral Exploration |
Material: |
ZT850 30CrMnSi |
Type: |
Dril Rod |
Hole Diameter: |
69.9-70.1mm |
Thread Type: |
Q Series |
Rod Diameter: |
70.1mm |
Length: |
3m |
Stock: |
Always In Good Stock |

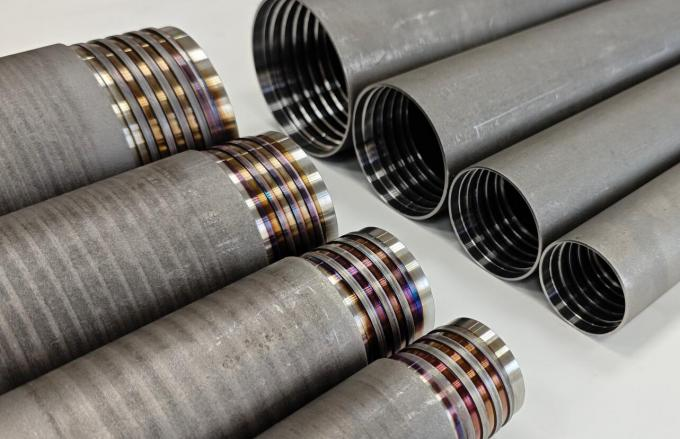

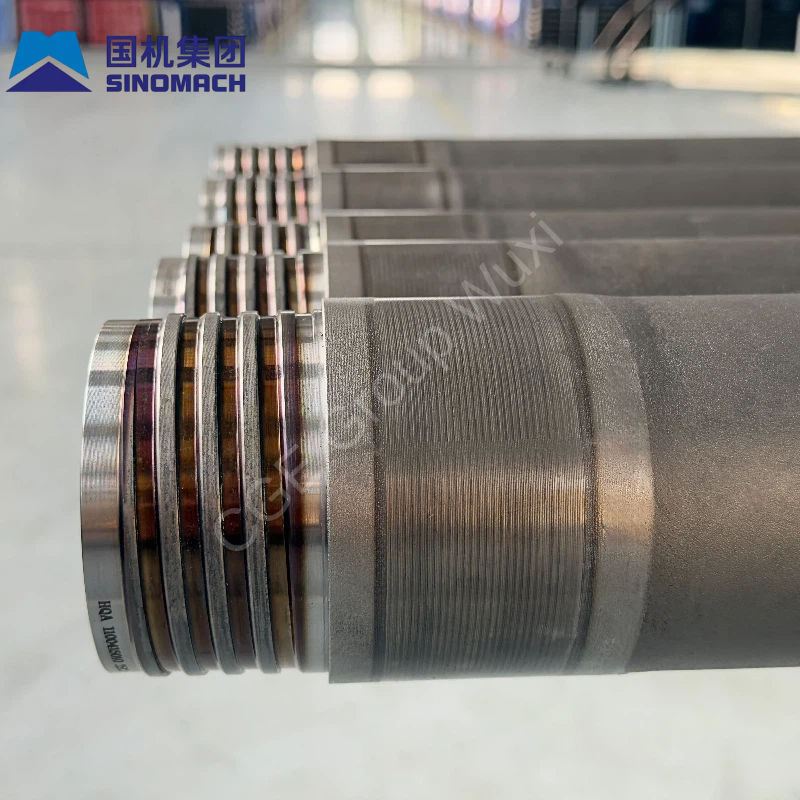

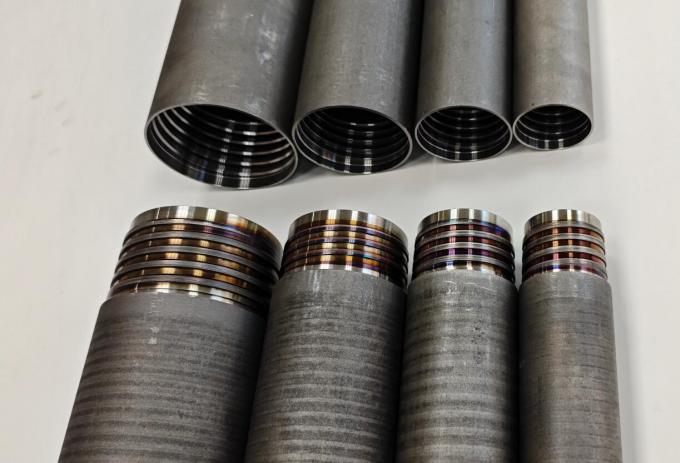

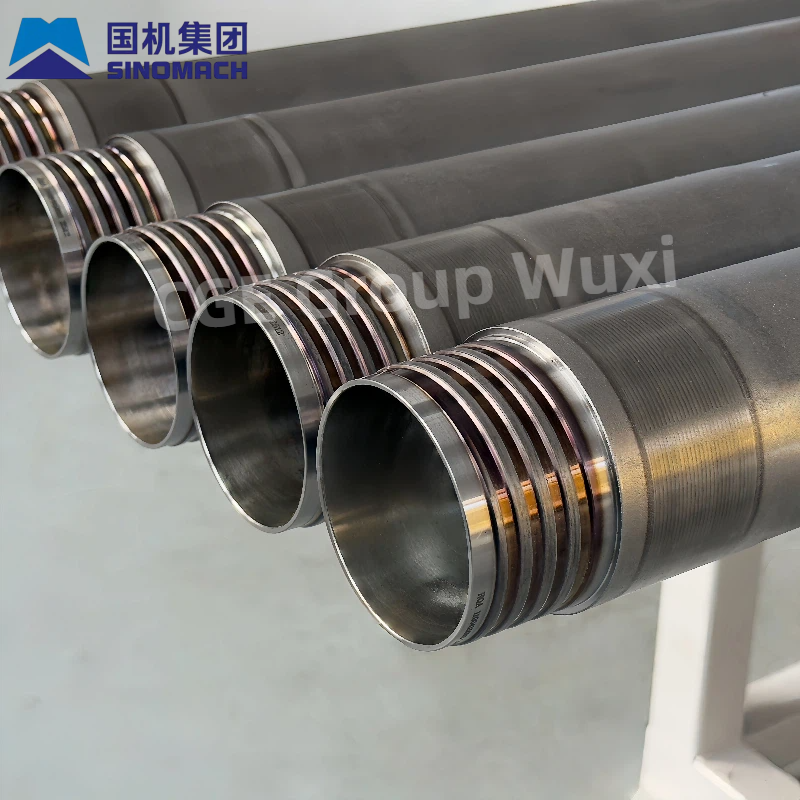

Description of High Performance Durable Wireline Drill Rod NWL 3m:
This NWL wireline drill rod 3m is the tool that connects the drilling tools and drilling bits, and it is mainly used to transmit power. It mainly consists of a tubing body and two thread ends with excellent case hardening treatment.
Concerning the packing, it is packaged by iron belts.
NQ Bundled Specifications (Steel Belt):
3.0m/10ft NQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.5×0.5
Volume: 0.75 m3
NQ Bundled Specifications (Iron Frame):
3.0m/10ft NQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.38×0.39
Volume: 0.43 m3
HQ Bundled Specifications (Steel Belt):
3.0m/10ft HQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.625×0.625
Volume: 1.2 m3
HQ Bundled Specifications (Iron Frame):
3.0m/10ft HQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.46×0.47
Volume: 0.65m3
PACKAGE SPECIFICATION BY IRON BELTS
| pe | Length | Size(L*W*H)m | Qty/package |
| NQ | 1.5m/5ft | 1.6*0.45*0.5 | 25 |
| NQ | 3m/10ft | 3.1*0.45*0.5 | 25 |
| HQ | 1.5m/5ft | 1.6*0.55*0.6 | 25 |
| HQ | 3m/10ft | 3.1*0.55*0.6 | 25 |
| PQ | 1.5m/5ft | 1.6*0.7*0.75 | 25 |
| PQ | 3m/10ft | 3.1*0.7*0.75 | 25 |
PACKAGE SPECIFICATION BY STEEL BELT
| Type | Length | Size(L*W*H)m | Qty/package |
| NQ | 1.5m/5ft | 1.6*0.5*0.5 | 37 |
| NQ | 3m/10ft | 3.1*0.5*0.5 | 37 |
| HQ | 1.5m/5ft | 1.6*0.65*0.65 | 37 |
| HQ | 3m/10ft | 3.1*0.55*0.6 | 37 |
| PQ | 1.5m/5ft | 1.6*0.6*0.6 | 19 |
| PQ | 3m/10ft | 3.1*0.6*0.6 | 19 |

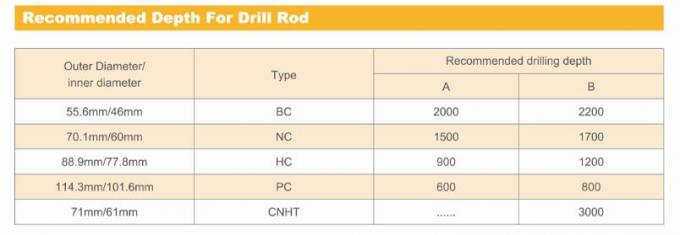

Based on the drilling depth of actual condition,drill rods are divided into A and B grades,Which have different performances and prices,If there are no special requirements,grade A products will be default products.
