NXQ Both-End Quenched & Tempered Wireline Coring Rod
NXQ is ultra-deep hole reinforced NQ-standard wireline core drill rod, compliant with international DCDMA standards. With pipe body size Φ70.1×5mm, it adopts ZT950 high-grade alloy steel substrate and precise medium-frequency sectional quenching & tempering on both ends. It is specially designed for deep mineral exploration and ultra-deep geological coring with maximum recommended drilling depth of 2030 meters.
Certificates: ISO, RoHS, MSDS
Material: ZT950
Available Lengths: 1m, 1.5m, 3m
Recommended Drilling Depth: 2030m
Description
NXQ is ultra-deep hole reinforced NQ-standard wireline core drill rod, compliant with international DCDMA standards. With pipe body size Φ70.1×5mm, it adopts ZT950 high-grade alloy steel substrate and precise medium-frequency sectional quenching & tempering on both ends. It is specially designed for deep mineral exploration and ultra-deep geological coring with maximum recommended drilling depth of 2030 meters.
Compared with ordinary NQ and NRQ drill rods, NXQ has full upgrades in material purity, pipe pressure resistance, heat treatment range and thread surface reinforcement. It balances ultra-high tensile & torsional strength and high pipe body toughness, suitable for 1700-2030m ultra-deep straight holes, high-inclination holes, fractured hard rock and complex structural formations. It solves core defects including ultra-deep hole rod fatigue fracture, thread tooth collapse and pipe bending deformation, fully compatible with all NQ wireline coring accessories.
Specifications
| Model: | NXQ Ultra-deep Reinforced Wireline Core Drill Rod (Both Ends Tempered) |
| Dimension: | OD 70.1mm, Wall Thickness 5mm, ID 60.1mm |
| Material: | ZT950 High-strength Special Drilling Alloy Steel |

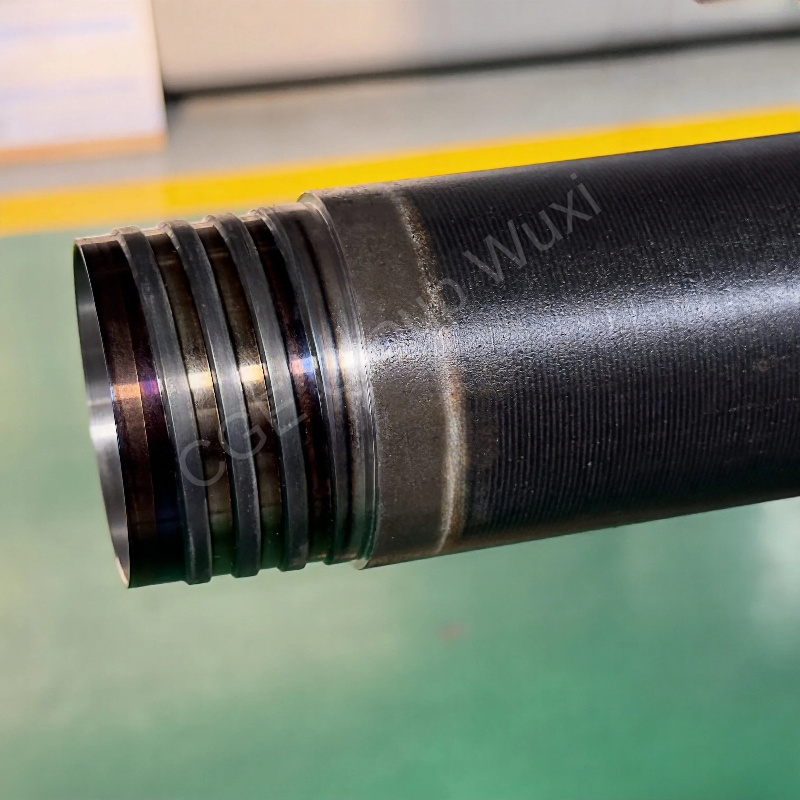

| Thread Standard: | NQ standard 1:22 taper thread, 3TPI right-hand taper thread |
| Standard Length: | 1m, 1.5m, 3m, Customized Size Available |
| Heat Treatment: | Extended medium-frequency induction tempering on both ends, normalized high-toughness pipe body |
| Max Recommended Drilling Depth: | 2030m |
| Compatible Tools: | Full set NQ wireline coring tools, mixed use with NQ/NRQ drill rods supported |
Product features
1. Extended two-end tempering, fits for 2030m ultra-long drill string
Conventional NQ and NRQ rods are only suitable for depth within 1900m. NXQ adopts upgraded extended tempered zone and optimized metallographic structure, which bears dead weight and high rotary torque of 2030m drill string, doubles thread fatigue life and avoids sudden rod breakage in ultra-deep drilling.
2. 70.1*5mm precision pipe structure, balance strength and water passing efficiency
5mm optimized thickened pipe wall improves pressure resistance and deformation resistance under ultra-deep hole working condition. Standard large inner bore ensures sufficient flushing fluid flow, fast cuttings discharge and efficient diamond bit cooling.
3. Rigidity-toughness balanced design, adapt to complex ultra-deep formations
Hardened thread ends and high-toughness pipe body resist strong cutting torque of deep hard rock, buffer bending impact of inclined holes and fault fracture zones, no bending or fatigue fracture for 2030m deep hole construction.
4. Universal NQ standard thread, zero accessory replacement cost
Fully interchangeable with all NQ wireline coring accessories in the market. No need to replace original core barrel, overshot, drill bit and reaming shell, mixed use with old rods saves project cost.

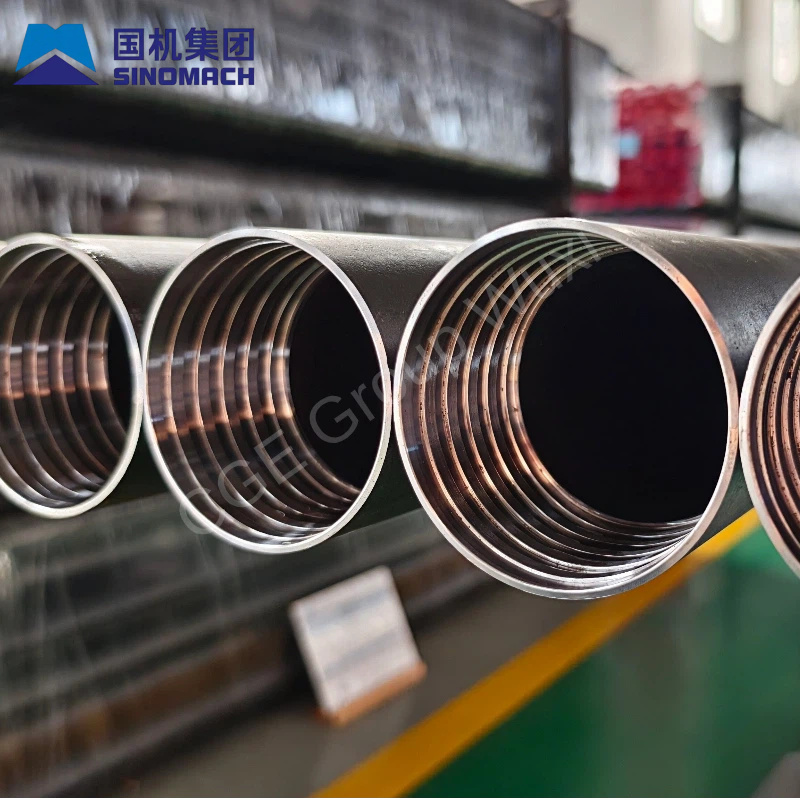

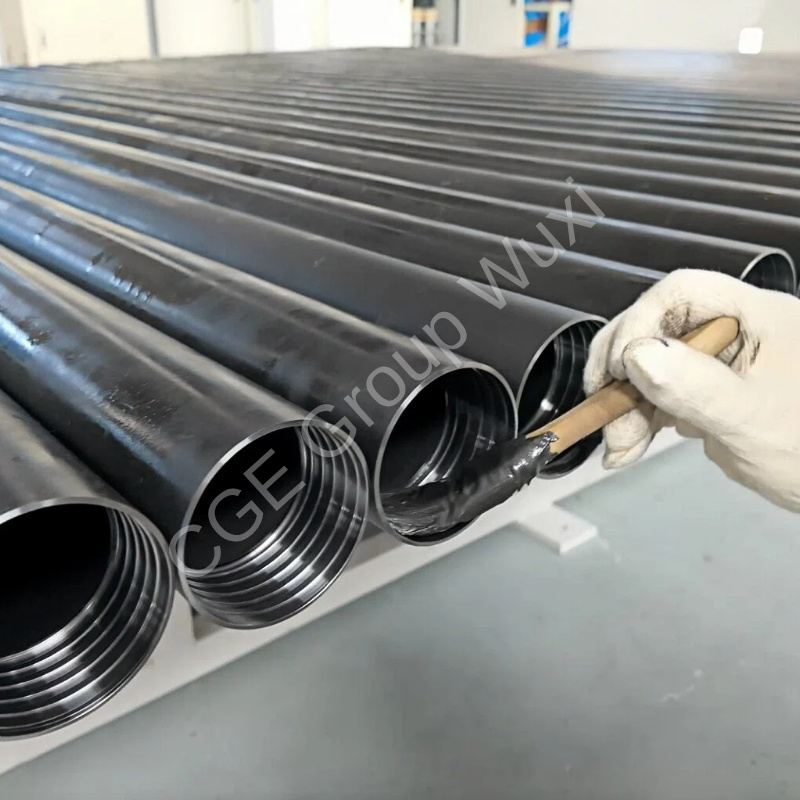

5. Anti-corrosion & anti-galling thread, stable long-term downhole service
Adopt composite nitriding and phosphating thread treatment, resist mineralized groundwater and acidic mud corrosion. Prevent thread seizing, easy breakout after long downtime, reduce downhole construction failure loss.
