PQ Impregnated Diamond Core Bit W profile for Wireline Coring
Certification: ISO9001
Minimum Order Quantity: 2PCS
Price: Negotiation
Packaging Details: Wooden box/carton box, customized
Delivery Time: According to order
Payment Terms: L/C T/T
Supply Ability: 999+
Description
Advantage: |
Factory Direct & Competitive Price, High-efficiency, Imporved Efficiency, Cutting Life And Operator Safety, Friendly Surrondings |
Standard: |
DCDMA Standard/ Q Standard |
Available Size: |
B/WL N/WL H/WL P/WL B/WL-3 N/WL-3 H/WL-3 P/WL-3 |
Name: |
H/WL-3, W-Profile Impregnated Diamond Bit |
Application: |
Ror Wireline Coring Drilling |
Detail

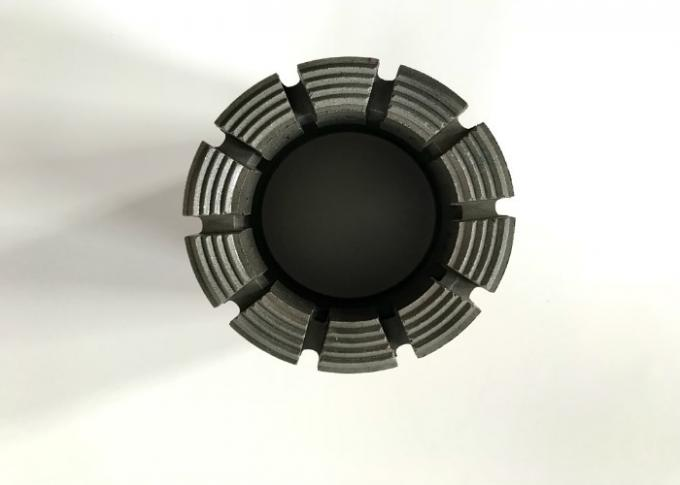

Q Impregnated Diamond Core Bit for wireline coring (OD:122.05mm, ID:84.96mm)
Impregnated Diamond Core Bit Wire Line Drilling High Reliability And Performance Diamond Core Bit
PQ, W-Profile (OD:122.05mm, ID:84.96mm)
W-Profile
Bit Selection Process
| Type | Core bit | |||
| Outer Diameter | Inner Diameter | |||
| Inch | mm | Inch | mm | |
| BTW | 2.345 | 59.56 | 1.667 | 42.35 |
| NTW | 2.965 | 75.31 | 2.218 | 56.35 |
| HTW | 3.762 | 95.57 | 2.809 | 71.35 |
| A/WL | 1.875 | 47.63 | 1.062 | 26.97 |
| B/WL | 2.345 | 59.56 | 1.433 | 36.4 |
| B/WL-3 | 2.345 | 59.56 | 1.32 | 33.53 |
| N/WL | 2.965 | 75.31 | 1.875 | 47.63 |
| N/WL-3 | 2.965 | 75.31 | 1.775 | 45.08 |
| H/WL | 3.762 | 95.57 | 2.5 | 63.5 |
| H/WL-3 | 3.762 | 95.57 | 2.406 | 61.11 |
| P/WL | 4.805 | 122.05 | 3.345 | 84.96 |
| P/WL-3 | 4.805 | 122.05 | 3.27 | 83.06 |
| T2-56 | 2.205 | 56 | 1.642 | 41.7 |
| T2-76 | 2.992 | 76 | 2.429 | 61.7 |
| T2-86 | 3.385 | 86 | 2.823 | 71.7 |
| T2-101 | 3.976 | 101 | 3.295 | 83.7 |
| T6-101 | 3.976 | 101 | 3.11 | 79 |
| T6-131 | 5.157 | 131 | 4.252 |
108 |
{2}(1)Appropriate hardness of matrix(For some special or complicated ground,we will need to customize the diamond bits according to the actual drilling conditions.)
(2)Appropriate profile/water way and height of the crown(Height of the crown:9mm-20mm,standard:14mm,Customized)
W-Profile(Standard profile)
·General purpose design
·Suitable for mixed formations contain broken and competent zones
·Suitable for a board range of formations
·Height of crown:14mm,Customized
Face discharge Profile
·Design to minimize washing of core sample
·Suitable for broken/granular formations
·Height of crown:14mm,Customized
Turbo Profile
·High performance ”free cutting” bit
·High productivity
·Suitable for hard/competent formations
·Suitable for non-abrasive formations
Height of crown:14mm,Customized
Sand profile
Suitable for competent to extremly broken or clay,
clay/sand mixed formations
·Double tube applications
·To improve core recovery in soft/broken or loose zones
·Height of crown:14mm,Customized
Taper Profile
· Profile used in hole wedging(directional drilling)
· Operations to ream wedged hole after pilot bit
· Height of crown:14mm,Customized
{3}Select suitable series from our three types
(1)Master Series(Full range hardness of stratum)
Manufactured one by one with care and precision,Master™ core bit are designed to our highest quality standards. They offer their best performance in very hard to extremely hard types, such as those comprised of basalt and felsic or volcanic rock and so on.
(2)Navigator Series(Soft -very hard hardness of stratum)
Navigator™is our highest cost performace and most popular series. This series provides the versatility you need for optimum drilling perforance in varying conditions, best performance in soft to very hard stratums
(3)Junior Series(Soft-medium hardness of stratum)
Attractive price with high cost performance, Junior™series provide good performance in soft to medium stratums
