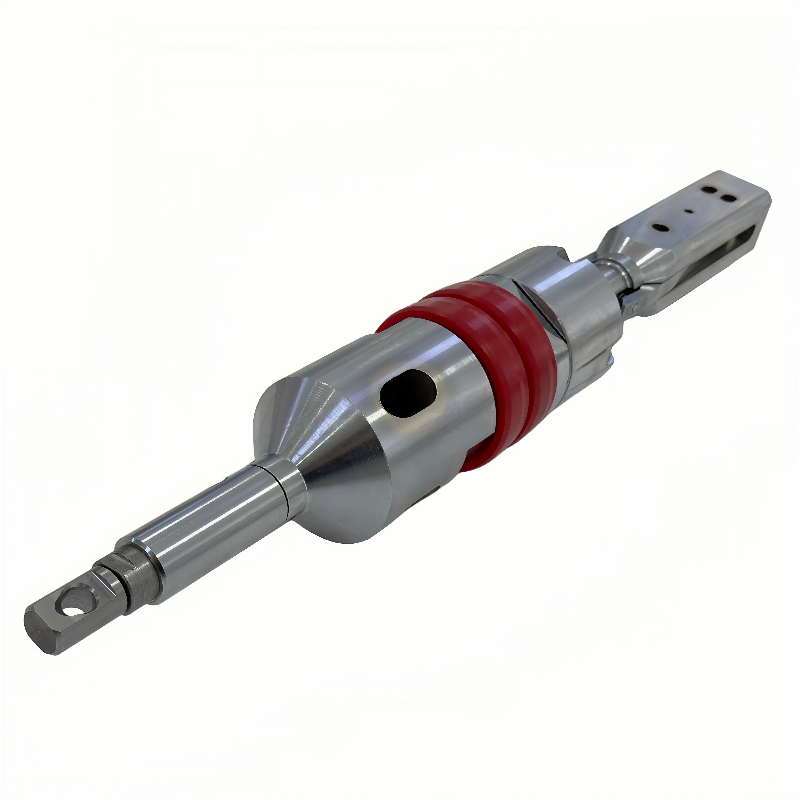

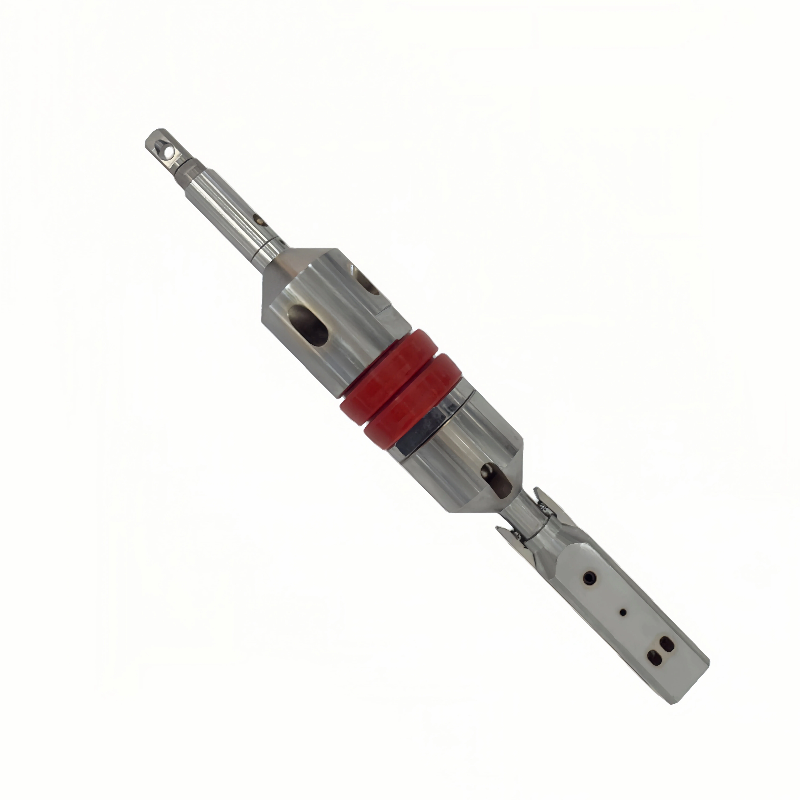

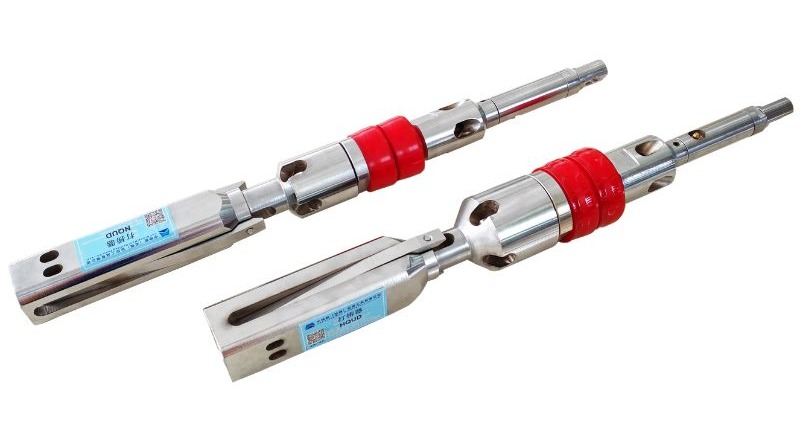

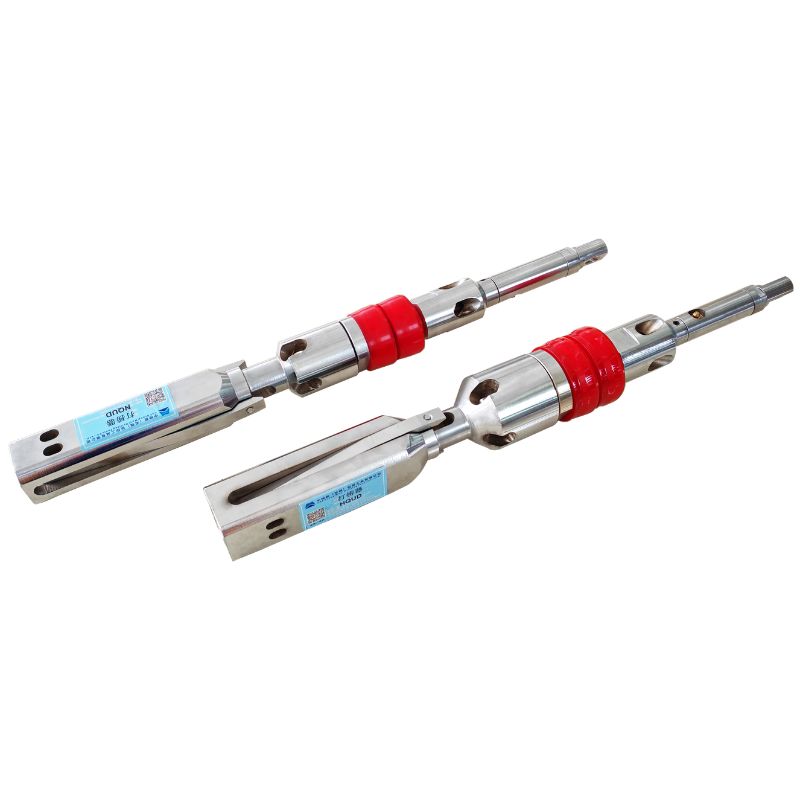

PQUD DCDMA Standard Horizontal Wireline Fishing Overshot

PQUD Horizontal Wireline Overshot is a heavy-duty wireline coring fishing tool specially designed for large-bore, long-distance deep horizontal tunnels, super-long tunnel advanced exploration and large-inclination boreholes. It matches PQU series heavy-duty horizontal wireline coring drill rods and inner tube assemblies.
Specially optimized for extreme working conditions including large borehole resistance, high water inflow and heavy load deep-hole drilling, it is hydraulically driven by high-power mud pressure. It can stably retrieve large-diameter core barrels without tripping the whole drill string, serving as the core supporting tool for large geotechnical projects and deep super-long horizontal geological exploration.
Equipped with heavy-duty torsion-release lifting ring, reinforced buffer jarring mechanism and heavy-load self-locking anti-drop fishing head, PQUD features stable feeding, heavy-load grabbing and ultra-reliable anti-drop performance. The thickened 40Cr steel body and high-strength alloy quenched dogs ensure large load capacity, impact resistance and ultra-high wear resistance. Fully compliant with DCDMA standards, it is a premium supporting product for large-scale drilling projects and export applications.
Certifications: ISO, RoHS, MSDS

1. Heavy-duty hydraulic feeding for large-bore horizontal holes
Specially designed for PQ large-bore horizontal and inclined holes. Driven by high-flow mud pressure, it easily overcomes large channel resistance and long-distance deep-hole feeding difficulties, ideal for super-long horizontal coring in large tunnels and deep geotechnical projects.
2. Heavy-load self-locking anti-drop structure with ultra-high safety factor
Widened 3-piece high-strength alloy dogs and heavy-duty rotary locking sleeve provide large meshing area and strong locking force. No loosening under heavy load lifting, high-pressure water impact and long-distance hole vibration, completely preventing large inner tube falling accidents.
3. Reinforced heavy-load jarring anti-stuck mechanism
Upgraded enlarged jarring components deliver powerful impact force to solve severe sticking caused by massive rock powder accumulation and strong mud adsorption in large-bore deep holes, ensuring reliable fishing in high-difficulty deep-hole operations.
4. Large-bore dedicated centralizing guide structure
Oversized tapered guide perfectly matches PQU large-bore inner channel with excellent centralizing performance. No deviation, no wall scraping and no blockage during long-distance running, ensuring accurate reaching of super-long hole bottoms.
5. Heavy-duty anti-torsion lifting ring assembly
Equipped with large thrust bearing and high-strength rotary joint to bear high torque and tension. It continuously releases torsion during super-deep hole lifting to avoid wire rope distortion and breakage and ensure heavy-load operation safety.
6. Standard universal size & easy maintenance
Manufactured in full compliance with DCDMA international standards, fully compatible with complete PQ large-bore horizontal wireline tool sets. Modular heavy-duty design allows fast on-site replacement of key wearing parts without professional equipment.

1. Custom heavy-duty design for large-bore high-end projects
Developed exclusively for PQ large-bore, super-long distance and high-load horizontal drilling. It features higher load capacity, stability and durability than smaller models, serving as the core tool for large water conservancy, transportation and deep geological projects.
2. Dramatically improve efficiency of large-bore deep-hole construction
Avoid frequent tripping of heavy full drill strings. Fast wireline coring greatly reduces auxiliary operation time for super-long holes, cutting project cycle and labor costs significantly.
3. Thickened high-strength material for extreme harsh conditions
Thickened 40Cr tempered main body and heavy-load alloy dogs provide outstanding impact resistance, extrusion resistance and wear resistance, adapting to extreme conditions such as high water inflow, complex broken formations and super-long friction loss.
4. Ultra-low failure rate reducing large project risks
Full heavy-duty protection structure delivers excellent anti-sticking, anti-drop, anti-break and anti-torsion performance, avoiding serious downhole faults common in large-bore deep holes and reducing huge rework and downtime losses.
5. Fully certified for high-end bidding and export
Complete ISO, RoHS and MSDS certifications with internationally universal standards, suitable for high-end domestic and foreign drilling projects, export business and high-standard engineering bidding.
