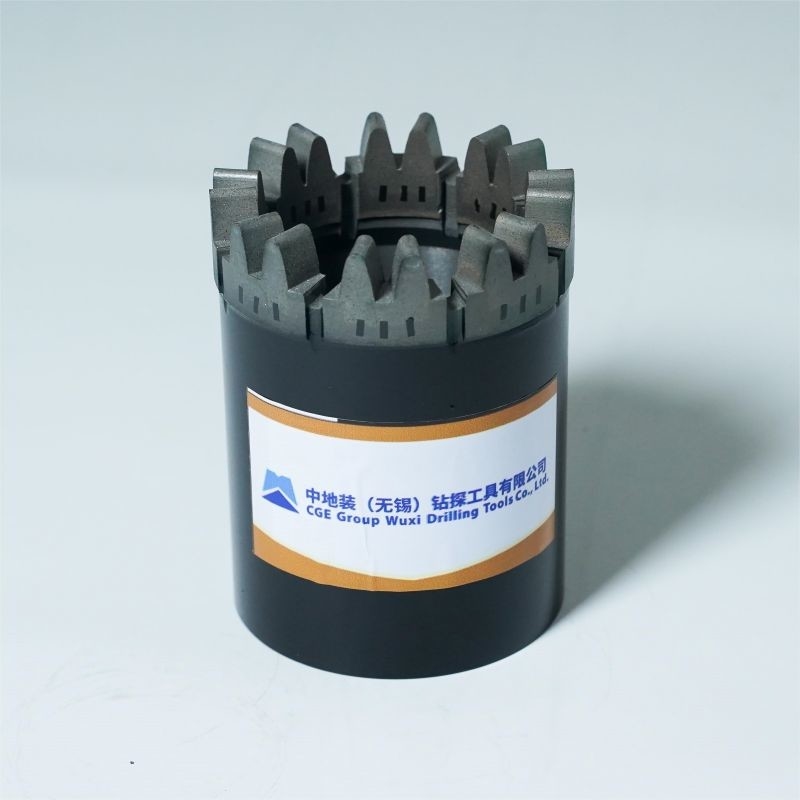

Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification

Place of Origin China
Brand Name cge
Certification ISO9001
Model Number H/WL,Face discharge Profile (95.57mm/63.5mm)
Minimum Order Quantity 2PCS
Price Negotiation
Packaging Details Wooden box/ Carton box/ customized
Delivery Time According to order
Payment Terms T/T L/C Western Union PayPal
Supply Ability 999+

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service OEM&ODM, (within 24hours)quick Response, ODM, OEM, Customized Advantage Factory Direct & Competitive Price, High-efficiency, Imporved Efficiency, Cutting Life And Operator Safety, Friendly Surrondings
Standard DCDMA Standard/ Q Standard Available Size B/WL N/WL H/WL P/WL B/WL-3 N/WL-3 H/WL-3 P/WL-3
Name H/WL,Face Discharge Profile Impregnated Diamond Bit Name Diamond Drill Bits For Rock
High Light

Impregnated Diamond Bit

,

Diamond Core Drill Bit

,

Diamond Drill Bit

Leave a Message
Product Description

Diamond Core Bit
H/WL, Face discharge Profile (95.57mm/63.5mm), The DCDMA standard impregnated diamond bits are the most commonly useful bits in the mineral exploration.
Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 0Face discharge Profile Profile
Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 1Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 2



1. Impregnated diamond core bit
It’s most popular and commonly in the mineral’s exploration field and geology’s exploration field. Nowdays Our company produce three types(Master Series, Navigator Series, Junior Series) is recognized and recommended by more and more customers.
We preciously selected grades of top grade synthetic diamond are distributed in the depth of impregnated bit’s matrix series.The matrix layer of the crown contains a uniform distribution of these crystal that are embedded in a powdered metal bond, for improving lifespan and rate of penetration. The best record of our bit in south africa, single bit’s life span reach amazing 614.40m



  • In order to help the customer to select suitable bit and reduce customer’s workload, please follow below three steps to choice your bit.

{1}Assure diameter of Impregnated bit

Type Core bit
Outer Diameter Inner Diameter
Inch mm Inch mm
BTW 2.345 59.56 1.667 42.35
NTW 2.965 75.31 2.218 56.35
HTW 3.762 95.57 2.809 71.35
A/WL 1.875 47.63 1.062 26.97
B/WL 2.345 59.56 1.433 36.4
B/WL-3 2.345 59.56 1.32 33.53
N/WL 2.965 75.31 1.875 47.63
N/WL-3 2.965 75.31 1.775 45.08
H/WL 3.762 95.57 2.5 63.5
H/WL-3 3.762 95.57 2.406 61.11
P/WL 4.805 122.05 3.345 84.96
P/WL-3 4.805 122.05 3.27 83.06
T2-56 2.205 56 1.642 41.7
T2-76 2.992 76 2.429 61.7
T2-86 3.385 86 2.823 71.7
T2-101 3.976 101 3.295 83.7
T6-101 3.976 101 3.11 79
T6-131 5.157 131 4.252 108









{2}(1)Appropriate hardness of matrix(For some special or complicated ground,we will need to customize the diamond bits according to the actual drilling conditions.)
Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 3


(2)Appropriate profile/water way and height of the crown(Height of the crown:9mm-20mm,standard:14mm,Customized)
Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 4



W-Profile(Standard profile)
·General purpose design
·Suitable for mixed formations contain broken and competent zones
·Suitable for a board range of formations
·Height of crown:14mm,Customized





Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 5


Face discharge Profile
·Design to minimize washing of core sample
·Suitable for broken/granular formations
·Height of crown:14mm,Customized
Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 6

Turbo Profile
·High performance ”free cutting” bit
·High productivity
·Suitable for hard/competent formations
·Suitable for non-abrasive formations
Height of crown:14mm,Customized

Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 7
Sand profile
Suitable for competent to extremly broken or clay,
clay/sand mixed formations
·Double tube applications
·To improve core recovery in soft/broken or loose zones
·Height of crown:14mm,Customized

Face Discharge Profile Diamond Core Bit High Efficieney ISO9001 Certification 8


Taper Profile
·Profile used in hole wedging(directional drilling)
Operations to ream wedged hole after pilot bit
· Height of crown:14mm,Customized


{3}Select suitable series from our three types
(1)Master Series(Full range hardness of stratum)
Manufactured one by one with care and precision,Master™ core bit are designed to our highest quality standards. They offer their best performance in very hard to extremely hard types, such as those comprised of basalt and felsic or volcanic rock and so on.


(2)Navigator Series(Soft -very hard hardness of stratum)
Navigator™is our highest cost performace and most popular series. This series provides the versatility you need for optimum drilling perforance in varying conditions, best performance in soft to very hard stratums

(3)Junior Series(Soft-medium hardness of stratum)
Attractive price with high cost performance, Junior™series provide good performance in soft to medium stratums
