Mineral Exploration Shoe Casing , Impregnated Diamond Bit High Efficiency

Place of Origin China
Brand Name cge
Certification ISO9001
Model Number N/WL W-profile Casing shoe (91.82mm/76mm)
Minimum Order Quantity 2PCS
Price Negotiation
Packaging Details Wooden box/Carton box,customized
Delivery Time According to the order
Payment Terms L/C, T/T, Western Union paypal
Supply Ability 999+

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Use Ensure Inside Wall Is Smooth And Large Enough For Free Passage Of Coring Drilling String. Standard DCDMA Standard/ Q Standard
Advantage Factory Price, Wear Resistant, Optimum Penetration Rates And Bits Life, High Performance Oem Available Service OEM&ODM, (within 24hours)quick Response, ODM, OEM, Customized
Name N/WL W-profile Casing Shoe Impregnated Diamond
High Light

casing float shoe

,

shoe casing

Leave a Message
Product Description



Casing shoe and Rod shoe

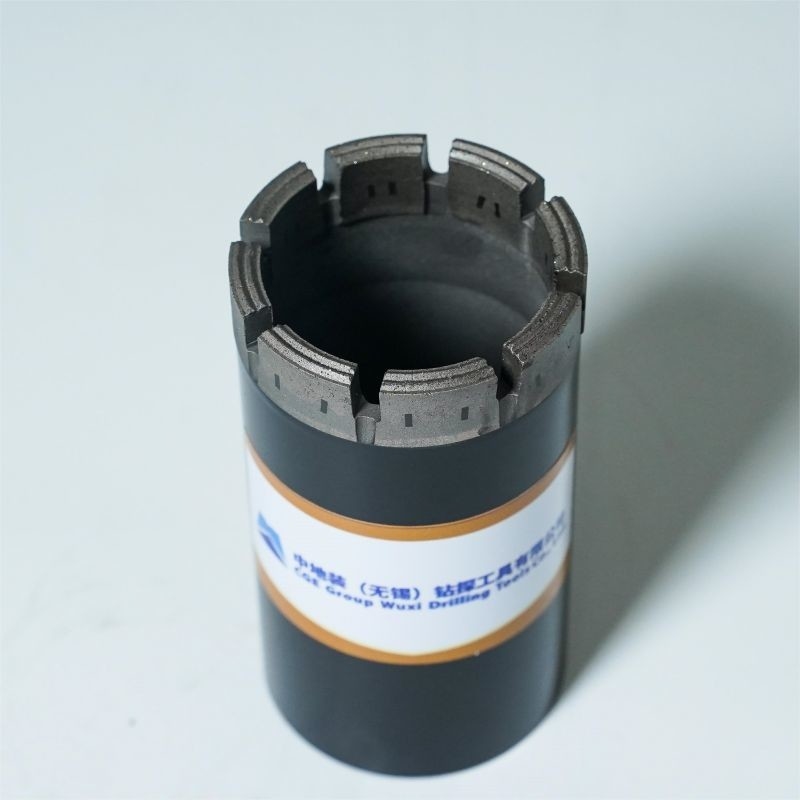

N/WL W-profile Casing shoe (91.82mm/76mm)





The diamond impregnated casing/rod shoe is the most commonly used as it has the widest range of application and is generally the most efficient tool for advancing casing/rod through overburden layers. We supplies casing and rod shoes with four waterway channels or multi waterway channels depending on the requirements.



We manufacture two types of Casing shoe: W-profile, Flat face profile, and can be customized .

Mineral Exploration Shoe Casing , Impregnated Diamond Bit High Efficiency 0

Mineral Exploration Shoe Casing , Impregnated Diamond Bit High Efficiency 1Mineral Exploration Shoe Casing , Impregnated Diamond Bit High Efficiency 2













Casing Shoe Sizes
DESCRIPTION Outer Diameter Inner Diameter
Inch mm Inch mm
AW 2.345 59.56 1.9 48.26
B/WL 2.965 75.31 2.37 60.2
N/WL 3.615 91.82 2.992 76
H/WL 4.625 117.48 3.925 99.7
HWT 4.625 117.48 3.925 99.7
P/WL 5.653 143.58 4.855 123.3
T2-56 2.205 56 1.85 47
T2-76 2.992 76 2.638 67
T2-86 3.385 86 2.823 71.7
T2-101 3.976 101 3.031 77
T6-101 3.976 101 3.445 87.5
T6-131 5.157 131 4.646 118

Rod Shoes Sizes
DESCRIPTION Outer Diameter Inner Diameter
Inch mm Inch mm
B/WL 2.345 59.56 1.78 45.21
N/WL 2.965 75.31 2.37 60.2
H/WL 3.615 91.82 2.992 76
P/WL 4.75 120.66 3.985 101.22
