Wireline Drill Rod Carbon Steel Forged Drill Pipe for Core Drilling
Certification: ISO9001:2015
Minimum Order Quantity: N/A
Price: Negotiation
Packaging Details: Steel Belt Iron Frame Export Wooden Case
Delivery Time: 10-15 working days after payment
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Description
Prodcut Name: |
Wireline Drill Tube, Wire LIne Drill Rod HQ |
Type: |
Drill Tube |
Material: |
Alloy Carbon Steel |
Standard: |
DCDMA CMS GB |
Outer Diameter: |
89mm H Size |
Inner Diameter: |
77.8mm |
Stock: |
Always In Good Stock |
Wire Line Core Drilling Rods Hole Dia: 89mm HQ (PQ NQ BQ Avialable)
Application

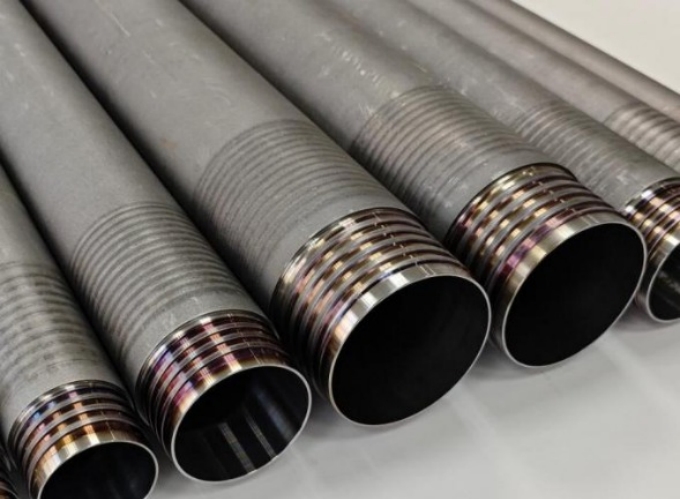

Our company’s Wire line drill rods are manufactured from the best quality heat-treated seamless steel tubes (30CrMnSiA or XJY850). Ultimate tensile strength, yield strength, high precision and good straightness provide the best performance under different drilling conditions.
1. Geologic drill rod supply
2. Good qualityat reasonable price
3. Have been exported for over 25 years
4. Sample and drawing are provided
Specification
Q series Rod parameter-geological steel pipe-entire length thermal treatment
| Spec. | Unit | BC(BQ) | NC(NQ) | HC(HQ) | PC(PQ) |
| OD/ID | mm | 55.6/46 | 70.1/60.1 | 89/77.8 | 114.3/101.6 |
| Thickness | mm | 4.8 | 5 | 5.6 | 6.35 |
| Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
| Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
| Thread length | mm | 44.45 | 44.45 | 44.45 | 63.5 |
| Thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
| Box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
| Pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
| Thread tooth angle | . | 29 | 29 | 29 | 29 |
| Tensile resistance(A series) | kn | 400 | 530 | 510 | 565 |
| Tensile resistance(B series) | kn | 450 | 615 | 625 | 660 |

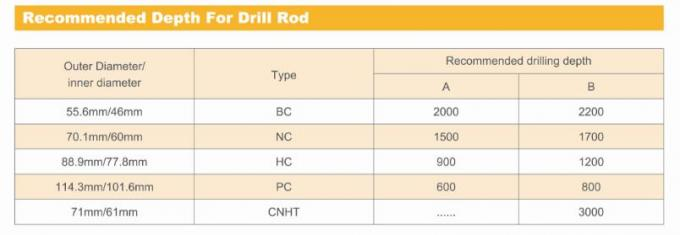

| Bore depth | m | 1200 | 1000 | 900 | 800 |
Clik above picture to find more
Our Services
1. Provide the technical solutions;
2. Manufacturing of non-standard equipment;
3. Professional technical training and guidance on site according to the requirement;
4. Supply accessories at any time;
5. Tele-technical consulting and services;
6. Other special technical service according to client’s requirements.
FAQ
01:Are you a manufacturer,trading company or a third party?
We are the earliest factory to produce drilling tools which have more than 60years experience.
02:Where is your factory located?How can l get to your factory?
We are in Wuxi City,China,where is near Shanghai,we can pick you up at the airportsor railway stations.
03:lf Iwill need to stay atyour place forfew days,is it possible to bookthe hotelfor me?
It's always our pleasure to book a nice hotel for you.
04:What is your minimum order quantity?
Our MOQ is 1 pc.
05:Can you send me free samples?
We're happy to provide small value free samples at your delivery cost.
06:Can you do customized products?
Yes,we are happy to do customized products if you can provide drawing or samples.
07:Can you do private label,such as put on our logo?
Yes,put on your logo is available.
08:How can I get the after-service &quality guarantee?
We will replace the products by free if the problems were caused by us.If it is themen-made problems,
we may also send the products,however it will be charged.Anyproblems,you may call us directly.
