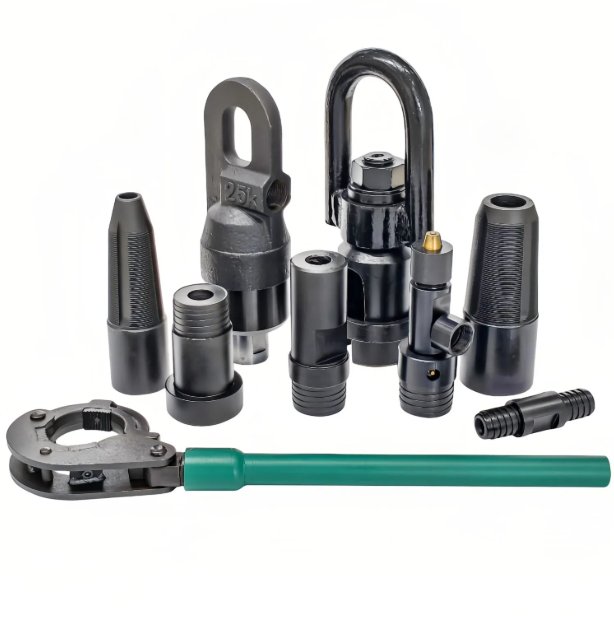

How to Choose High-Quality Drilling Tool Accessories

Understand Core Material and Coating Properties for Reliable Drilling Tools

HSS, Cobalt, and Carbide: Matching Material to Application Demands

The core material of a drilling tool fundamentally determines its performance envelope—dictating hardness, heat resistance, toughness, and suitability for specific substrates. High-Speed Steel (HSS) remains the go-to for general-purpose drilling in mild steel, aluminum, and wood, offering an optimal balance of affordability, edge retention, and impact resistance. When working with harder alloys—such as stainless steels or heat-treated components—cobalt-enhanced HSS (e.g., M42 grade) delivers superior red hardness and thermal stability, enabling sustained higher cutting speeds without rapid edge degradation. For the most extreme applications—including hardened tool steels (≥60 HRC), reinforced concrete, or abrasive composites—solid carbide or carbide-tipped bits are indispensable. Their exceptional hardness (up to 90+ HRA) and wear resistance extend tool life significantly where HSS or cobalt would fail prematurely. Matching material to application isn’t optional—it’s the first line of defense against premature failure and inconsistent hole quality.

TiN, Black Oxide, and Other Coatings for Enhanced Wear Resistance and Lubricity

Surface coatings amplify base material performance by modifying tribological behavior at the cutting interface. Titanium Nitride (TiN), identifiable by its gold hue, increases surface hardness to ~2,300 HV and reduces coefficient of friction—extending tool life up to 300% in many ferrous machining applications while improving chip flow and heat dissipation. Black oxide, a conversion coating rather than a deposited layer, enhances lubricity and corrosion resistance—particularly valuable in high-speed, high-feed operations on carbon steel where built-up edge and thermal cracking are concerns. For elevated-temperature environments (e.g., aerospace alloys or high-MRR milling), Titanium Aluminum Nitride (TiAlN) provides superior oxidation resistance up to 900°C. Diamond-like carbon (DLC) coatings offer ultra-low friction and extreme hardness for non-ferrous and composite materials prone to galling or abrasion. Crucially, coatings must be applied uniformly and bonded reliably; poor adhesion or thickness variation undermines their benefits regardless of chemistry. Selecting the right coating means aligning its functional strengths—not just its marketing label—with your material, speed, and coolant strategy.

Select Drilling Tools Based on Application, Compatibility, and Precision Requirements

Selecting the right drilling tools requires evaluating three critical factors: your specific application, compatibility with existing equipment, and required precision tolerances. Failure to align these elements reduces efficiency, accelerates wear, and compromises dimensional accuracy and surface finish.

Matching Shank Types and Interface Standards (SDS-Plus, Hex, Straight) to Your Drill

Shank design governs power transmission, rotational stability, and operational safety. Misalignment between bit shank and drill chuck introduces runout—often exceeding 0.05 mm—which degrades hole roundness, increases vibration, and shortens tool and spindle life. SDS-Plus shanks are engineered for rotary hammers, enabling axial hammering action while preventing rotational slippage during masonry drilling. Hex shanks (typically 1/4" or 6 mm) interface seamlessly with quick-release chucks in impact drivers, supporting rapid bit changes without compromising torque transfer in metal or wood fastening. Straight shanks rely on traditional three-jaw chucks found on drill presses and corded/cordless drills—ideal for precision tasks where concentricity and fine feed control matter more than impact force. Always verify shank geometry against your tool’s chuck specifications; even minor dimensional mismatches (e.g., a nominal 10 mm straight shank measuring 9.85 mm) can induce measurable runout and chatter.

Application-Specific Selection: Metal, Wood, Masonry, and Composite Materials

Material-specific geometry and coating synergies are non-negotiable for reliable performance. The table below reflects industry-validated best practices—not generic recommendations:

ISO 9001 certification is a baseline expectation—not a differentiator—for reputable manufacturers. Likewise, tolerance claims must be verifiable: ±0.02 mm diameter consistency across full flute length is standard for precision metalworking bits; anything above ±0.2 mm should raise concern for critical-hole applications.

Apply Real-World Quality Verification Methods for Drilling Tools

The 4-Point Field Test: Runout, Symmetry, Surface Finish, and Weight Consistency

Before deploying any drilling tool—especially in production or safety-critical settings—perform this field verification protocol:

1. Runout: Mount the bit in a calibrated chuck and rotate manually while measuring tip deflection with a dial indicator. Acceptable runout is ≤0.03 mm for precision work; >0.05 mm indicates potential imbalance or shank deformation.
2. Symmetry: Use a magnifier or optical comparator to confirm equal flute spacing, identical cutting edge angles, and consistent land width. Asymmetry causes uneven load distribution and premature chipping.
3. Surface Finish: Examine under 10× magnification for micro-cracks, pitting, or coating delamination—especially near the cutting edge and transition zones. These flaws nucleate wear and fracture under cyclic loading.
4. Weight Consistency: Compare against a certified reference sample from the same batch. A deviation >5% suggests inconsistent sintering (carbide), improper heat treatment (HSS/cobalt), or voids in coating deposition.

These checks identify physical defects that datasheets and certifications cannot reveal—and often correlate strongly with in-service failure modes observed in field service reports.

Certification & Tolerance Red Flags: Spotting Substandard Drilling Tools

Certifications like ISO 9001 validate a manufacturer’s quality management system—but they do not guarantee individual tool conformity. Always cross-check stated tolerances against physical measurement: a “±0.02 mm” bit must hold that spec across its entire functional length, not just at the shank. Be wary of vague descriptors (“industrial grade,” “premium coating”) without test data or traceable hardness values (e.g., HSS bits should measure ≥62 HRC per ASTM E18). Tools lacking batch-specific Rockwell or Vickers test reports—or showing visible porosity, inconsistent coating color, or mismatched shank-to-flute transitions—are high-risk candidates for early failure. In our experience servicing industrial maintenance teams, over 70% of unexplained bit breakage incidents traced back to undetected manufacturing inconsistencies caught only through this kind of hands-on verification.

FAQ

Q: What is the best material for drilling hard metals?
A: Cobalt or carbide bits are recommended for hard metals due to their superior hardness, heat resistance, and wear properties.

Q: How do coatings like Titanium Nitride (TiN) improve drilling tools?
A: TiN coatings increase surface hardness, reduce friction, and extend tool life significantly, particularly in ferrous machining.

Q: Why is shank type important when selecting drill bits?
A: The shank design affects power transmission, stability, and safety. Compatibility with your drill's chuck eliminates runout and vibration.

Q: How do I verify the quality of a drilling tool?
A: Use the 4-point field test to check for runout, symmetry, surface finish, and weight consistency for reliable performance.

Q: What certification is essential for reliable drilling tools?
A: ISO 9001 certification is essential, but verifying tolerances and physical characteristics like hardness is equally important.
