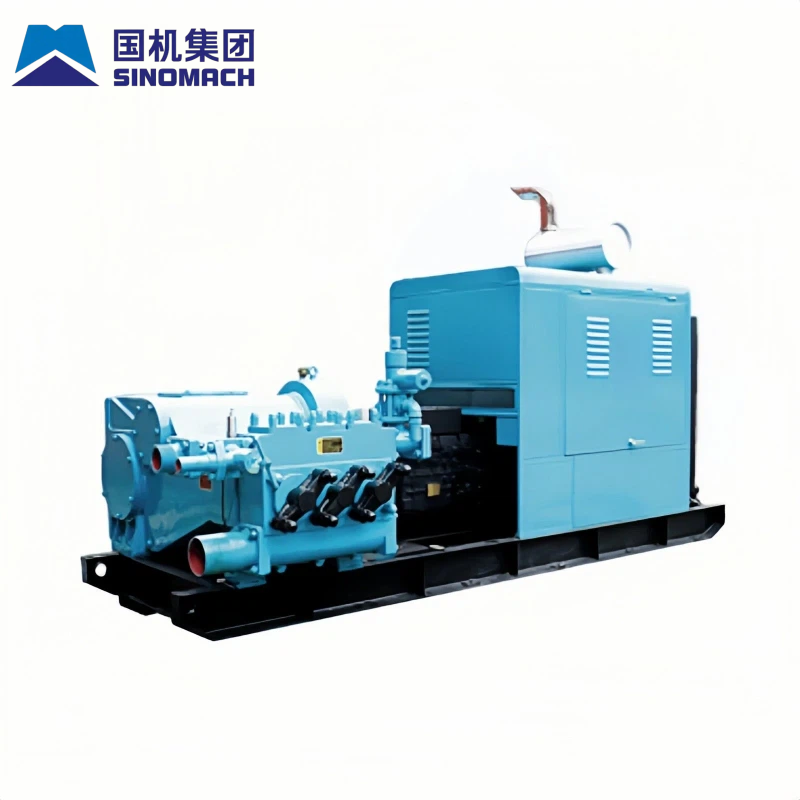

BW-1500/12 Large Displacement Mud Pump Geological Drilling Mud Pump | Trenchless Drilling Mud Pump
Triplex Piston Pump
6-speed Variable Transmission
Max. Flow Rate: 1500L/min
Max. Working Pressure: 12MPa
Product Categories:
Geological Drilling Mud Pump | Trenchless Drilling Mud Pump
MOQ:1PCS
Description
Main Applications and Features
1.The BW-1500/12 mud pump is mainly used for matching with horizontal directional drilling rigs with a maximum thrust and pull force of approximately 200 tons, and can also be applied to water well and geothermal well construction, mine dewatering, as well as shallow-hole oil drilling operations.
2.It provides six different combinations of flow rate and pressure, featuring a wide flow rate adjustment range, high output pressure, and reasonably matched parameters, which can meet the requirements of different construction processes.
3.The wearing parts have a long service life; the pump boasts stable performance, smooth operation, excellent strength and rigidity, and is equipped with abundant general and standard parts for easy selection and matching.
4.It features simple, flexible and convenient operation, and supports wireless remote control.
Specifications
| Model | BW-1500/12 | |||||
| Type | Triplex Piston Pump | |||||
| Stroke （mm） | 150 | |||||
| Liner DIA （mm） | Φ150 | |||||
| Pump Speed （min⁻¹） | 195 | 145 | 107 | 72 | 45 | 27 |
| Displacement （L/min） | 1500 | 1110 | 820 | 550 | 340 | 200 |
| Pressure （MPa） | 5.8 | 7.5 | 10 | 12 | 12 | 12 |
| Input Power （kW） | 179 | |||||
| Suction Pipe DIA （mm） | Φ152 | |||||
| Discharge Pipe DIA （mm） | Φ76 | |||||
| Outline Dimension （mm） | 3880×1800×2250 | |||||
| Weight（Kg） | 4500 | |||||
FAQ
Q1: Insufficient mud output causes poor cuttings removal and slow trenchless drilling when matched with 200-ton rigs?
A1: It delivers a max flow of 1500L/min to ensure strong mud circulation and efficient cuttings transport. Perfectly compatible with 200-ton trenchless rigs to prevent borehole clogging and boost construction efficiency.
Q2: Fixed flow & pressure fail to adapt to variable formations for hole washing and high-pressure drilling?
A2: Six speed shifts provide six sets of adjustable flow and pressure, enabling flexible switch between high-displacement hole cleaning and high-pressure grouting for water wells, geothermal wells and shallow exploration drilling.
Q3: Rapid wear of consumable parts leads to frequent breakdowns and costly downtime?
A3: Wearing parts feature long service life; abundant standard & universal spare parts are easy to source, cutting maintenance expense and production halt time.
Q4: Harsh working site brings inconvenience for on-site manual operation?
A4: Equipped with wireless remote control function, operators can start/stop the pump and adjust parameters remotely to avoid tough on-site operation.
Q5: Single-purpose pump results in low utilization rate and unnecessary procurement waste?
A5: Multi-scenario application for trenchless engineering, water/geothermal well drilling, mine drainage and shallow oil drilling, greatly improving equipment utilization.
