BW-3000/16 Large Displacement Mud Pump Geological Drilling Mud Pump | Trenchless Drilling Mud Pump

Main Applications and Features

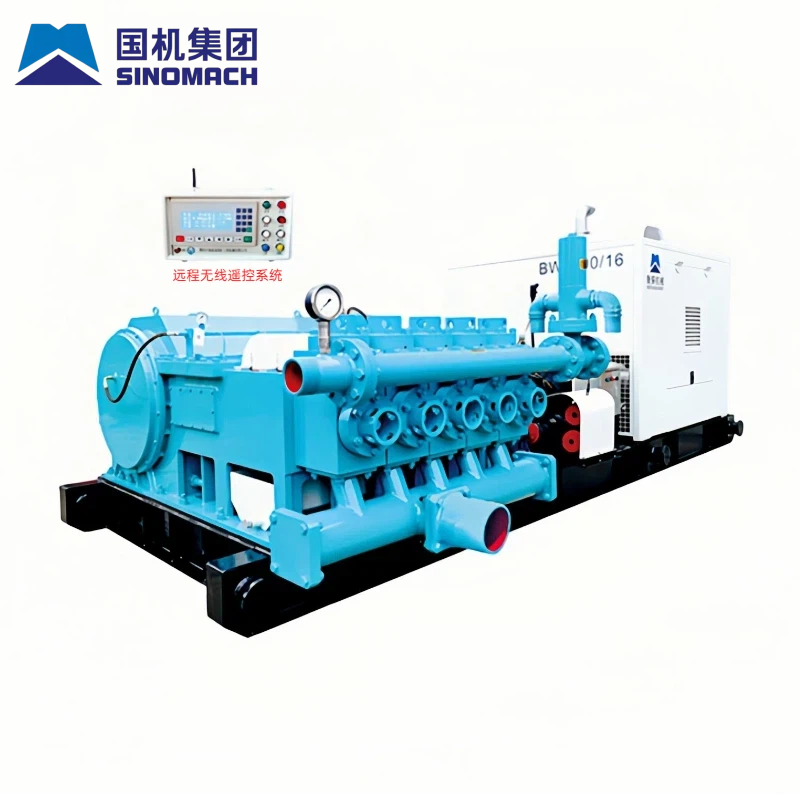

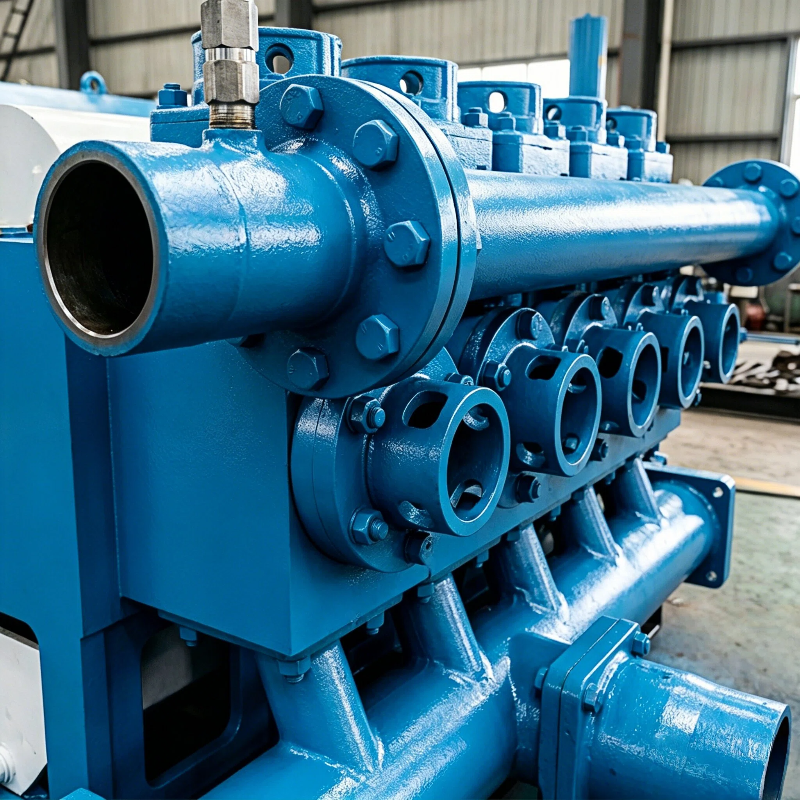

The BW-3000/16 type mud pump is a horizontal five-cylinder reciprocating single-action piston pump. It is mainly used in conjunction with non-excavation drilling rigs with a maximum pulling force of around 500 tons. It can also be used in conjunction with hydrological well drilling rigs, shallow-hole oil drilling rigs, etc. Its features include:

1.Compact structure, stable operation, wide flow variation range, high output pressure, and longer life of wear parts;

2.Eight-speed transmission, reasonable gear distribution, wide range of flow and pressure changes, strong construction adaptability, and high efficiency;

3.Five-cylinder single-action piston structure, uniform flow, small pressure fluctuation, stable performance;

4.The pump body and crankshaft are made of steel structures, with high strength and reliability; the connecting rod uses cylindrical roller bearings, improving the bearing capacity and the smoothness of movement;

5.The forced splash lubrication inside the box enhances the service life of components;

6.The cylinder liner and piston are cooled by spraying, increasing the service life of the cylinder liner and piston;

7.The suction pipe and discharge pipe are symmetrically arranged, which can be installed on any side, making it convenient and flexible;

8.Equipped with a Cummins engine and a Fastex gearbox, both of which are domestic brand products, ensuring product performance and after-sales service. 9. It can be remotely controlled, and the operation is very convenient.

1.Five-cylinder piston structure, high-flow output: Rated flow rate 3000L/min. The pump delivers abundant flow and operates efficiently, well-suited for large-diameter water wells, geothermal wells, and large-diameter non-excavation pipe laying projects. The efficiency of grouting and transporting fluid has been significantly improved.

2.Eight-speed adjustable, wide application range: 8-speed gears can be freely switched, allowing for flexible adjustment of flow and pressure. The maximum pressure capacity is 16MPa, covering both high-pressure drilling and multi-class construction processes such as large-flow grouting.

3.Excellent pressure-bearing performance: Rated maximum pressure 16MPa. Stable and durable for deep geological drilling, rock stratum drilling, and long-distance non-excavation pipe-laying high-pressure grouting under various working conditions.

4.High rigidity and strength of the entire machine, durable wear parts: Strong compatibility of accessories, convenient availability of standard parts, low failure rate, and smooth operation during long-term continuous operation.

5.Diverse application scenarios: Covers geological exploration drilling, water wells and geothermal drilling, and various non-excavation directional crossing projects. This one machine can be used for multiple purposes, meeting the construction needs of multiple industries.

Q1: How to solve low drilling efficiency caused by insufficient displacement in large-diameter water well and geothermal well construction?
A1: With a quintuplet cylinder structure and a maximum flow rate of 3000L/min, this pump delivers abundant flow for continuous circulation and cuttings carrying. It effectively solves problems such as insufficient mud supply in large boreholes, rock powder sedimentation and hole blockage, and prolonged construction periods, significantly accelerating drilling progress.

Q2: How to address insufficient pressure and weak mud delivery in high-pressure grouting for long-distance trenchless directional crossing projects?
A2: With a maximum working pressure of 16MPa and 8-speed adjustable flow/pressure settings, this pump solves the challenges of insufficient grouting pressure, large pressure drop during long-distance mud transportation, and unqualified wall protection grouting in pipe jacking and laying projects.

Q3: The formation conditions are variable, and a single pump cannot handle both large-diameter hole cleaning and high-pressure hard rock drilling. What can be done?
A3: The 8-speed variable transmission allows flexible switching between large-diameter hole cleaning and high-pressure rock breaking modes. This eliminates the need for multiple pumps for different working conditions, solving the pain point of high equipment investment costs for projects with diverse requirements.

Q4: What if on-site equipment parts wear out quickly, are hard to source, and cause costly downtime?
A4: The pump uses a high proportion of general and standard parts, with long service life for wearing parts. It solves the problems of non-standard parts being difficult to procure, frequent replacement leading to downtime, and high maintenance costs.

Q5: How to avoid low equipment utilization due to single-scenario use?
A5: Versatile for geological drilling, water well/geothermal well drilling, and various trenchless directional crossing projects. It enables multi-purpose use of a single unit, solving the pain point of high idle rates caused by limited project types and improving asset utilization.

Q6: How to reduce high vibration, poor stability, and frequent failures of high-power mud pumps under continuous operation?
A6: Featuring a quintuplet piston design for smooth operation and excellent structural rigidity, this pump supports long-term continuous full-load operation. It addresses issues such as severe vibration under heavy loads, rapid component wear, and frequent downtime due to failures.
