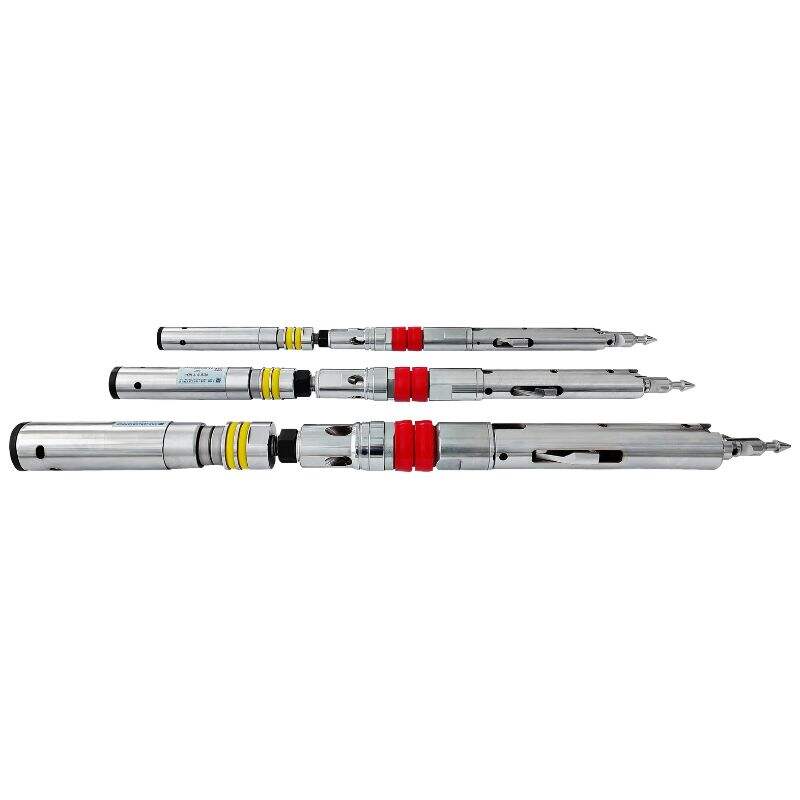

NQC/ HQC/ PQC Wireline impact core barrel assembly
Wireline impact core barrel assembly is a new type of highly efficient drilling equipment that combines rope core retrieval with hydraulic impact and rotary technology. It is equipped with a high-frequency hydraulic impactor and is integrated into the inner pipe assembly. There are three specifications: NQC, HQC, and PQC. It can achieve combined impact and rotary drilling. During operation, there is no need to lift the drill pipe. The inner pipe can be retrieved by using the rope, and the core can be taken out. This can significantly improve the drilling efficiency in hard, brittle, and fractured formations, effectively avoid core blockage, increase the single drilling depth, extend the service life of the drill bit, reduce the frequency of raising the drill pipe, and greatly reduce the overall drilling cost.
Single rod length: 1.5m / 3m (standard) Drill pipe material: 42MnMoB/ZT850, yield strength ≥ 950MPa
Joint material: 30CrMnSiA, CNC precision thread
Applicable depth: 0–3000m (deep hole reinforced type)
Description
Wireline impact core barrel assembly is a new type of highly efficient drilling equipment that combines rope core retrieval with hydraulic impact and rotary technology. It is equipped with a high-frequency hydraulic impactor and is integrated into the inner pipe assembly. There are three specifications: NQC, HQC, and PQC. It can achieve combined impact and rotary drilling. During operation, there is no need to lift the drill pipe. The inner pipe can be retrieved by using the rope, and the core can be taken out. This can significantly improve the drilling efficiency in hard, brittle, and fractured formations, effectively avoid core blockage, increase the single drilling depth, extend the service life of the drill bit, reduce the frequency of raising the drill pipe, and greatly reduce the overall drilling cost.
The complete set of rope impact drill tools includes a rope impact unit, a fishing tool, a reaming tool, and drill bit H11.
Single rod length: 1.5m / 3m (standard) Drill pipe material: 42MnMoB/ZT850, yield strength ≥ 950MPa
Joint material: 30CrMnSiA, CNC precision thread
Applicable depth: 0–3000m (deep hole reinforced type)
Specifications
| Model | Drill Bit | Reaming O.D | outer tube | inner tube | Drill Rod | |||
| O.D | I.D | O.D | I.D | O.D | I.D | |||
| NQC | 75.3 | 47.6 | 75.5 | 73 | 60.3 | 55.6 | 50 | NQ |
| HQC | 95.5 | 63.6 | 95.5 | 92.1 | 77.8 | 73 | 66.7 | HQ |
| PQC | 122.1 | 85 | 122.4 | 117.5 | 103.2 | 95.3 | 88.9 | PQ |
Core advantage
1. Efficient rock breaking: High-frequency impact + rotary cutting, efficiency for hard rock and brittle strata increases by 30% - 80%, significantly reducing core blockage.
2. Deep hole compatibility: Specifications cover SYC75/SYC95, compatible with Q series (NQ/HQ) and S75A/S95A drill pipes, suitable for medium to deep holes up to 2000m.
3. Cost reduction and efficiency improvement: Extending drill bit lifespan, increasing drilling intervals, and reducing accident rates, resulting in a 20%+ reduction in drilling costs.
4. Green exploration: No core extraction during drilling, long drilling time, suitable for complex conditions such as metal mines, coal-bearing strata, and engineering surveys.
