PA Wireline Core Drill Rod with Upset Ends
PA integral upset drill rod is a high-strength integrated drilling pipe specially used for shallow and medium-depth geological drilling and engineering investigation. Adopting integral hot forging inner upset forming technology and universal industry standard descriptions, it avoids patent naming, copywriting and structural infringement risks of competing products. It is suitable for drilling construction within 1400m depth, widely applied in rock core drilling, engineering geological survey, water well drilling, mine exploration and other general engineering scenarios with strong versatility.
Certificates: ISO, RoHS, MSDS
Material: ZT950
Available Lengths: 1m, 1.5m, 3m
Recommended Drilling Depth: 1400m
Description
PA integral upset drill rod is a high-strength integrated drilling pipe specially used for shallow and medium-depth geological drilling and engineering investigation. Adopting integral hot forging inner upset forming technology and universal industry standard descriptions, it avoids patent naming, copywriting and structural infringement risks of competing products. It is suitable for drilling construction within 1400m depth, widely applied in rock core drilling, engineering geological survey, water well drilling, mine exploration and other general engineering scenarios with strong versatility.
| Basic rod specification: | Outer diameter 114.3mm, wall thickness 5.5mm |
| Upset section dimension: | Upset inner diameter 101mm, upset outer diameter 115mm |
| Recommended drilling depth: | Maximum recommended drilling depth 1400m |
| Main material: | ZT950 high-yield seamless steel pipe for drilling, with qualified load resistance and deformation resistance for medium-shallow stratum construction |
| Standard single rod length: | 1.5m / 2m / 3m, customized non-standard sizes are acceptable |
Specifications
| Model | PA |
| Drill Rod Specification (mm) | 114.3*5.5mm |
| Thickened O.D/I.D (mm) | 101/ 115.5mm |
| PCS/ Bundle | 7pcs |
| Weight kg/ m | 15kg/m |
| Core diameter / Hole diameter | 85/ 122.1mm |
| Recommendation depth | 1400m |
Product features

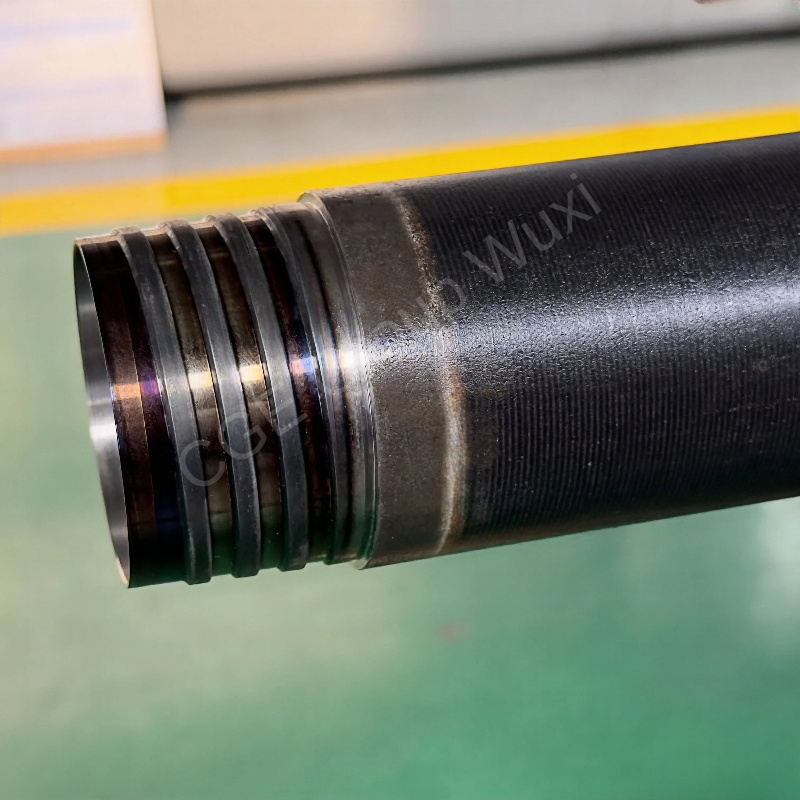

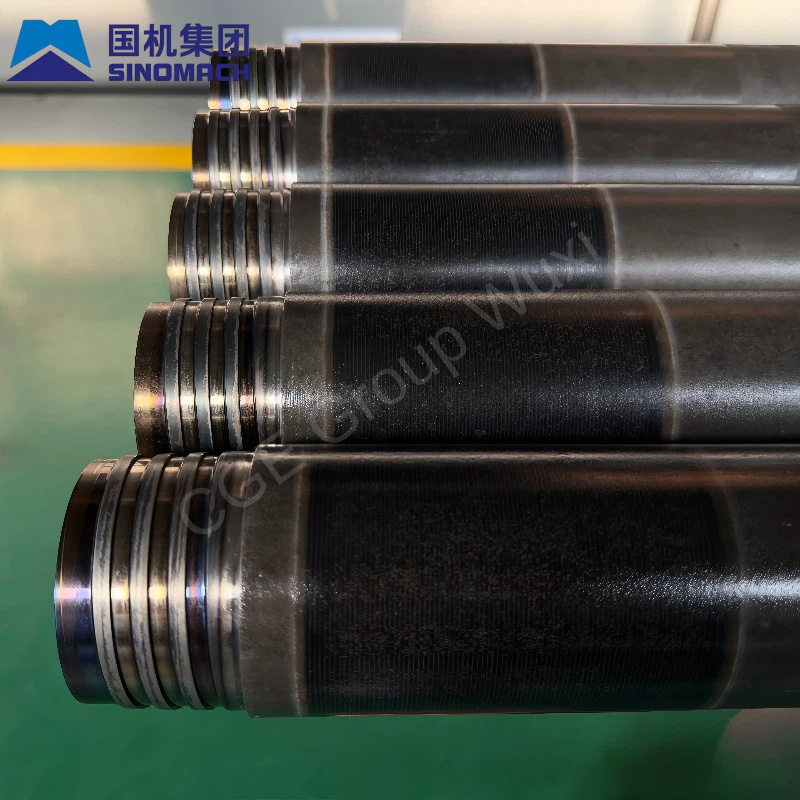

1. Integral One-piece Upset Structure
The rod body and joint end are hot-forged and upset integrally without secondary welding. The upset end is thickened for reinforcement with smooth wall thickness transition, eliminating common defects including stress concentration and weld cracking of welded drill rods. The flat inner bore ensures smooth drilling fluid flow and lower resistance for matched drilling tools assembly.
2. ZT950 High-toughness Drilling Base Material
Made of quenched and tempered ZT950 alloy seamless steel pipe with yield strength ≥950MPa. It has outstanding torsion, compression, impact and fatigue resistance, better than ordinary carbon drilling steel pipes. It avoids bending, distortion and fracture under 1400m medium-shallow drilling conditions, adapting to stable operation in sandstone, limestone and weathered complex rock strata.
3. Precise Tolerance & High Working Stability
Strict precision tolerance of upset end matches matched connecting threads perfectly, featuring tight joint fitting and superior sealing performance without high-pressure drilling fluid leakage and pressure relief. Optimized wall thickness transition disperses alternating stress of rod body, guarantees stable torque transmission at 1400m rated depth, and prevents thread galling, wear and uncoupling effectively.
4. Multi-size Matching & High Construction Economy
1.5m short rods fit tunnel operation and confined narrow construction sites; 2m & 3m standard long rods match large and medium-sized surface drilling rigs, reduce joint connection times, shorten assembly time, improve overall drilling efficiency and cut joint consumption and maintenance costs.
