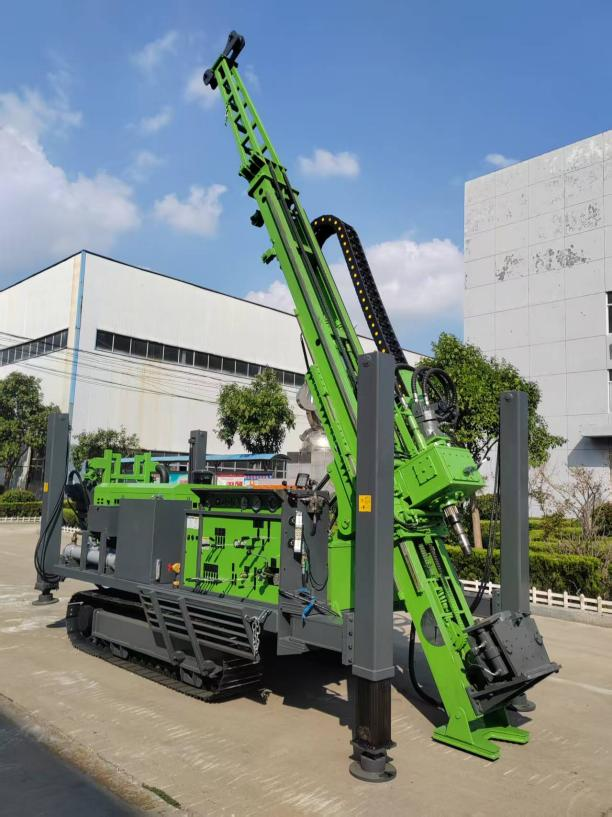

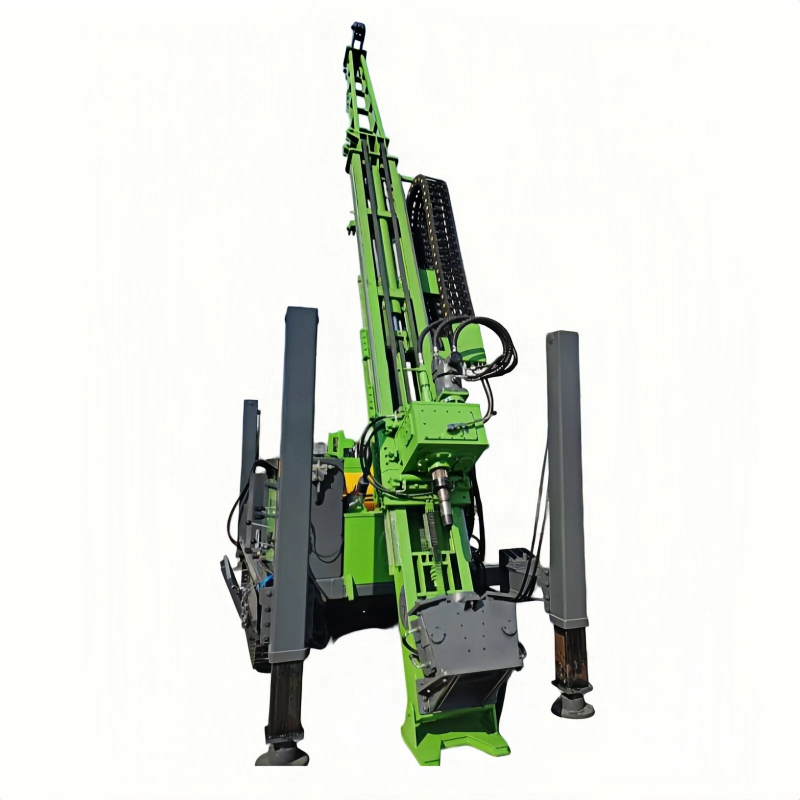

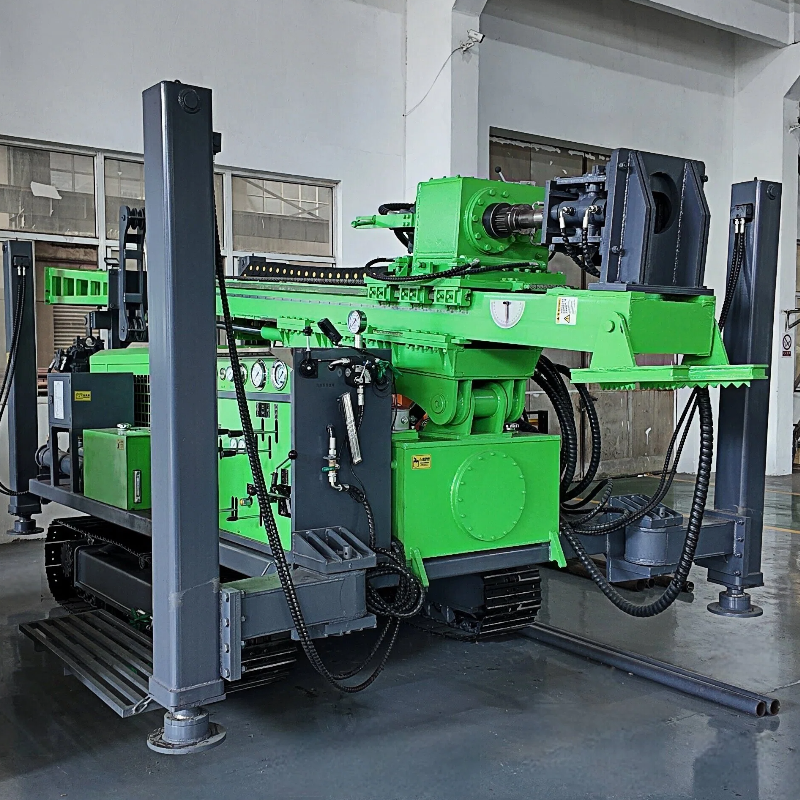

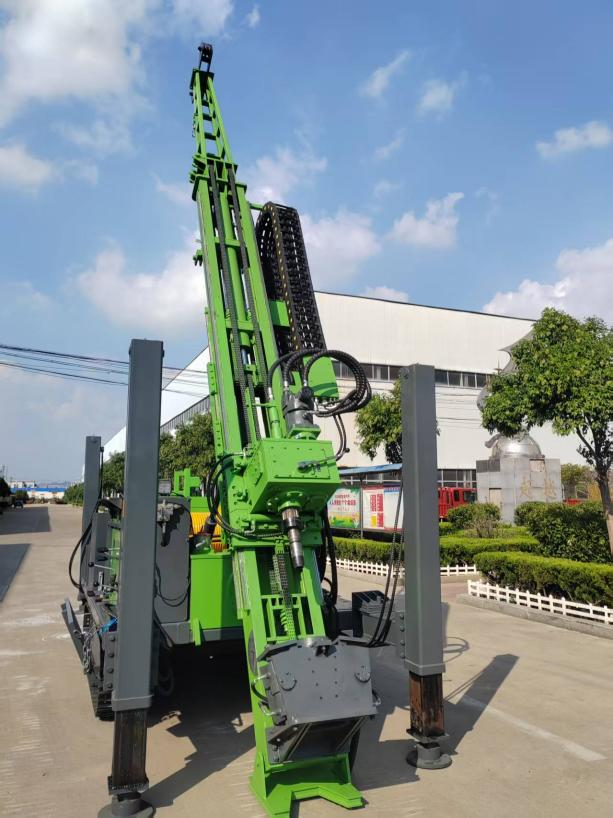

JY - 1600 Full - hydraulic Core Drilling Rig
The JY - 1600 Full - hydraulic Core Drilling Rig is mainly applicable to the drilling of solid ore deposits. It can also be used for engineering geology, shallow - layer oil, natural gas, and groundwater drilling, as well as for engineering boreholes such as tunnel ventilation, drainage, and dam grouting.
Description
The JY - 1600 full - hydraulic core drilling rig is primarily applicable for drilling solid ore deposits. It can also be utilized for engineering geology, shallow - layer oil, natural gas, and groundwater drilling, as well as for engineering boreholes like tunnel ventilation, drainage, and dam grouting.This drilling rig is fully hydraulically driven. The rotation of the power head is powered by an axial piston pump and an inclined - axis piston motor, featuring two mechanical gears along with stepless speed regulation, which endows it with an advanced structure.The power head is equipped with an oil - cylinder chain double - speed feeding mechanism, ensuring smooth and reliable operation. It comes with a lateral translation mechanism for the power head. The mast can be raised and lowered by an oil cylinder and can slide integrally, enabling the drilling of holes within the 45 - 90° range.The hydraulic system employs load - sensitive control, resulting in high work efficiency and a large torque.The drilling rig is furnished with devices such as a hydraulic Trojan - type gripper, hydraulic leveling legs, and a telescopic mast, which facilitate the rapid positioning of the rig.It is equipped with a wireless - controlled crawler, suitable for a variety of terrains. This allows for the control of the rig's crawling within a safe distance, preventing potential sudden hazards.

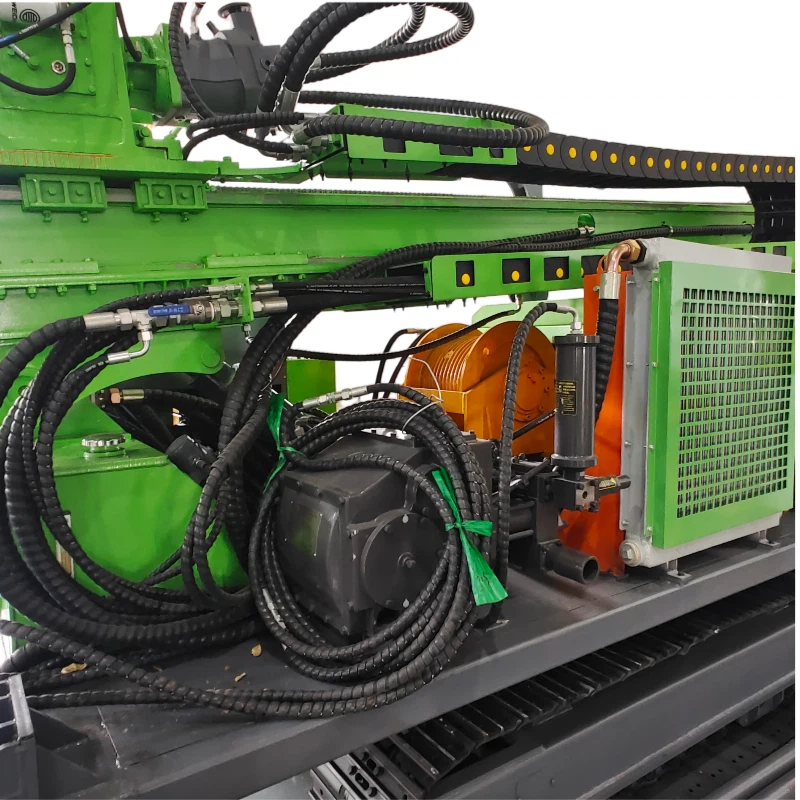

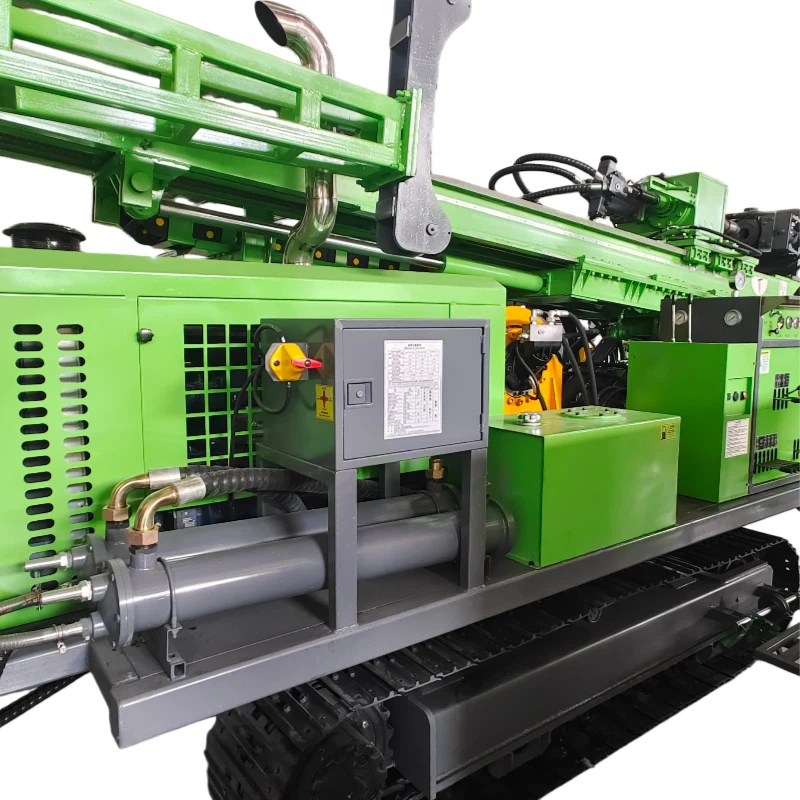

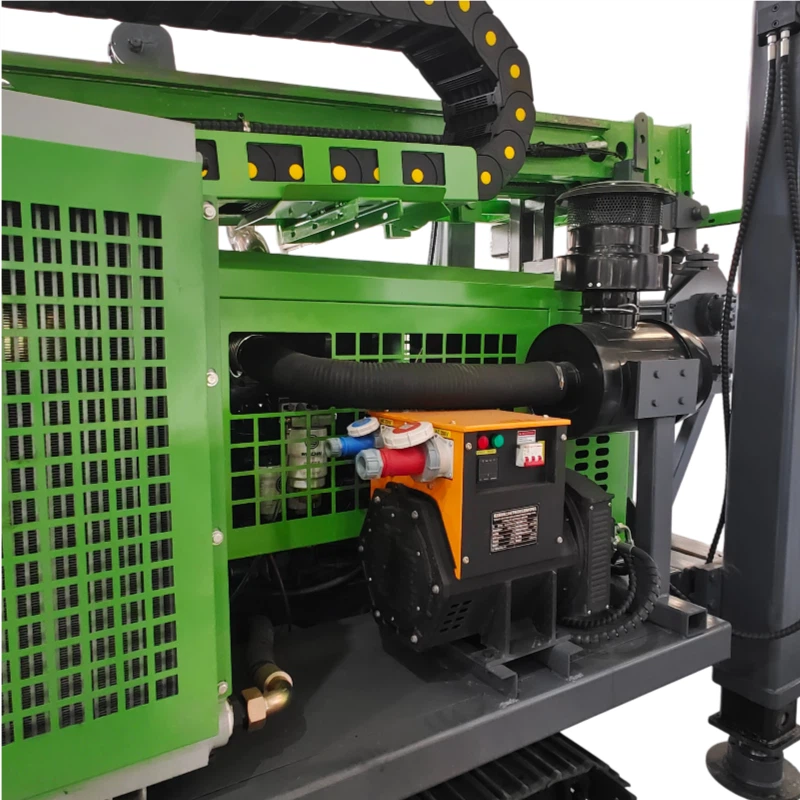

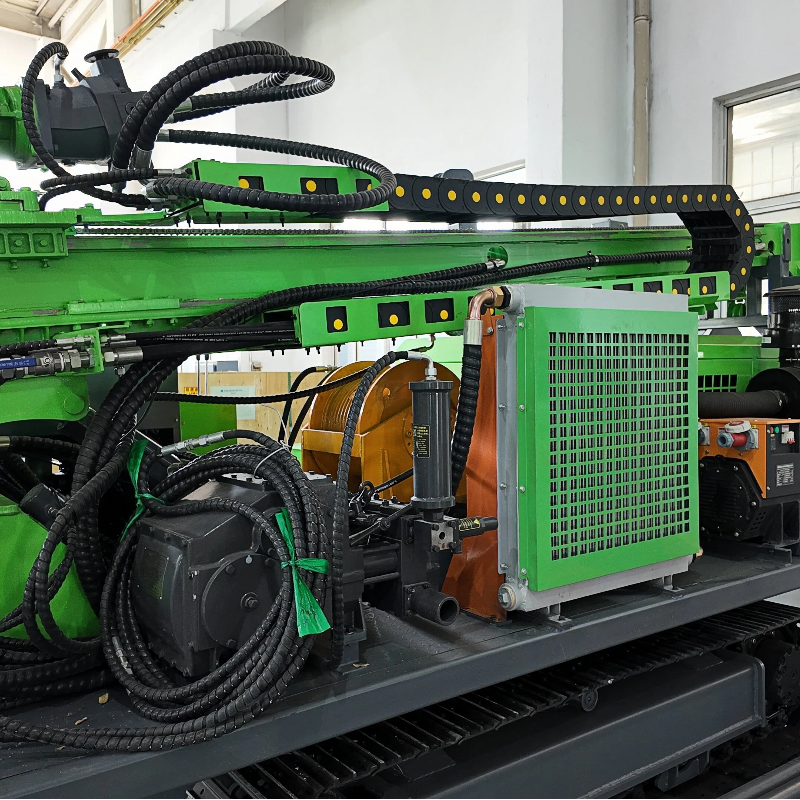

Parts List: JY - 1600 Full - hydraulic Core Drilling Rig; Hydraulic winch; BW - 250 Three - cylinder Mud Pump (Elephant brand); 140 kw Shandong Weichai 6 - cylinder engine; Air - cooled oil fan + Water - cooled system; Remote - controlled walking / Steel crawler chassis; 16KW Hydraulic generator; Hydraulic Trojan - type gripper.
Specifications
| Rig type | JY-1600 |
| weight | 10000kg |
| Dimension(transport) | 5900*2100*2400mm |
| Dimension(working) | 5900*2650*8100mm |
| Drilling angle | 45-90° |
| Drilling depth BTW（BQ） | 1800m |
| Drilling depth NTW (NQ) | 1600m |
| Drilling depth HTW (HQ) | 1400m |
| Power head lifting force | 460kN |
| Power head thrust | 230kN |
| Rotary speed RPM | 0-1400rpm |
| Max,Torque | 4000N.m |
| Power head push process | 3500mm |
| Mast slip stroke | 1200mm |
| Hydraulic system configuration | Primary pump：145ml/r.32MPa |
| Auxiliary pump：145ml/r.25MPa | |
| Water cooling + Air cooling | |
| Power unit | Wei chai six-cylinder engine |
| Reel capacity of hydraulic hoist | 1600m |
| Single rope hoisting force | 30kN |
| Increase the hoisting speed | 110m/min |
| Mud pump | BW250 |
| crawler | 10T steel made, 400mm×43 sections |
| Maximum climbing Angle | 25° |
| Crawler waling speed | 2-3km/h |
Product Features
1.The drilling rig adopts a full - hydraulic drive method, with a floating main shaft and 3 - meter drill pipes.
2. The drilling rig can achieve two mechanical gears plus stepless speed regulation, and its maximum torque can reach 3500N.m.
3. It is driven by an axial piston pump and an inclined - axis piston motor.
4. It is equipped with a lateral translation mechanism of the power head. The mast can be raised and lowered by an oil cylinder and can slide as a whole, enabling the drilling of holes within the range of 45 - 90°.
