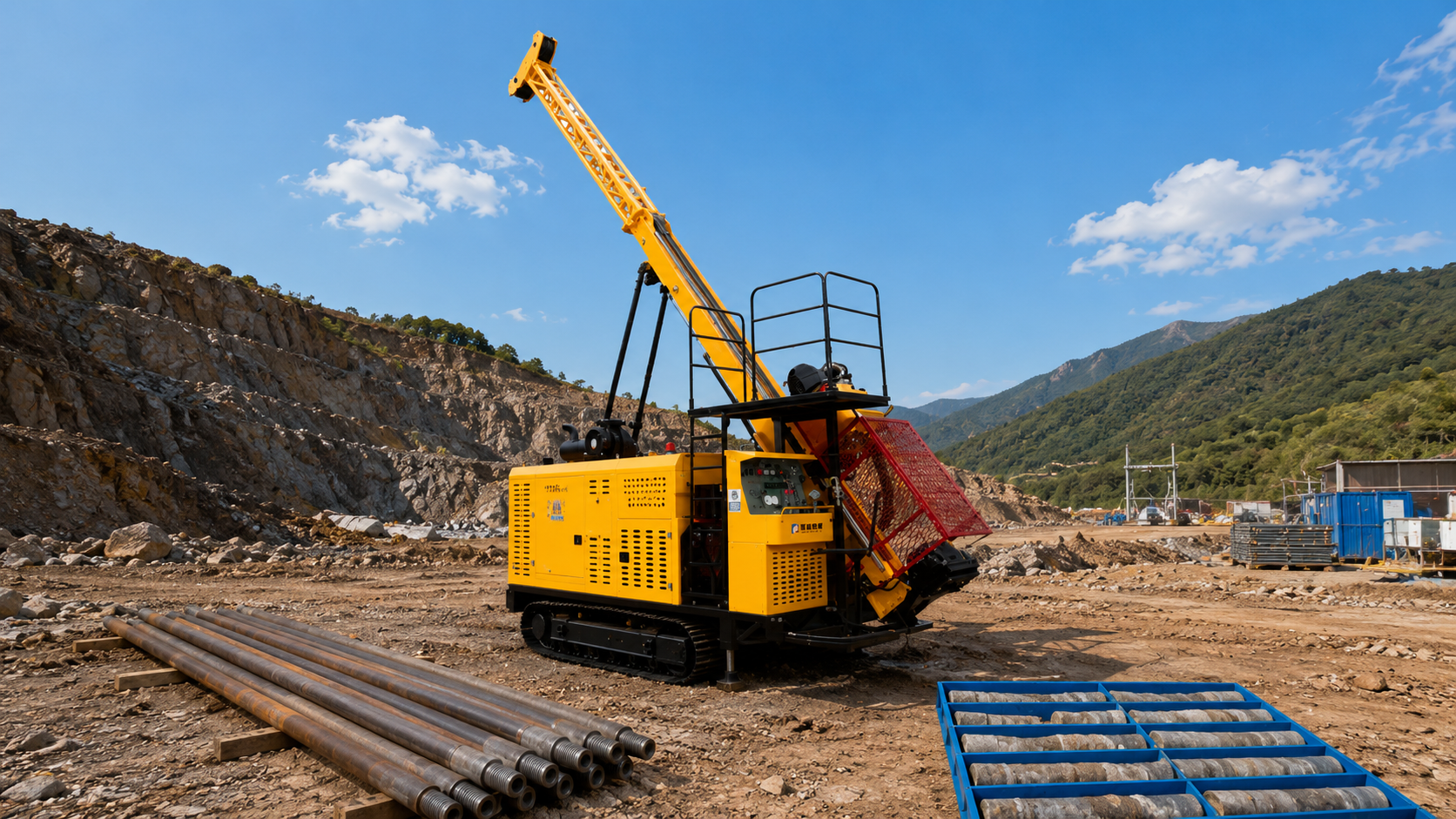

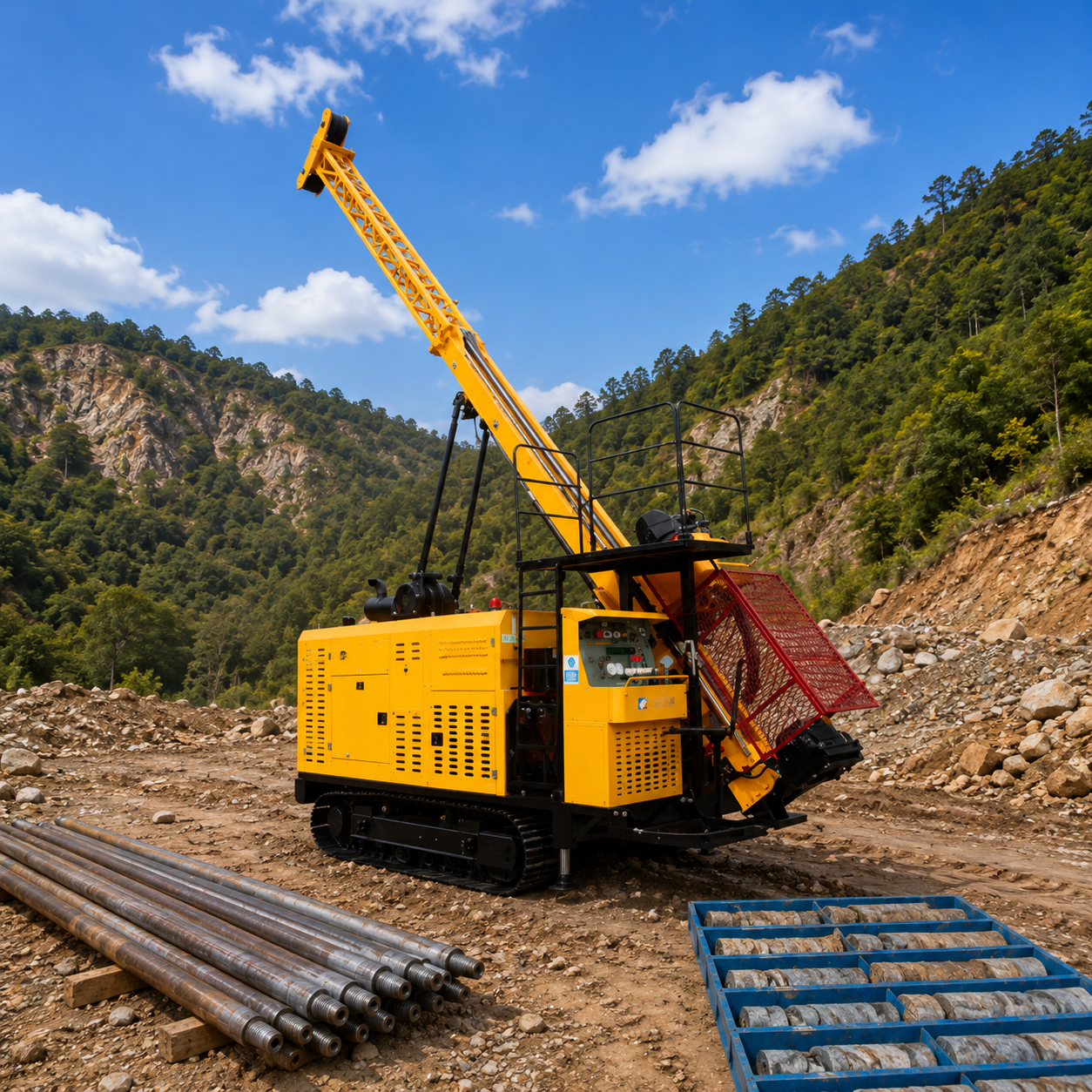

HYDX-6E Full Hydraulic Core Drilling Rig with Side Shift Function
HYDX-6E is a 2000-meter deep-hole fully hydraulic rope-driven core drilling rig. Its positioning is higher than HYDX-5E/5F. It is mainly used for BQ 2000-meter and NQ 1600-meter deep-hole coring. It features a tracked integrated design, high torque, and large lifting force. It is the main drilling machine for domestic deep and medium-level prospecting and for replacing resources in crisis mines. It is mainly applicable to core drilling that uses diamond and hard alloy for drilling, and it is also suitable for industries such as geology, metallurgy, coal mining, nuclear industry, and hydrology.
Drilling Capacity：1000-2000m
Rated Power: 179kW
Max. Rotary Speed: 1150r/min
Max. Torque: 6400N·m
Max. Lifting Capacity: 240kN
Mast: Foldable
Weight：13.5T
Transport Dimensions：5780×2240×2500mm
MOQ：1 Set
Description
HYDX-6E is a 2000-meter deep-hole fully hydraulic rope-driven core drilling rig. Its positioning is higher than HYDX-5E/5F. It is mainly used for BQ 2000-meter and NQ 1600-meter deep-hole coring. It features a tracked integrated design, high torque, and large lifting force. It is the main drilling machine for domestic deep and medium-level prospecting and for replacing resources in crisis mines. It is mainly applicable to core drilling that uses diamond and hard alloy for drilling, and it is also suitable for industries such as geology, metallurgy, coal mining, nuclear industry, and hydrology.
Technical Parameter
| Project category | Item | Parameters | Remarks |
| Drilling Capacity | BQ Rod | 2000m | φ55.6mm |
| NQ Rod | 1600m | Φ69.9mm | |
| HQ Rod | 1300m | φ88.9mm | |
| PQ Rod | 1000m | Φ114.3mm | |
| Diesel Engine | Model | Cummins 6CTA8.3-C240 | Optional Cummins QSB5.9-C210 |
| Rated Power | 179kW | ||
| Rated Speed | 2200r/min | ||
| Drill Head | Max. Rotary Speed | 1150r/min | |
| Max. Torque | 6400N·m | ||
| Speed Range | 157～359r/min | Grade I | |
| 509～1150r/min | Grade Ⅱ | ||
| Corresponding Torque | 6400～2805N·m | Grade I | |
| 1978～865N·m | Grade Ⅱ | ||
| Spindle I.D. | 121mm | ||
| Translational Distance | 510mm | ||
| Feeding Mechanism | Feeding Stroke | 3800mm | |
| Max. Lifting Capacity | 240kN | ||
| Max. Feeding Power | 120kN | ||
| Mast | Total Height | 10.8m | |
| Adjusting Angle | 0～90° | ||
| Drilling Angle | 45～90° | ||
| Sliding Stroke | 1100mm | ||
| Main Hoist | Single-Wire Hoisting Capacity | 120kN | 1st Layer |
| Lifting Speed | 44m/min | 1st Layer | |
| Length of Steel Rope | 60m | ||
| Dia. of Steel Rope | 22mm | ||
| Wire-line Winch | Single-Wire Hoisting Capacity | 12kN | 1st Layer |
| Lifting Speed | 130m/min | 1st Layer | |
| Length of Steel Rope | 1800m | ||
| Dia. of Steel Rope | 6mm | ||
| Mud Pump | Model | BW-250 | |
| Max. Displacement | 250L/min | ||
| Max. Pressure | 6MPa | ||
| Orifice Clamp | Applicable Rods | BQ、NQ、HQ、PQ | |
| Via Diameter | Φ154mm | ||
| Crawler Chassis | Traveling Speed | 1.5～2.5km/h | |
| Climbing Capacity | ≤30° | ||
| Overall Dimensions (L×W×H) | Working Dimensions | 4635×2240×10820mm | |
| Transport Dimensions | 5780×2240×2500mm | ||
| Weight | Main Machine | 13.5t |
Product Features
Main structural features
1.The main hydraulic components are selected from internationally renowned brands;
2. The power head adopts a card disc structure, with lateral translation function and two mechanical speed changes, both of which are stepless speed regulation;
3. The drilling rig adopts the direct pushing method of oil cylinder for feeding;
4. The mast adopts a hydraulic cylinder for lifting and lowering, which is foldable, convenient for transportation and storage, and has a sliding grounding function;
5. The hydraulic system adopts load sensitive control, and the power head rotation adopts a dual motor closed circuit, which has high working efficiency and large torque;
6. The mast is equipped with upper and lower straightening devices for inclined hole construction, and the hole opening is equipped with hydraulic clamps;
7. Equipped with a two-level work platform;
8. Users can choose from tracked, platform, or vehicle mounted models according to their needs.
