How to Avoid Thread Damage on Wireline Core Drill Rods

H1：How to Prevent Thread Damage of Wireline Core Drill Rods | Extend Drill String Service Life

Wireline core drill rod thread galling, tooth chipping and root cracking are top causes of down hole accidents, unplanned downtime and high replacement costs in mineral exploration and deep geological coring projects. For BQ, NQ, HQ, PQ wireline coring operations, thread failure often comes from improper operation, poor onsite maintenance or low precision joint manufacturing. CGE Group Wuxi Drilling Tools shares practical guidelines to protect threaded connections, together with our DCDMA standard wireline core drill rod solution for long life deep hole drilling.

Main Causes of Wireline Drill Rod Thread Damage

Most thread failures happen from these field conditions:

- Misaligned stabbing and forced make up without pre engagement

- Incorrect make and break torque: over torque deforms thread profile; under torque triggers vibration induced galling

- Dust, cuttings and mud contaminating thread surfaces without cleaning

- Missing or poor grade thread compound leading to dry friction

- Excessive rotation speed, weight on bit and hole deviation bringing heavy lateral shock load

- Low precision threads, insufficient heat treatment and defective thread root structure

Practical Tips to Protect Wireline Core Drill Rod Threads

1. Align before connection

Manually turn several threads by hand before applying hydraulic breakout tongs. Never force misaligned joints. Remove sand and rock debris from pin and box ends every time before make up.

2. Apply proper thread compound

Coat full thread surface with dedicated thread lubricant. Avoid onsite dirt mixing into compound to prevent abrasive wear.

3. Follow manufacturer recommended torque

Strictly adopt rated torque for BQ / NQ / HQ / PQ wireline core drill rods. Over tightening causes permanent thread deformation; loose joints generate impact load underground.

4. Optimize drilling parameters

Control rotation speed and weight on bit in fractured or mixed hard soft formations. Keep hole deviation low to reduce side friction against drill string.

5. Regular visual inspection

Check for galling, burrs and cracks on pin, box and thread root during tripping out. Mark and isolate worn drill rods instead of running defective joints downhole.

CGE Group Wuxi Wireline Core Drill Rod: Built in Protection Against Thread Failure

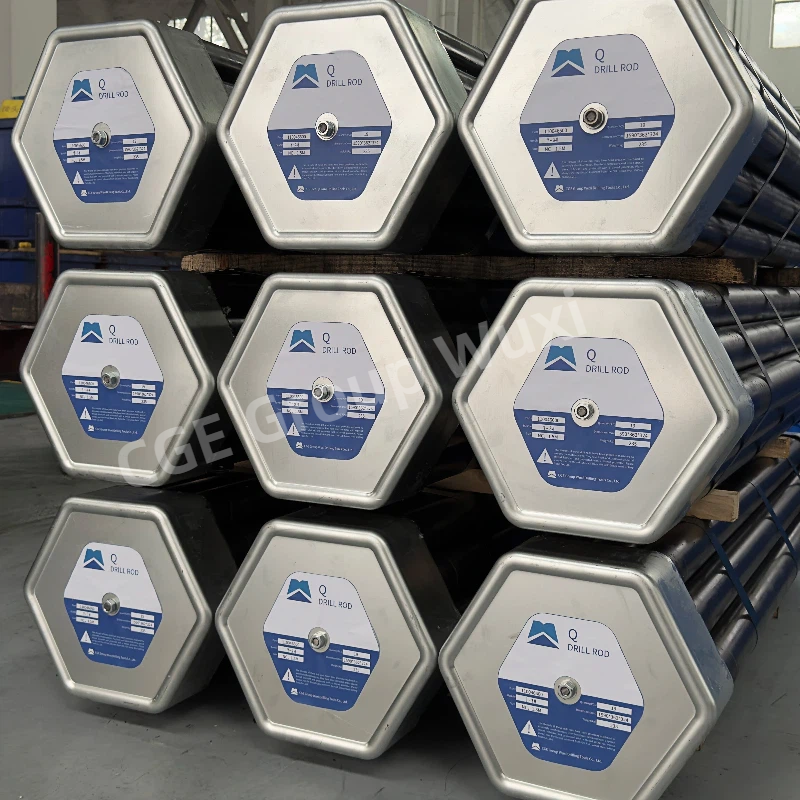

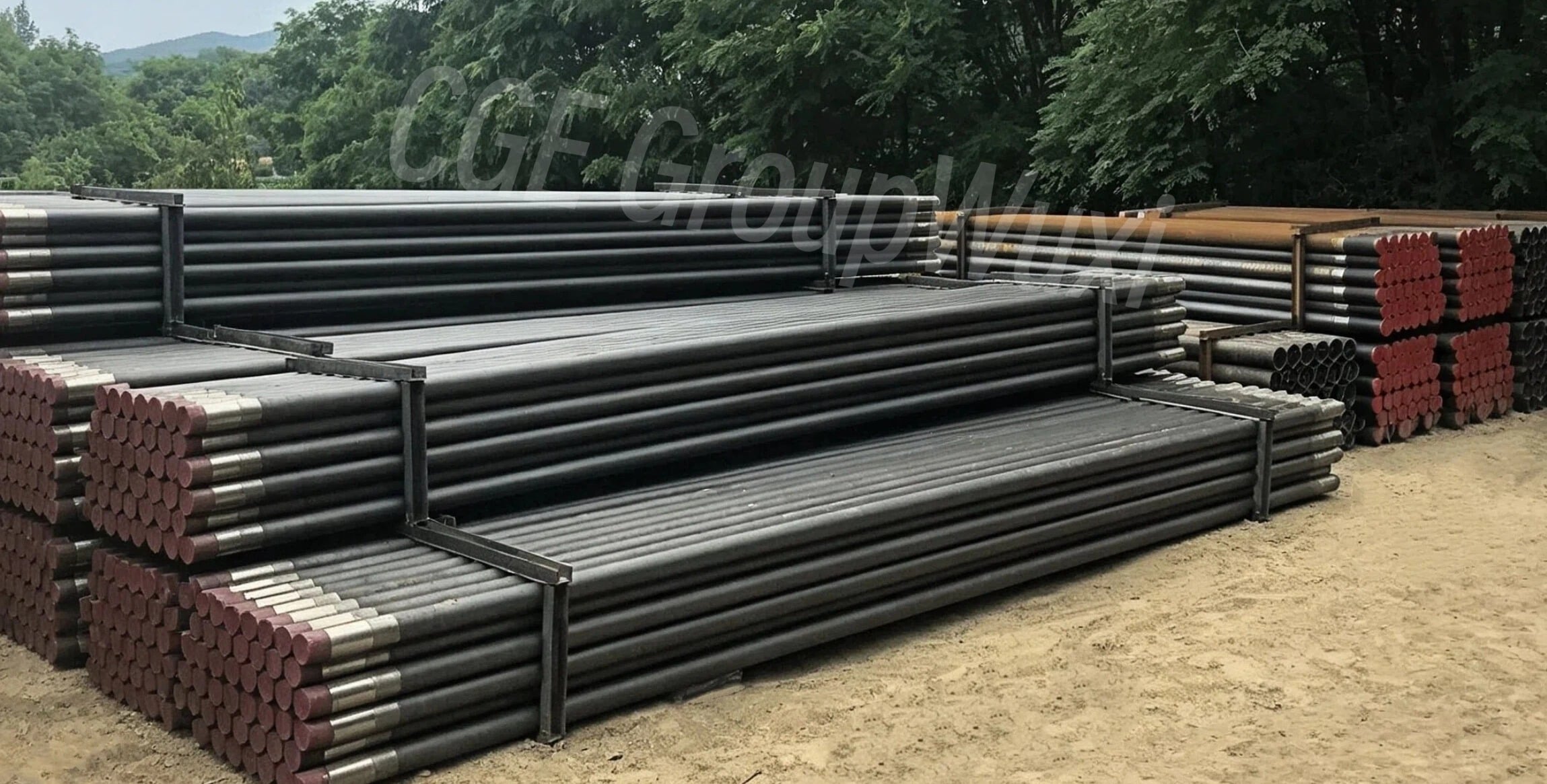

Our wireline core drill rod, manufactured per DCDMA international standard, adopts ZT950 high strength seamless steel pipe, CNC precision machined trapezoidal threads and joint hardening heat treatment. Thread root with annular sealing grooves reduces erosion from high pressure drilling fluid, resisting fatigue cracking under repeated make and break cycles. High precision honing ensures straight rod body to lower lateral vibration in deep holes. Full sizes cover BQ, NQ, HQ, PQ for wireline coring systems, compatible with overshot, inner tube assemblies and diamond core bits.

Key advantages: anti galling threaded joints, high torsion resistance, long service life, suitable for mineral exploration, hydrogeological survey and deep scientific coring.

Key Takeaway

Good field operation plus high quality DCDMA compliant wireline core drill rod will greatly cut thread related failures, minimize site downtime and lower your total drilling cost.

Contact CGE Group Wuxi Drilling Tools for wireline core drill rod catalog, technical support and wholesale quotation for your geological coring project.
