N/WL W-Profile Rod Shoe Impregnated Diamond for Wireline Drilling
Certification: ISO9001
Minimum Order Quantity: 2PCS
Price: Negotiation
Packaging Details: Wooden box/Carton box,customized
Delivery Time: According to the order
Payment Terms: L/C, T/T, Western Union paypal
Supply Ability: 999+
Brand:
CGE Group
Spu:
N/WL W-profile rod shoe (75.31mm/60.2mm)
Description
Highlight: surface set diamond core bits, casing shoe bit
Use: |
Ensure Inside Wall Is Smooth And Large Enough For Free Passage Of Coring Drilling String. |
Standard: |
DCDMA Standard/ Q Standard |
Advantage: |
Factory Price, Wear Resistant, Optimum Penetration Rates And Bits Life, High Performance Oem Available |
Service: |
OEM&ODM, (within 24hours)quick Response, ODM, OEM, Customized |
Name: |
N/WL W-profile Rod Shoe Impregnated Diamond |
N/WL W-profile rod shoe impregnated diamond_ Core Drilling Wireline drilling mineral exploration high efficiency
Detail
Casing shoe and Rod shoe
N/WL W-profile rod shoe (75.31mm/60.2mm)

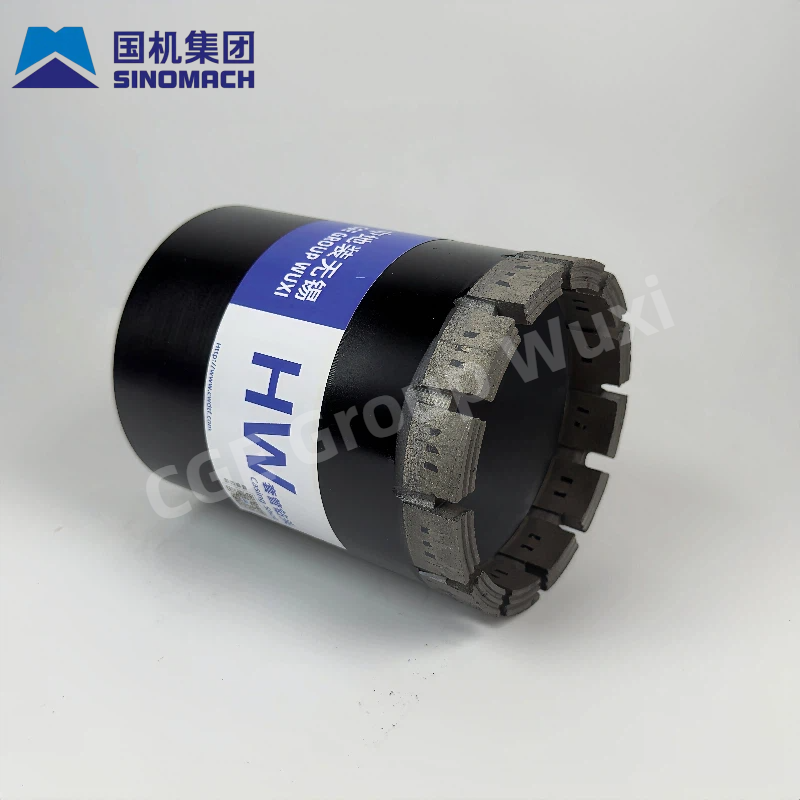

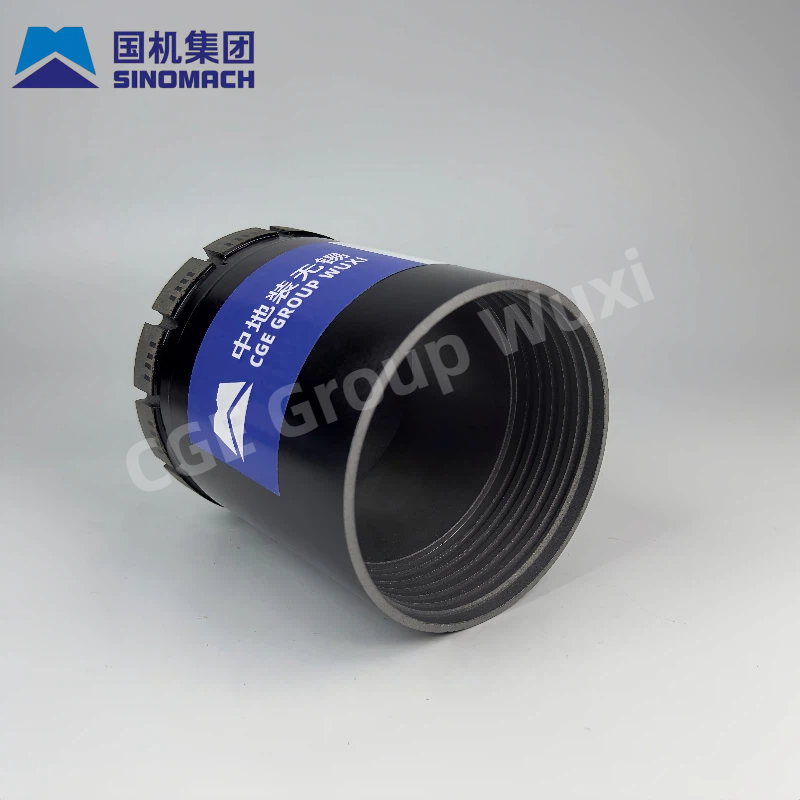

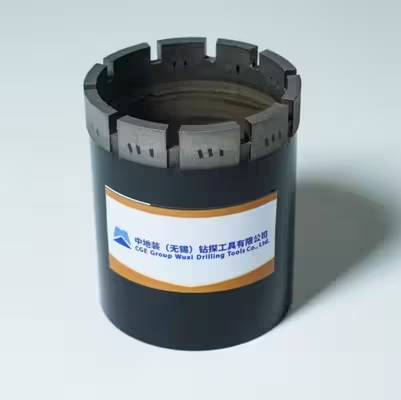

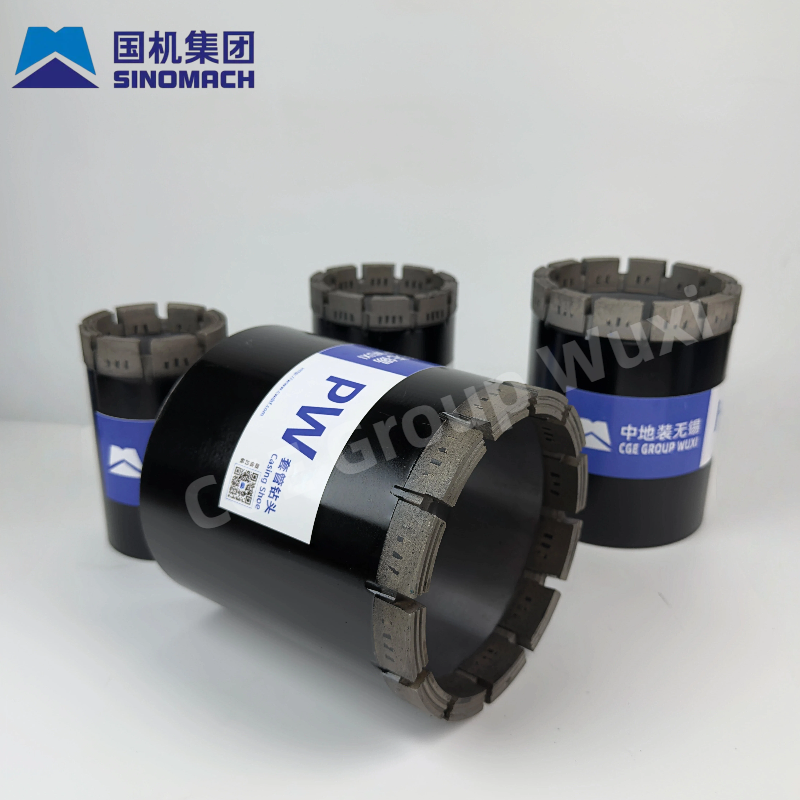

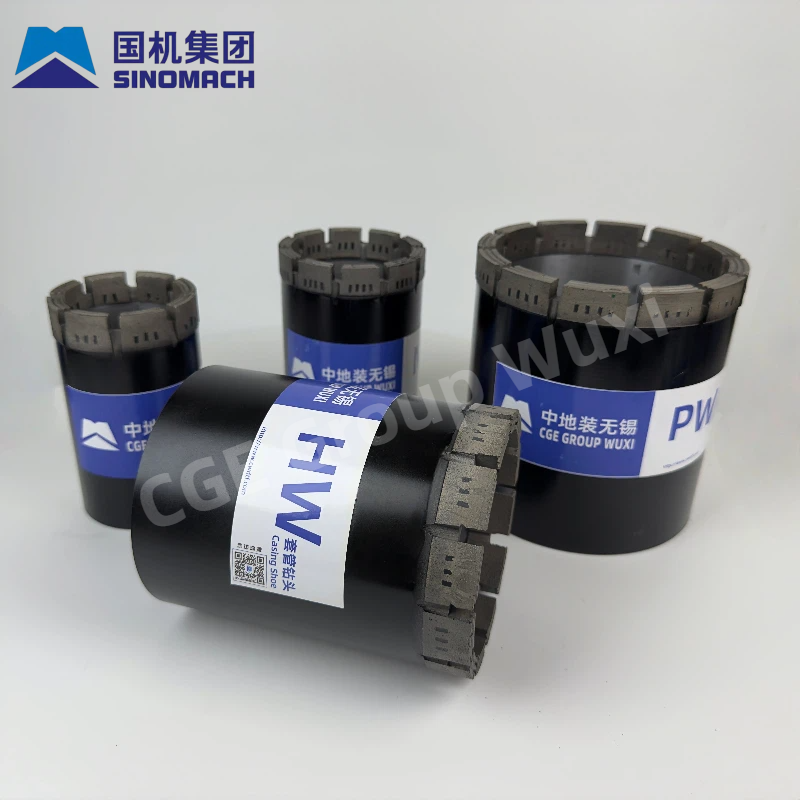

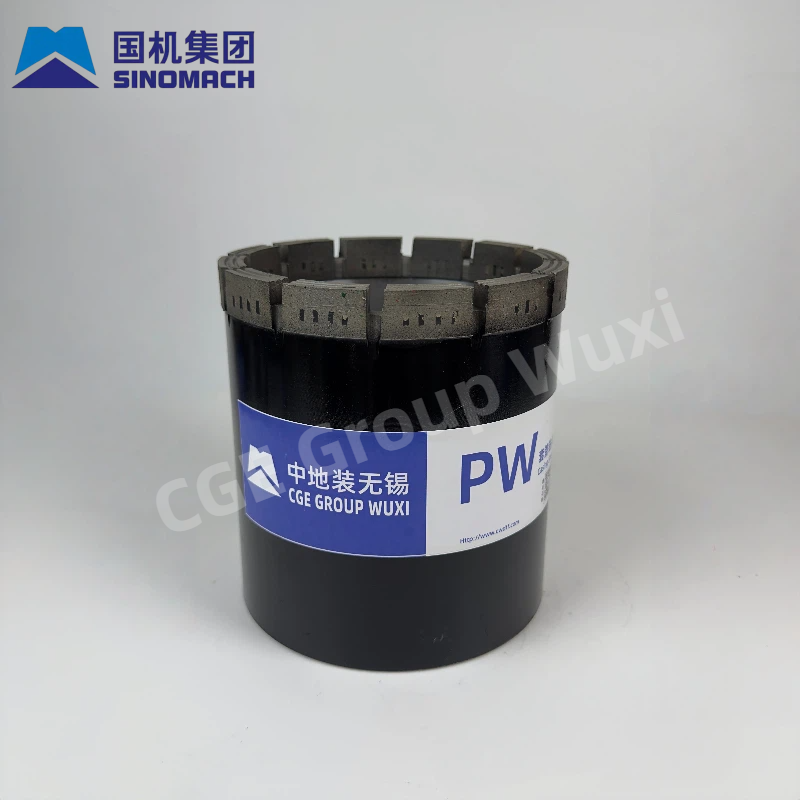

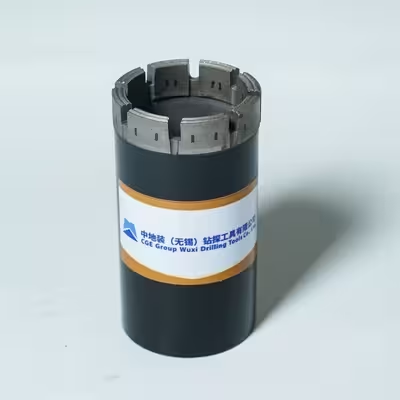

The diamond impregnated casing/rod shoe is the most commonly used as it has the widest range of application and is generally the most efficient tool for advancing casing/rod through overburden layers. We supplies casing and rod shoes with four waterway channels or multi waterway channels depending on the requirements.
We manufacture two types of Casing shoe: W-profile, Flat face profile, and can be customized .
Size
| Casing Shoe Sizes | ||||
| DESCRIPTION | Outer Diameter | Inner Diameter | ||
| Inch | mm | Inch | mm | |
| AW | 2.345 | 59.56 | 1.9 | 48.26 |
| B/WL | 2.965 | 75.31 | 2.37 | 60.2 |
| N/WL | 3.615 | 91.82 | 2.992 | 76 |
| H/WL | 4.625 | 117.48 | 3.925 | 99.7 |
| HWT | 4.625 | 117.48 | 3.925 | 99.7 |
| P/WL | 5.653 | 143.58 | 4.855 | 123.3 |
| T2-56 | 2.205 | 56 | 1.85 | 47 |
| T2-76 | 2.992 | 76 | 2.638 | 67 |
| T2-86 | 3.385 | 86 | 2.823 | 71.7 |
| T2-101 | 3.976 | 101 | 3.031 | 77 |
| T6-101 | 3.976 | 101 | 3.445 | 87.5 |
| T6-131 | 5.157 | 131 | 4.646 | 118 |
| Rod Shoes Sizes | ||||
| DESCRIPTION | Outer Diameter | Inner Diameter | ||
| Inch | mm | Inch | mm | |
| B/WL | 2.345 | 59.56 | 1.78 | 45.21 |
| N/WL | 2.965 | 75.31 | 2.37 | 60.2 |
| H/WL | 3.615 | 91.82 | 2.992 | 76 |
| P/WL | 4.75 | 120.66 | 3.985 | 101.22 |
