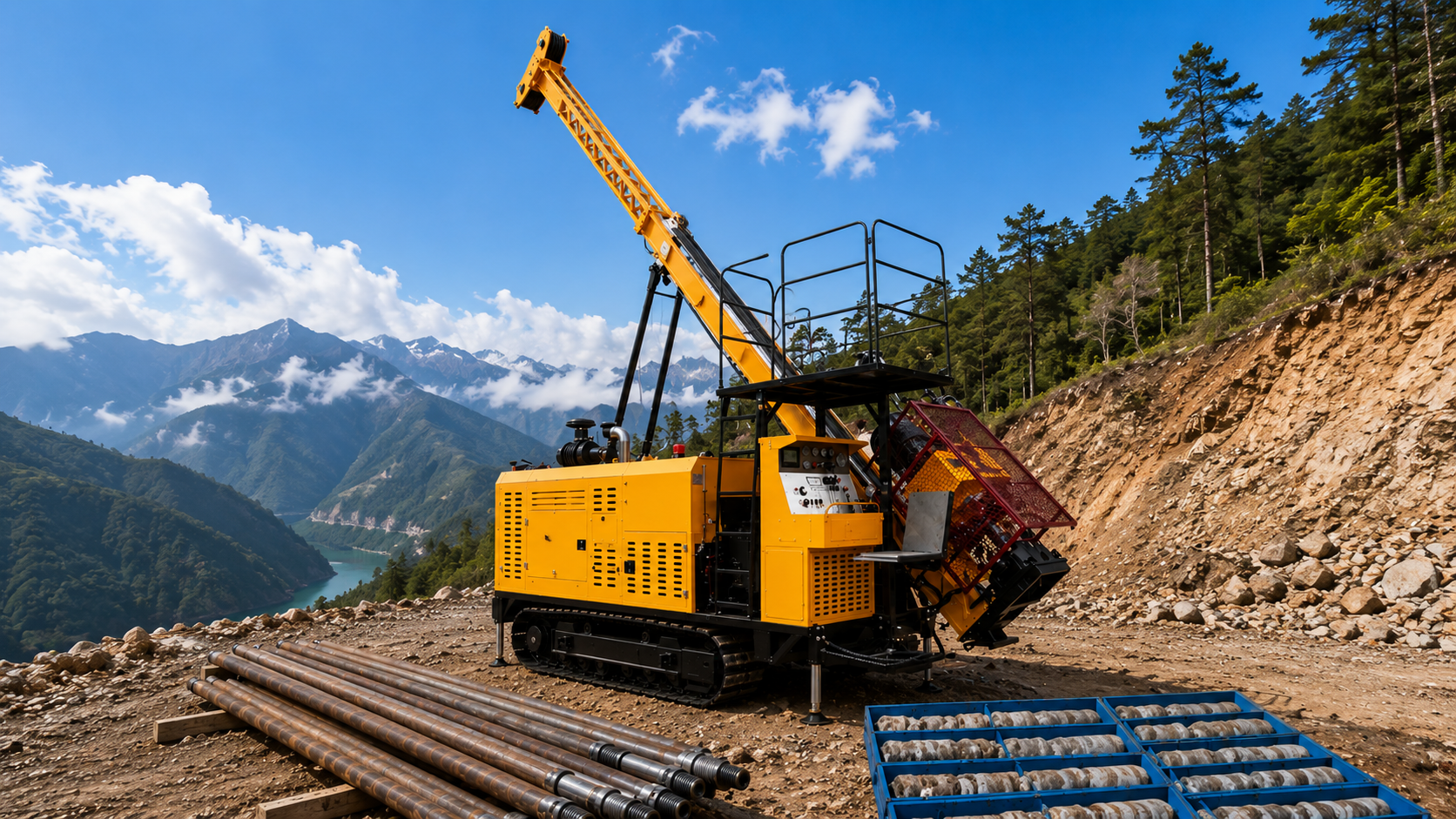

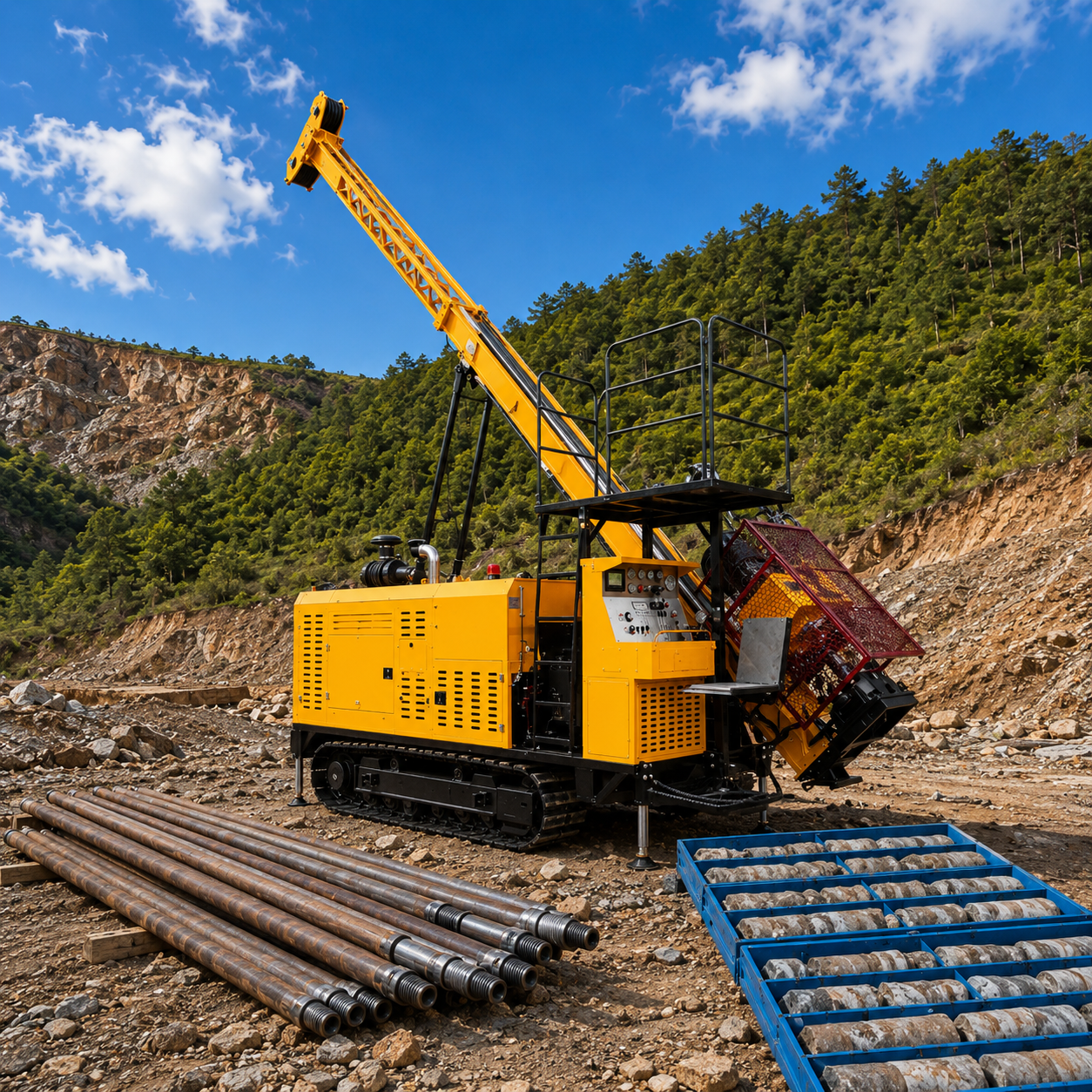

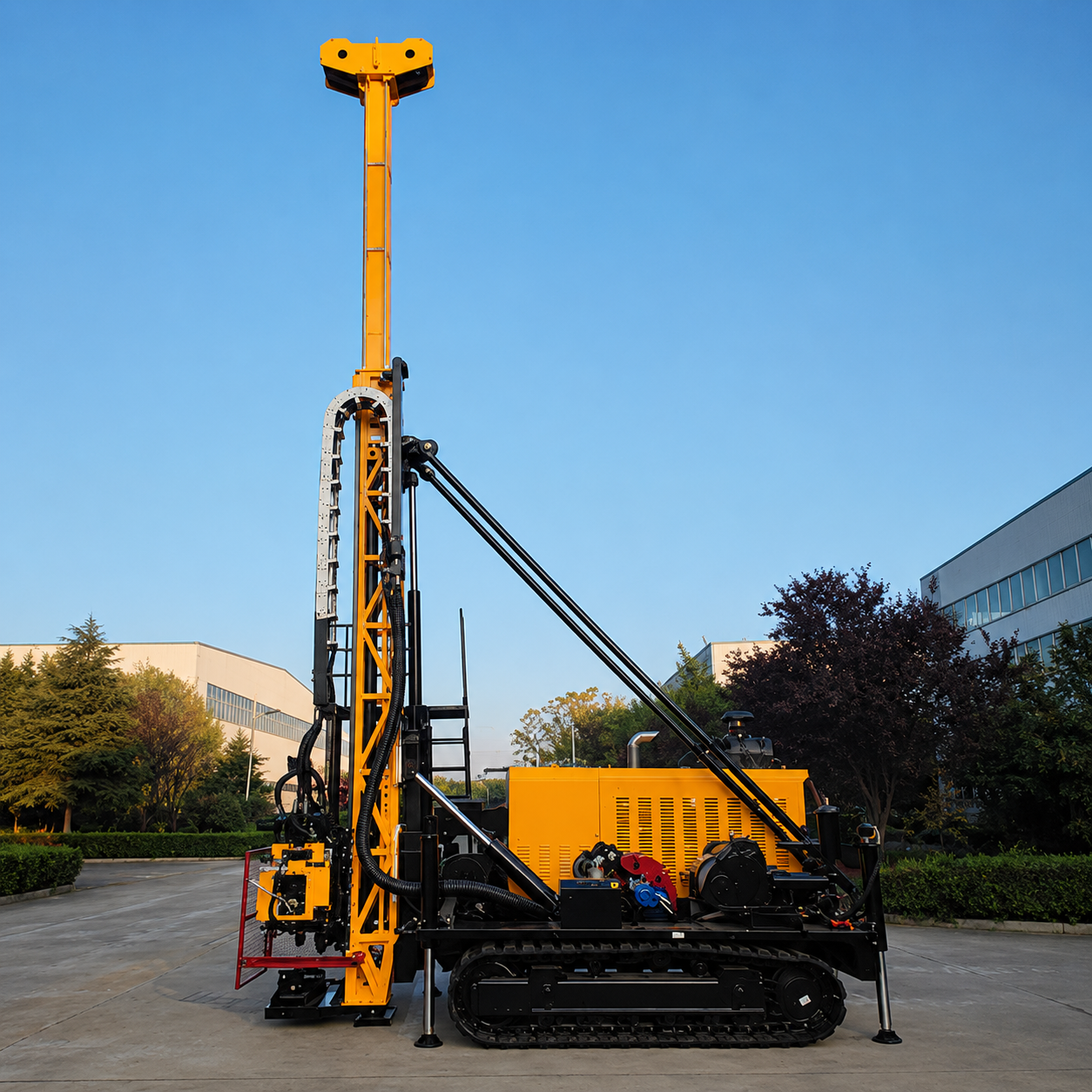

HYDX-5F Full Hydraulic Core Drilling Rig with Telescopic Mast
HYDX-5F is a 1500 m level fully hydraulic rope-lifting core drilling rig that has been upgraded based on HYDX-5E. Its core features include enhanced torque, long stroke, and high stability. It adopts a crawler-type integrated design, which is suitable for deeper, harder, and more complex strata. It is the main model for medium and deep geological exploration.
It is mainly applicable to core drilling that uses diamond and hard alloy for drilling, and it is also suitable for industries such as geology, metallurgy, coal mining, nuclear industry, and hydrology.
Drilling Capacity：680-1500m
Rated Power: 160kW
Max. Rotary Speed: 1150r/min
Max. Torque: 5900N·m
Max. Lifting Capacity: 180kN
Mast: Telescopic
Weight：13T
Transport Dimensions：6400×2240×2500mm
MOQ：1 Set
Description
HYDX-5F is a 1500 m level fully hydraulic rope-lifting core drilling rig that has been upgraded based on HYDX-5E. Its core features include enhanced torque, long stroke, and high stability. It adopts a crawler-type integrated design, which is suitable for deeper, harder, and more complex strata. It is the main model for medium and deep geological exploration.
It is mainly applicable to core drilling that uses diamond and hard alloy for drilling, and it is also suitable for industries such as geology, metallurgy, coal mining, nuclear industry, and hydrology.
Technical Parameter
| Project category | Item | Parameters | Remarks |
| Drilling Capacity | BQ Rod | 1500m | φ55.6mm |
| NQ Rod | 1300m | Φ69.9mm | |
| HQ Rod | 1000m | φ88.9mm | |
| PQ Rod | 680m | Φ114.3mm | |
| Diesel Engine | Model | Cummins 6CTA8.3-C215 | Optional Cummins QSB5.9-C210 |
| Rated Power | 160kW | ||
| Rated Speed | 2200r/min | ||
| Drill Head | Max. Rotary Speed | 1150r/min | |
| Max. Torque | 5900N·m | ||
| Speed Range | 170～341r/min | Grade I | |
| 539～1150r/min | Grade Ⅱ | ||
| Corresponding Torque | 5900～2958N·m | Grade I | |
| 1868～934N·m | Grade Ⅱ | ||
| Spindle I.D. | 121mm | ||
| Translational Distance | 465mm | ||
| Feeding Mechanism | Feeding Stroke | 3800mm | |
| Max. Lifting Capacity | 180kN | ||
| Max. Feeding Power | 90kN | ||
| Mast | Total Height | 9.8m | |
| Adjusting Angle | 0～90° | ||
| Drilling Angle | 45～90° | ||
| Sliding Stroke | 1100mm | ||
| Main Hoist | Single-Wire Hoisting Capacity | 80kN | 1st Layer |
| Lifting Speed | 44m/min | 1st Layer | |
| Length of Steel Rope | 60m | ||
| Dia. of Steel Rope | 18mm | ||
| Wire-line Winch | Single-Wire Hoisting Capacity | 12kN | 1st Layer |
| Lifting Speed | 130m/min | 1st Layer | |
| Length of Steel Rope | 1500m | ||
| Dia. of Steel Rope | 6mm | ||
| Mud Pump | Model | BW-250 | |
| Max. Displacement | 250L/min | ||
| Max. Pressure | 6MPa | ||
| Orifice Clamp | Applicable Rods | BQ、NQ、HQ、PQ | |
| Via Diameter | Φ154mm | ||
| Crawler Chassis | Traveling Speed | 1.5～2.5km/h | |
| Climbing Capacity | ≤30° | ||
| Overall Dimensions (L×W×H) | Working Dimensions | 4715×2240×9800mm | |
| Transport Dimensions | 6400×2240×2500mm | ||
| Weight | Main Machine | 13t |
Product Features
Main Structural Features
1. Main hydraulic components are selected from internationally renowned brands.
2. Drill head adopts a chuck type structure, with lateral translation function and two gear stepless speed adjustment.
3. The rig is driven by cylinder directly for feeding.
4. The mast is lifted and lowered by oil cylinder. The upper mast features retractable structure for easy transportation and storage, and is equipped with sliding grounding function.
5. Hydraulic system adopts load sensitive control, and the rotation of drill head spindle is driven by dual-motor with closed loop hydraulic circuits, with high operation efficiency and high torque.
6. Mast is equipped with centering guide in its upper and lower part for inclined hole construction conveniently. A hydraulic clamp is adopted at the position above the drilling hole.
7. Equipped with two layer working platforms.
8. According to the needs of users, crawler-type, platform-type, or truck-type could be selected.
