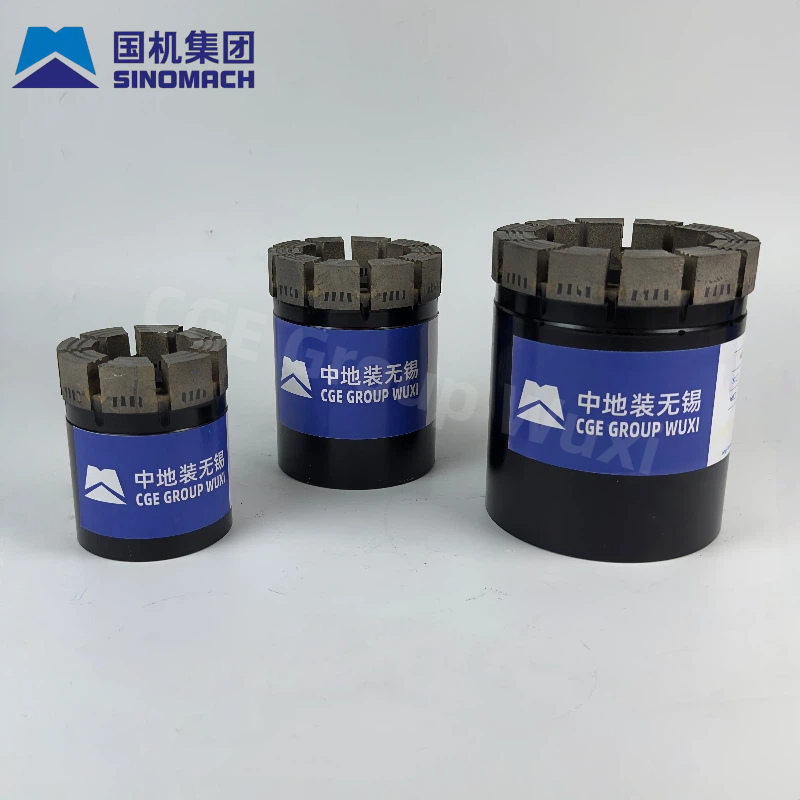

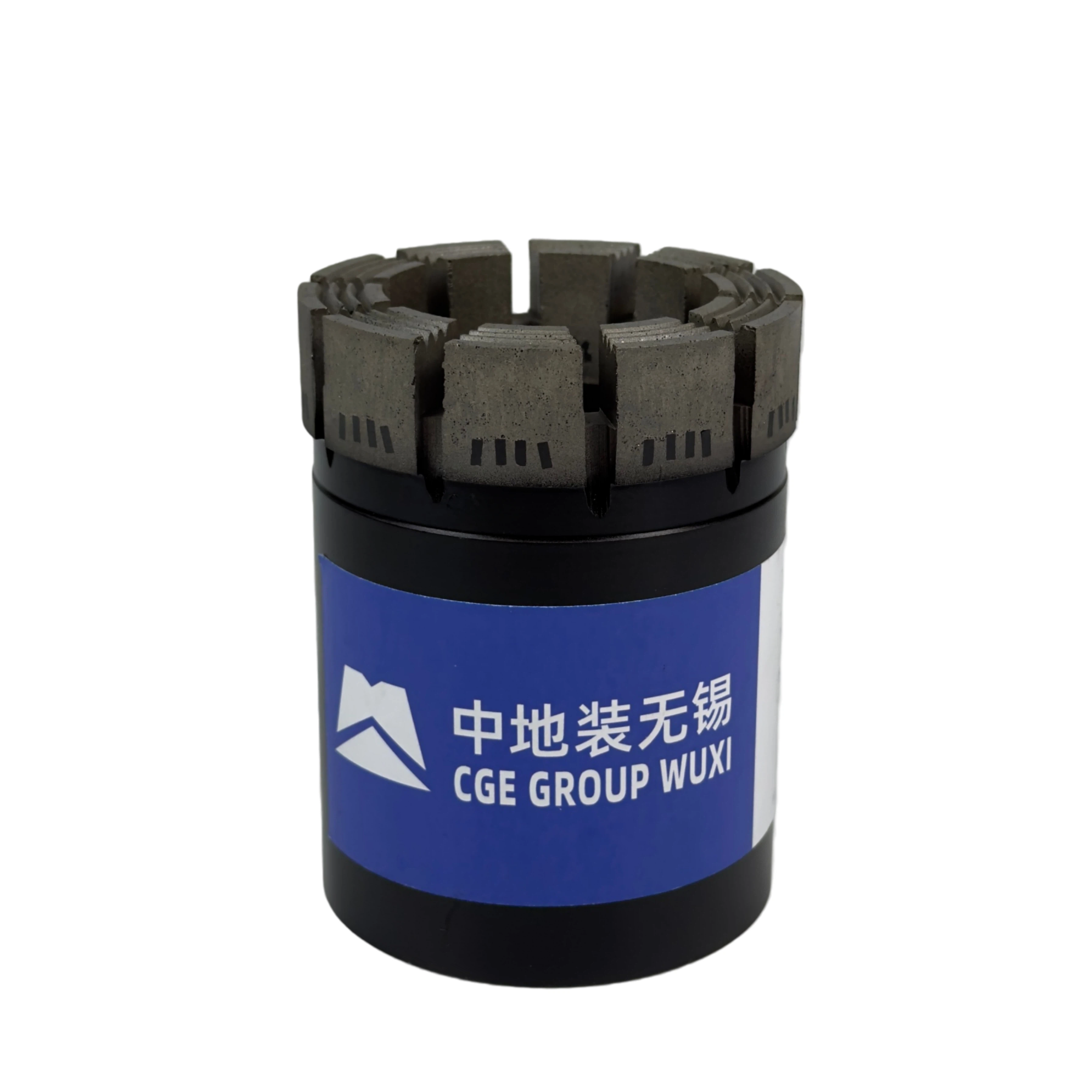

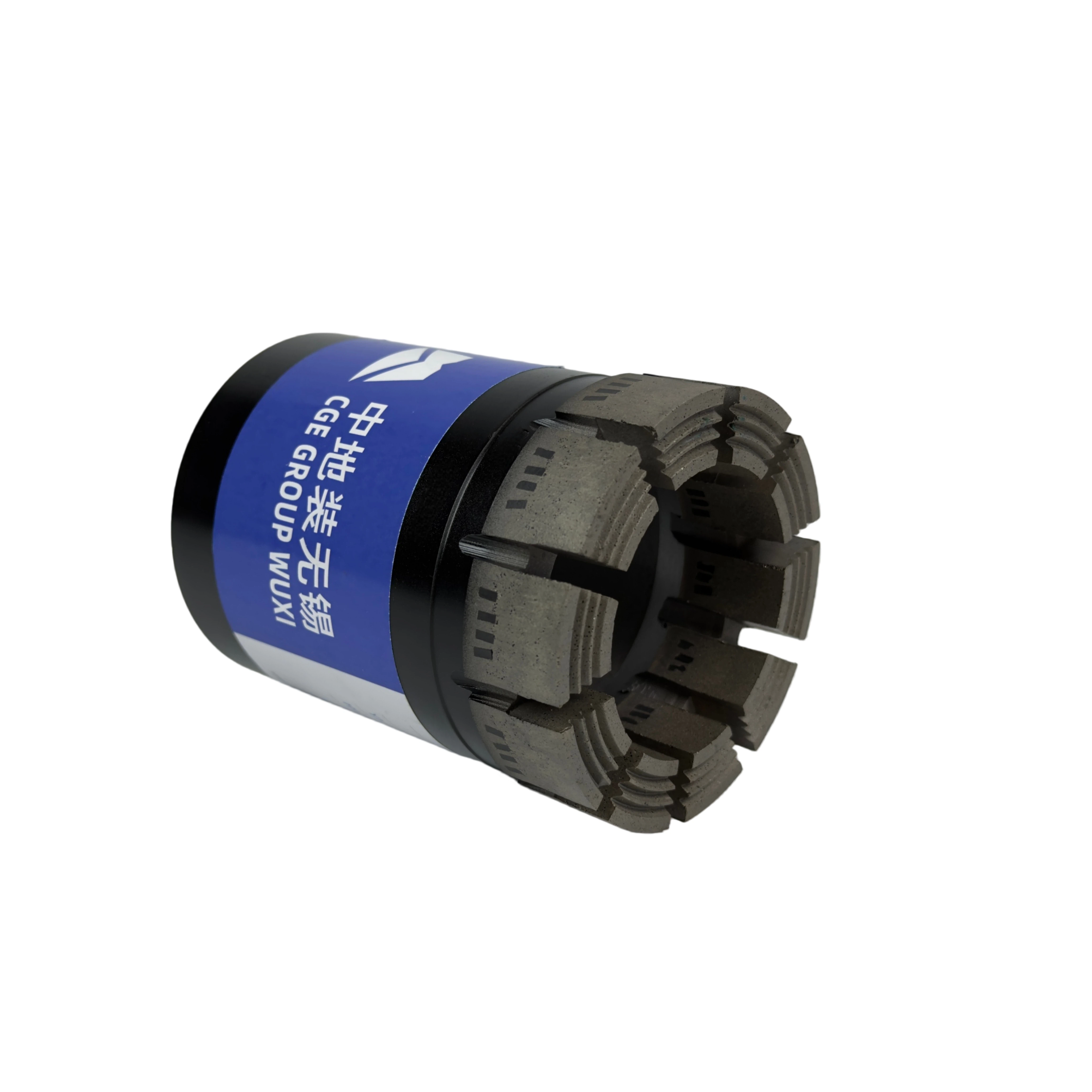

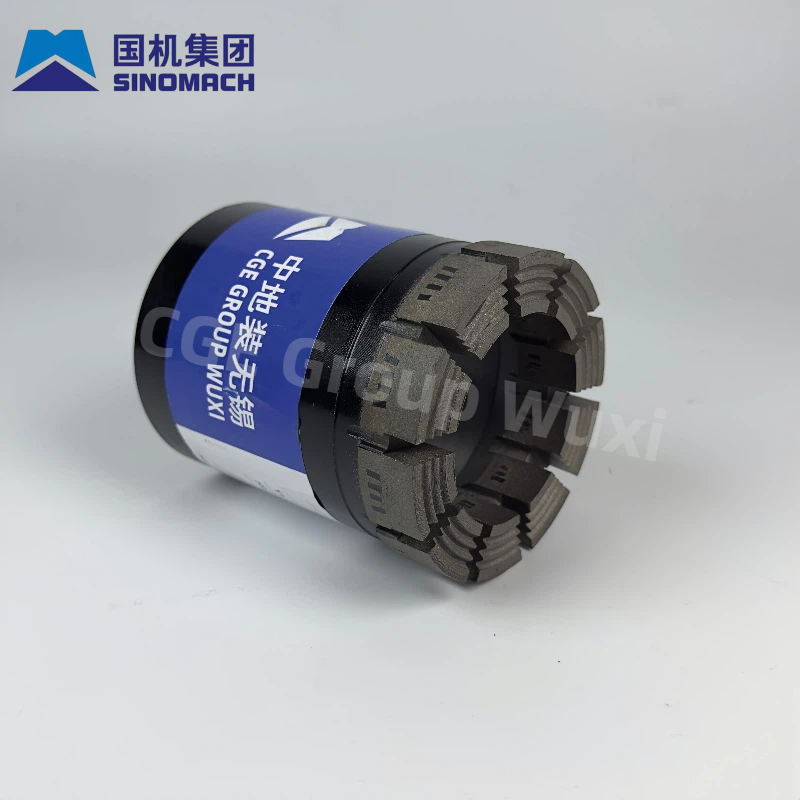

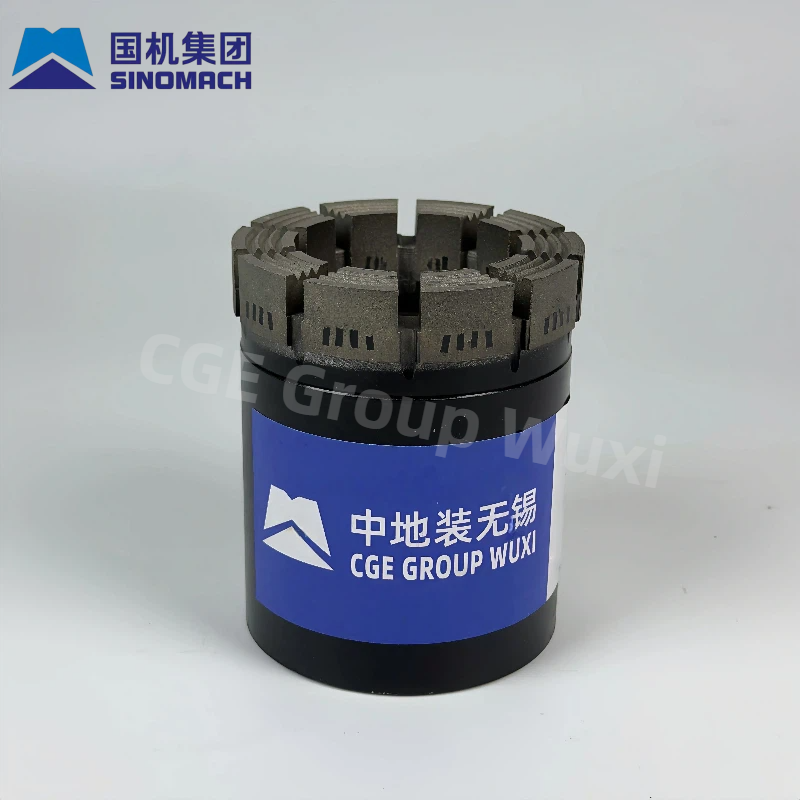

HQ Impregnated Diamond Bit Wedge type Good Fluid evacuation
Certification: ISO9001:2015
Minimum Order Quantity: N/A
Price: Negotiation
Packaging Details: Steel Belt Iron Frame Export Wooden Case
Delivery Time: 10-15 working days after payment
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Description
Application: |
For Diamond Core Drilling For Mineral Exploration |
Product Name: |
HQ Impregnated Diamond Drilling Bits |
Standard: |
DCDMA |
Avalilable Size: |
NC3（BC BC3 NC NC2 HC HC3 PC PC3） |
Core Size: |
61mm |
Usage: |
Wireline Core Drilling |
Crown Height: |
12mm 14mm 16mm |
Waterways: |
8 /10 Or As Your Requirement |
Wireline Diamond Core Drill Bits For Granite / High Performance Core Drill Bit Geological Drilling NC3
Wedge type HQ bit has a very good fluid evacuation function.
• Helps with the removal of cuttings and debris by flushing the waterways and keeping them free and clean.
Detail
The impregnated diamond bits are manufactured using high quality raw materials for optimum drilling performance. These impregnated bits present a metallic layer impregnated of diamonds on its cutting face. These impregnated bits are made by mixing fine diamonds with a metallic powder called matrix. The mixture is then subjected to heat treatment assuring the metallurgical bond of the matrix on the steel blank. To maintain optimal performance during entire bit life, it is important that matrix wear is synchronized with the diamond wear to ensure exposure of new diamonds with sharp edges.
As to the packing, it is first packaged by cartons, and then put into the plywood case.
Specification
International Standard:
-
C series: AC, BC, BC3, NC, NC2, NC3, HC, HC3, PC, PC3
-
T series: T36, TB56
-
TT series: TT46, TT56
-
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
-
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
-
B series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
-
MLC series: NMLC, HMLC
-
LTK series: LTK48, LTK60
Application
Our impregnated bits matrices can be selected according to the chart below
|
Series Number |
Name of Rock |
| 1 | sand, soft shale, chalk, marly shale, med-hard limestone ,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist |
| 2-3 | soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone |
| 4-5 | claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone |
| 6-7 | med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite |
| 7-8 | dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite |
| 8 | dolomite,marble,peridotite,andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt |
| 9-10 | andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite |
| 10-11 | magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite |
Technical Parameters
| SIZE | BIT OD Hole Diameter | BIT ID Core Diameter | ||
| inches | mm | inches | mm | |
| AQ | 1.870/1.880 | 47.50/47.75 | 1.057/1.067 | 26.85/27.10 |
| BQ | 2.340/2.350 | 59.44/59.69 | 1.428/1.438 | 36.27/36.53 |
| BQ3 | 2.340/2.350 | 59.44/59.69 | 1.315/1.325 | 33.40/33.65 |
| NQ | 2.960/2.970 | 75.18/75.44 | 1.870/1.880 | 47.50/47.75 |
| NQ2 | 2.960/2.970 | 75.18/75.44 | 1.990/2.000 | 50.65/50.80 |
| NQ3 | 2.960/2.970 | 75.18/75.44 | 1.770/1.780 | 44.96/45.21 |
| HQ | 3.755/3.770 | 95.38/96.00 | 2.495/2.506 | 63.38/63.63 |
| HQ3 | 3.755/3.770 | 95.38/95.57 | 2.401/2.411 | 60.99/61.24 |
| PQ | 4.795/4.815 | 121.80/122.30 | 3.340/3.350 | 84.84/85.09 |
| PQ3 | 4.795/4.815 | 121.80/122.30 | 3.265/3.275 | 82.93/83.19 |
