Vermeer HDD Drill Pipe One Piece Upset Drill Rod for Trenchless Drilling
Minimum Order Quantity: 10 Pieces
Price: $60-250
Packaging Details: Steel Frame
Delivery Time: 15-18 Days
Payment Terms: T/T, L/C, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1500-2000 Pieces Per Month
Certification: ITTC CSTT
Brand:
CGE Group
Spu:
D6X6 D7X11- D10X15 D10X14 D10x15 D16X20 D33X44 D23X30 D24X40
Description
Highlight: steel drill rod, rock drill rods
Machine Type: |
Drilling Tool, Drilling Equipment |
Material: |
Carbon Steel |
Processing Type: |
Turning Forging Casting |
Application: |
HDD Project, Oil Well, Water Well, Rock Drilling, Coal Mining/Rock Drilling/Foundation Drilling Construction, Water Well Drilling |
Size: |
38mm-89mm |
Usage: |
No-Dig Drilling, Drill Pipe For Horizontal Directional Drilling Machine.Enlarge The Well Diameter, Borehole Drilling, Horizontal Directional Drilling |
Vermeer HDD Drill Pipe One Piece Upsetted Drill Rod For Trenchless Drilling No Dig drilling

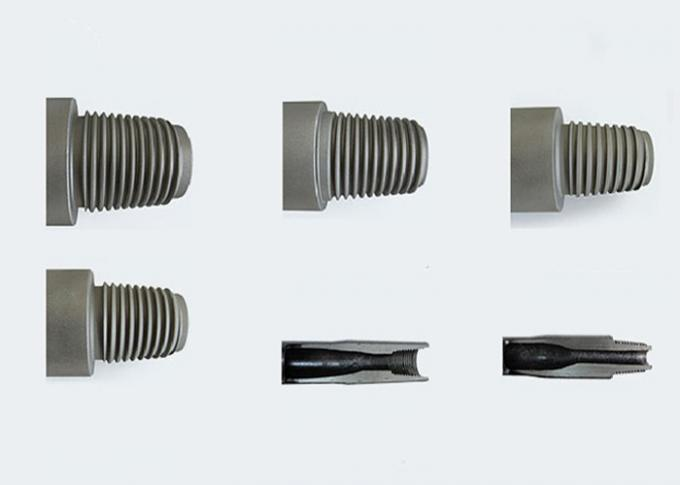

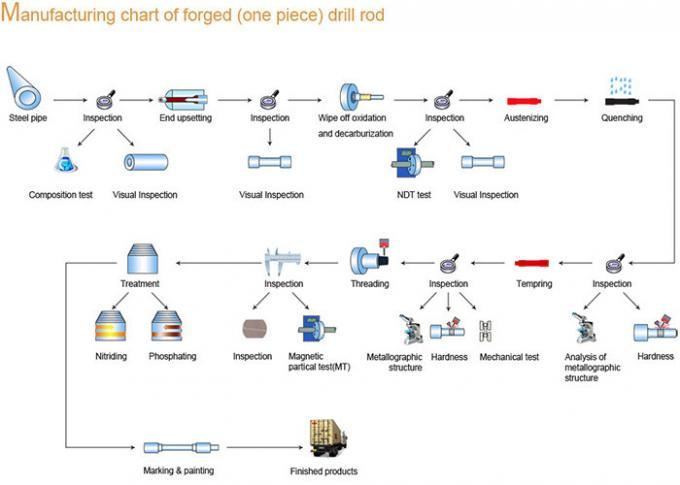

We are specialized in manufacturing forged one-piece and friction welding drill rod and our rod can be compatible with both of chinese and overseas drill machines and all-terrain machines.We have built a long-term and stable raw material supplier, which is also our authorised supplier.
Vermeer HDD Drill Pipe Detail
| Rig Model | Thread Type |
OD of the Tube (mm) |
Wall Thickness (mm) |
OD of the joints/upset (mm) |
Working Length (mm) |
Tempering and Quenching Grade |
Min Bending Radius (m) |
Max Torque (N.m) |
| D6×6 | FS1#200 | 38 | 5.5 | 48 | 1829 | S135 | 17.47 | 1220 |
| D7×11, D10×15 S3 | FS1#200 | 42.2 | 6 | 48 | 1829 | S135 | 29 | 2040 |
| D10×14, D10×15 | FS1#200 | 42.2 | 6 | 48 | 3048 | S135 | 29 | 2040 |
| D16×20A, D16×22 Series II D20×22 S3 | FS1#250 | 48.26 | 6 | 54 | 3048 | S135 | 30 | 2720 |
| D20×22A, D20×22 Series II D20*22 S3 | FS1#400 | 52.4 | 6.5 | 57 | 3048 | S135 | 31 | 3536 |
|
D24×40,D24×40A, D24×40 Series II, D23 × 30 S3 D24×40 S3 |
FS1#600 | 60.3 | 7.1 | 66.7 | 3048 | S135 | 33 | 5440 |
| D40×40 | FS1#600 | 60.3 | 7.1 | 66.7 | 4572 | S135 | 33 | 5440 |
| D33×44, D36×50, D36 ×50 Series II | FS1#650 | 60.3 | 7.5 | 70 | 3048 | S135 | 33 | 6800 |
| D33×44, D36×50, D36 ×50 Series II | FS1#650 | 60.3 | 7.5 | 70 | 4572 | S135 | 33 | 6800 |
| D36×50, D36 ×50 Series II, D40×55 S3 | FS1#700 | 68 | 10.54 | 79 | 3048 | S135 | 44.2 | 6800 |
| D36×50, D36 ×50 Series II | FS1#700 | 68 | 10.54 | 79 | 4572 | S135 | 44.2 | 6800 |
| D50×100/Uni60×70 | FS1#900 | 73 | 9.5 | 82.55 | 3048 | S135 | 51.4 | 12240 |
| D50×100,D50×100A, D60×90 | FS1#900 | 73 | 9.5 | 82.55 | 4572 | S135 | 51.4 | 12240 |
| D50×100,D80×100Series II, D60×90 | FS1#800 | 88.9 | 9.35 | 92 | 4572 | S135 | 51.4 | 13600 |
|
D100×120 Series II, D130×150, D60×90, D60×90 S3, D100×140, D100×140 S3 |
FS1#1000 | 89 | 12 | 111 | 6096 | S135 | 60.2 | 20400 |
| D55×100 | #902 | 73 | 10 | 98 | 4572 | S135 | 52 | 17628 |
| D33×44, D36×50, D36 ×50 Series II | FS2 | 60.3 | 7.5 | 70 | 3048 | S135 | 33 | 6800 |
| D33×44, D36×50, D36 ×50 Series II | FS2 | 60.3 | 7.5 | 70 | 4572 | S135 | 33 | 6800 |
| D100×120 | FS2 | 88.9 | 10 | 104.8 | 6096 | S135 | 60.2 | 24480 |
