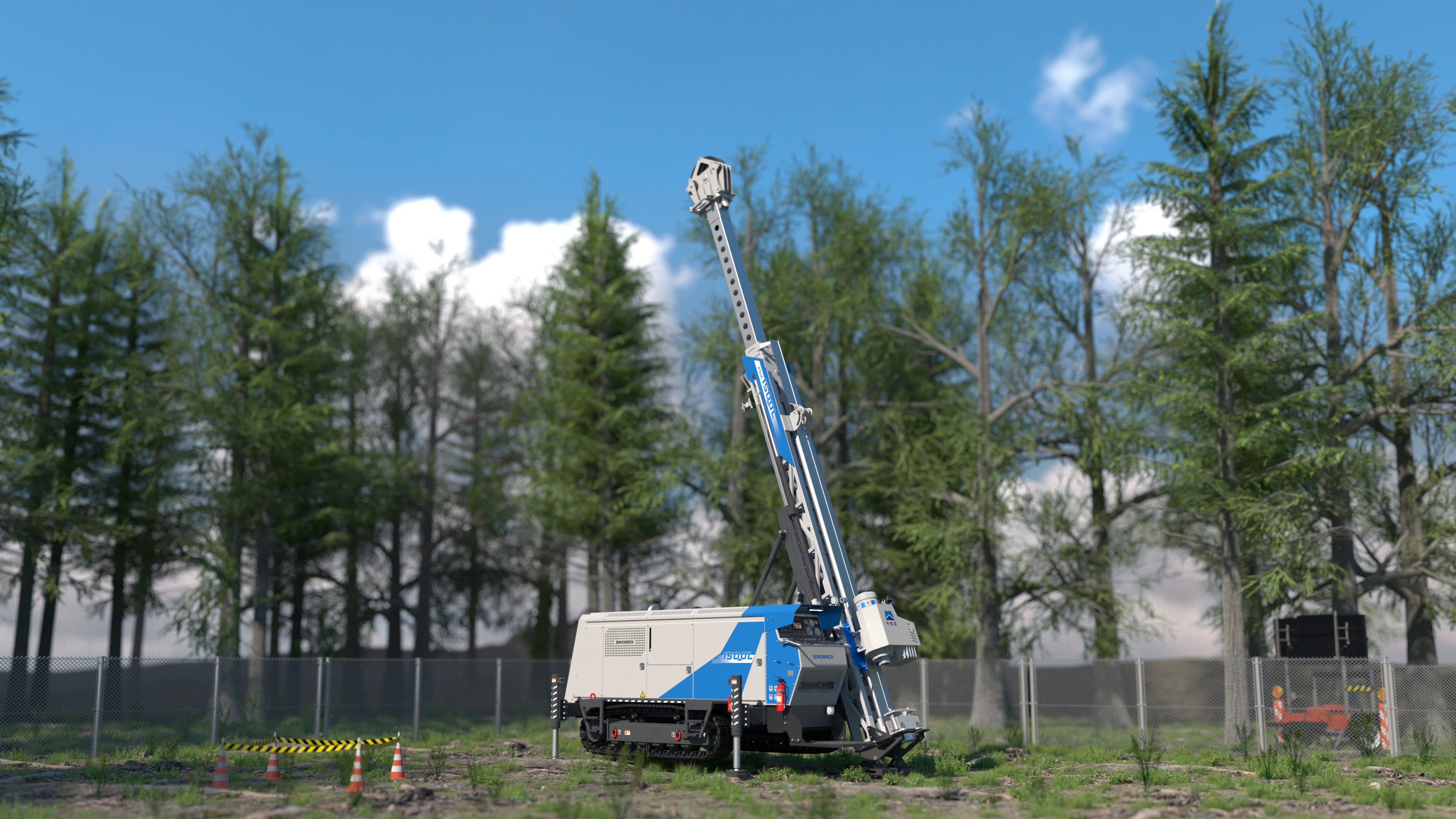

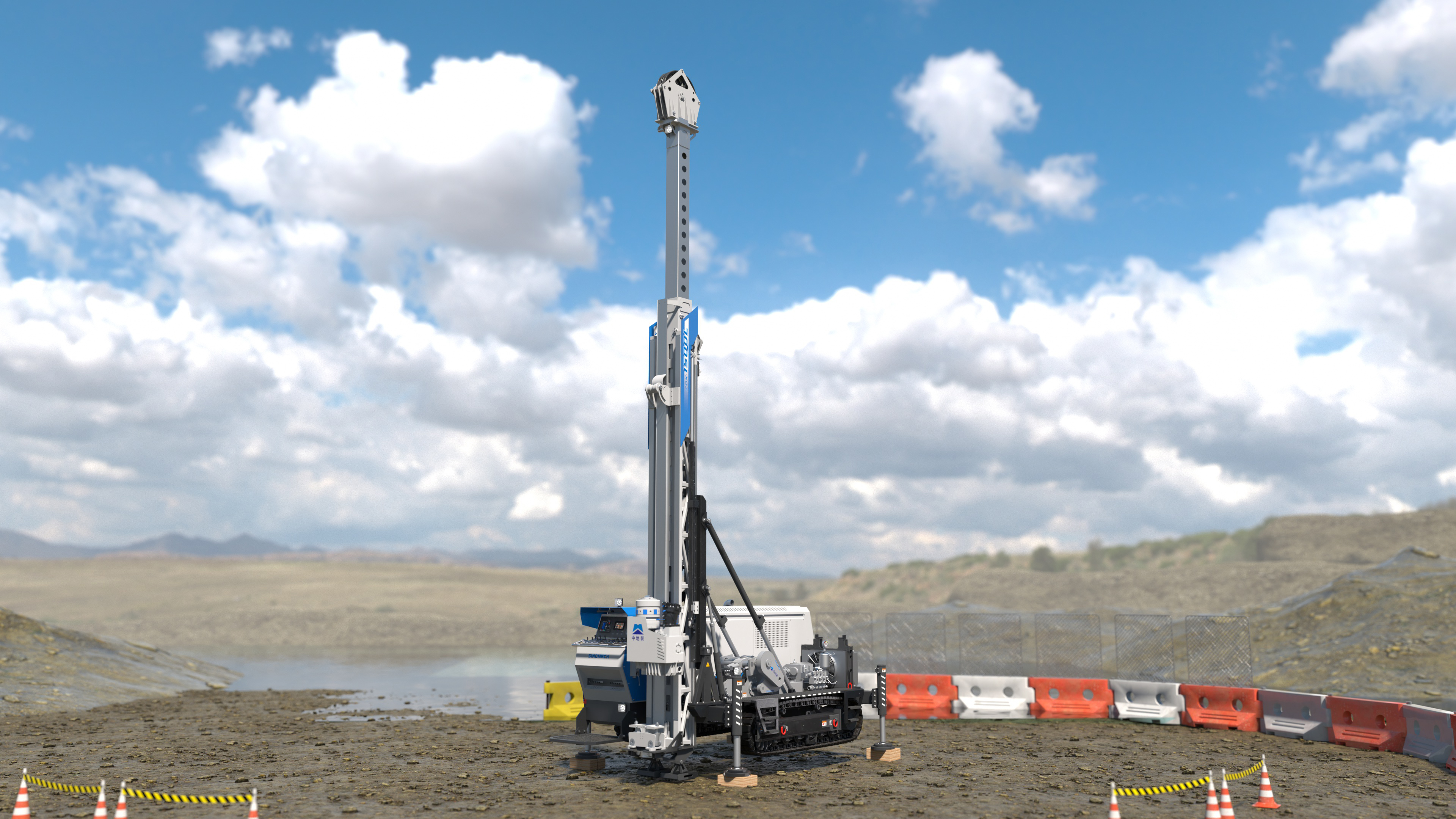

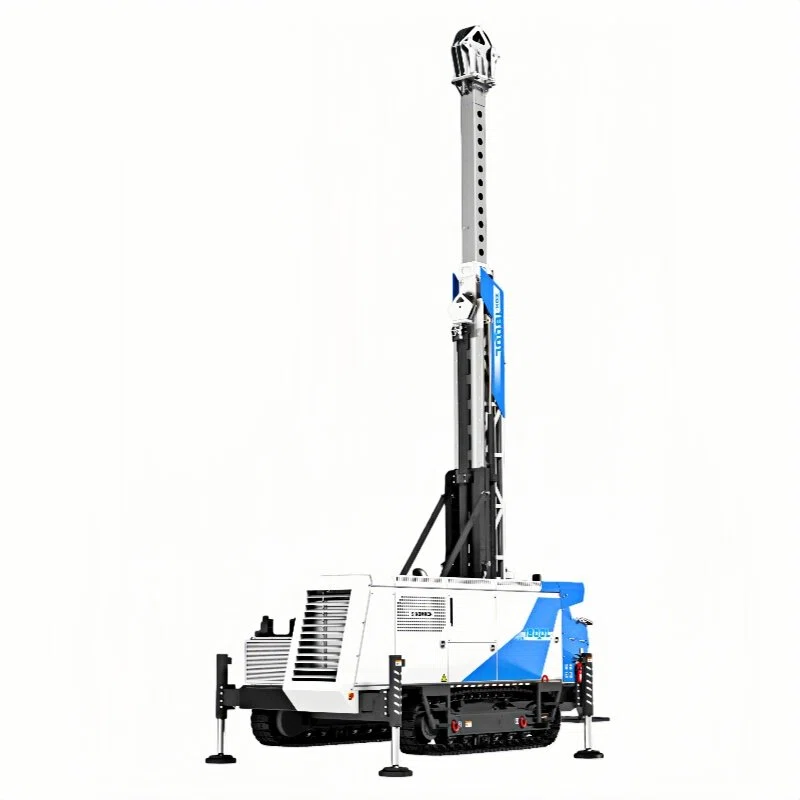

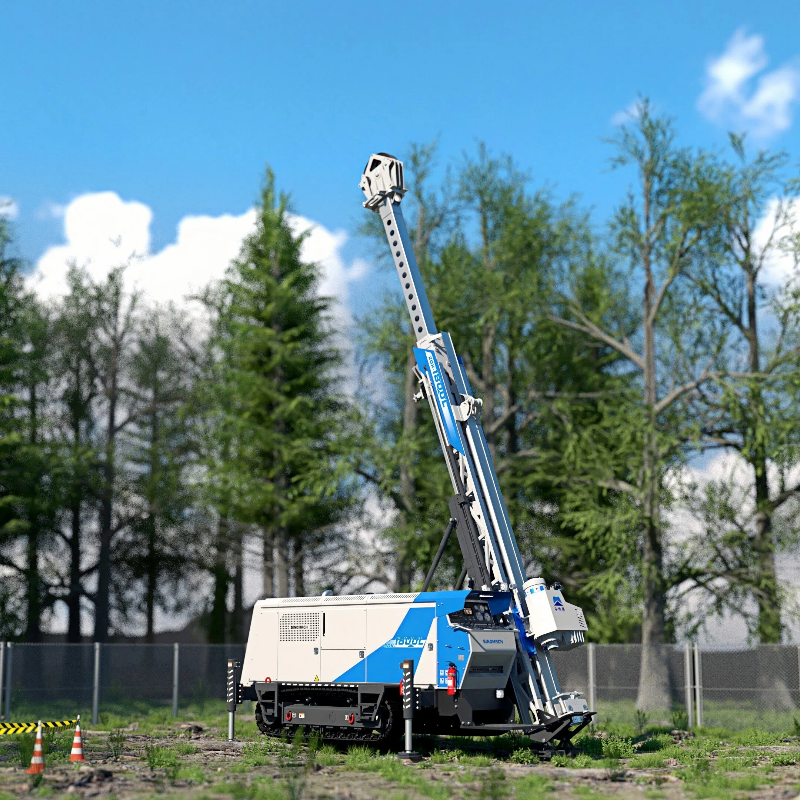

ZDX Series Fully Hydraulic Core Drilling Rig

The ZDX series full-hydraulic core drilling rigs are a new generation of core drilling equipment developed by CGTE Group for geological surveys and commercial exploration, supporting the new round of mineral prospecting breakthrough initiative. This series consists of five models: ZDX-1000L, ZDX-1300L, ZDX-1500L, ZDX-1800L and ZDX-2200L.

Integrating energy-saving hydraulic transmission, fast-moving crawler chassis, integrated precision control system, high-speed high-torque power head, long-stroke feeding mechanism and large-angle luffing mast, the ZDX series boasts outstanding advantages in multiple key aspects. It is adaptable to all-weather field conditions, capable of rapid drilling in complex formations, and features safe and user-friendly human-machine interaction, eco-friendly energy-saving performance and powerful trouble-shooting capacity. Optional accessories include automatic operation system and new energy power unit. The equipment fully meets the requirements for high efficiency, superior quality and sustainable development of drilling projects in the new era.

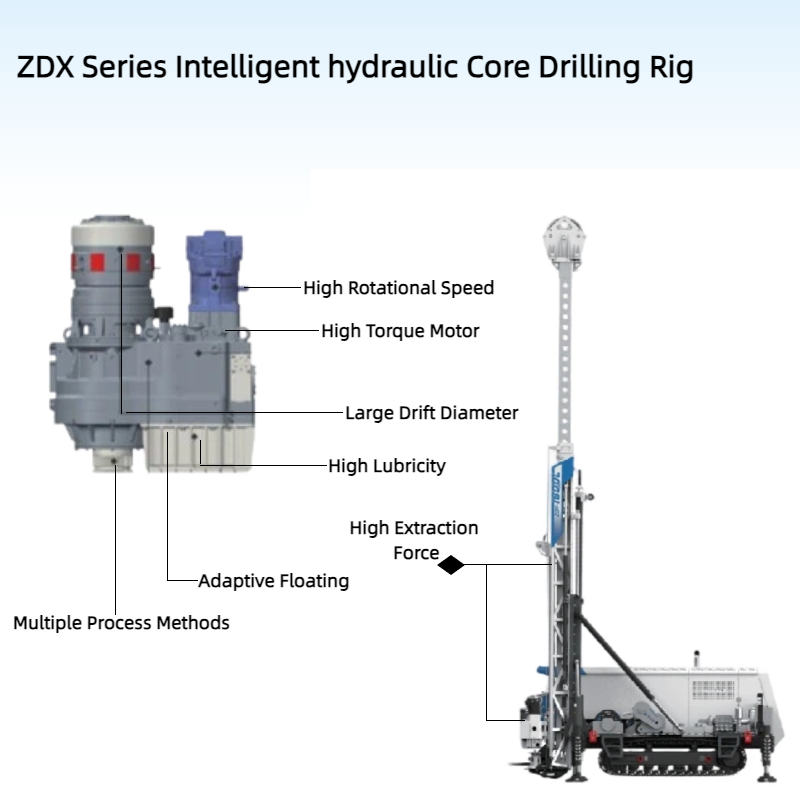

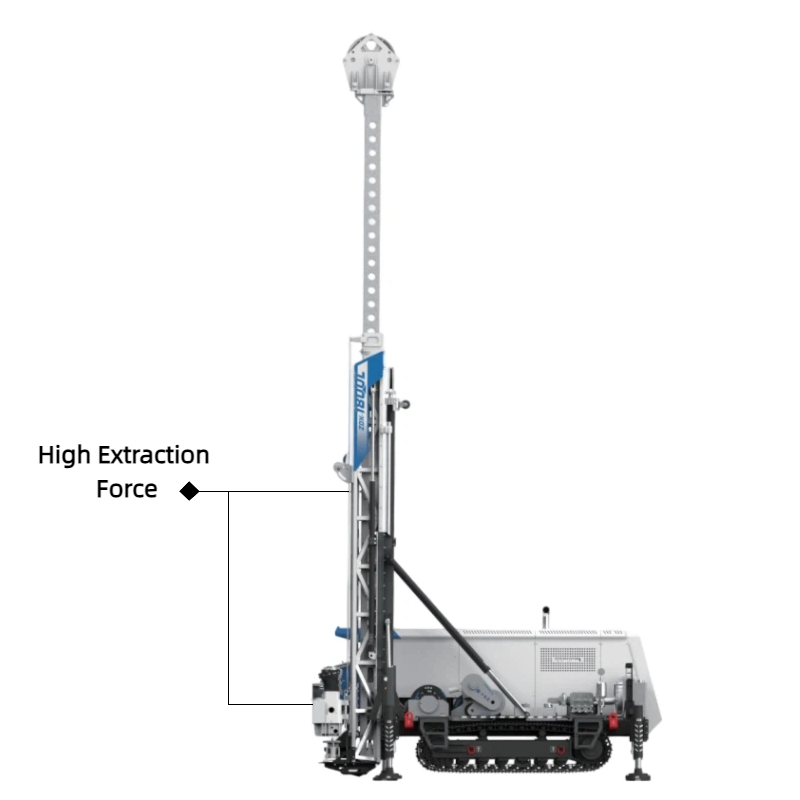

1. Powerful drilling capability: With a maximum torque of 8,000 Nm and a maximum speed of 1,300 r/min, the drilling rig features a standard 125 mm large chuck drift diameter and delivers a powerful pulling force of 250 kN, which enables it to effortlessly tackle drilling challenges in various complex mineral layers and diverse geological conditions, achieving the goal of "efficient and rapid" engineering operations.

2. Excellent environmental friendliness and energy conservation: The drilling rig is provided with China III/V low-emission power options, equipped with intelligent load-sensing pumps and high-pressure piston motors, complemented by stepless gear speed regulation and dual gear design, and integrates power, hydraulic, and transmission technologies into one system, achieving remarkable fuel economy and the goal of "cost-effective" engineering operations.

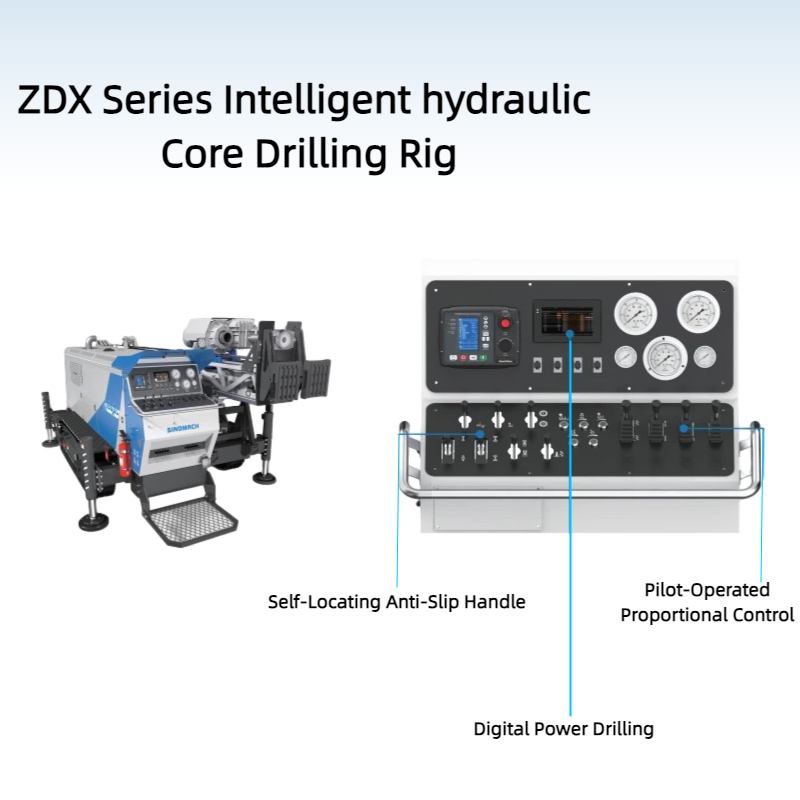

3. Comfortable and user-friendly human-machine interaction: Digital parameters for power and drilling are clearly displayed; pilot proportional control handles enable delicate and precise operation; integrated panels and self-positioning anti-slip handle designs ensure safety and comfort, achieving the goal of ensuring "health and safety" of personnel.

4. Adaptability to all-weather environments: The drilling rig is equipped with top-quality components, such as Cummins turbocharged engines and Rexroth hydraulic components, with key electrical components achieving IP67/68 field-grade protection, combined with anti-corrosion coating technology, ensuring reliable operation in harsh environmental and climatic conditions and achieving the goal of "all-scenario" operation capabilities.

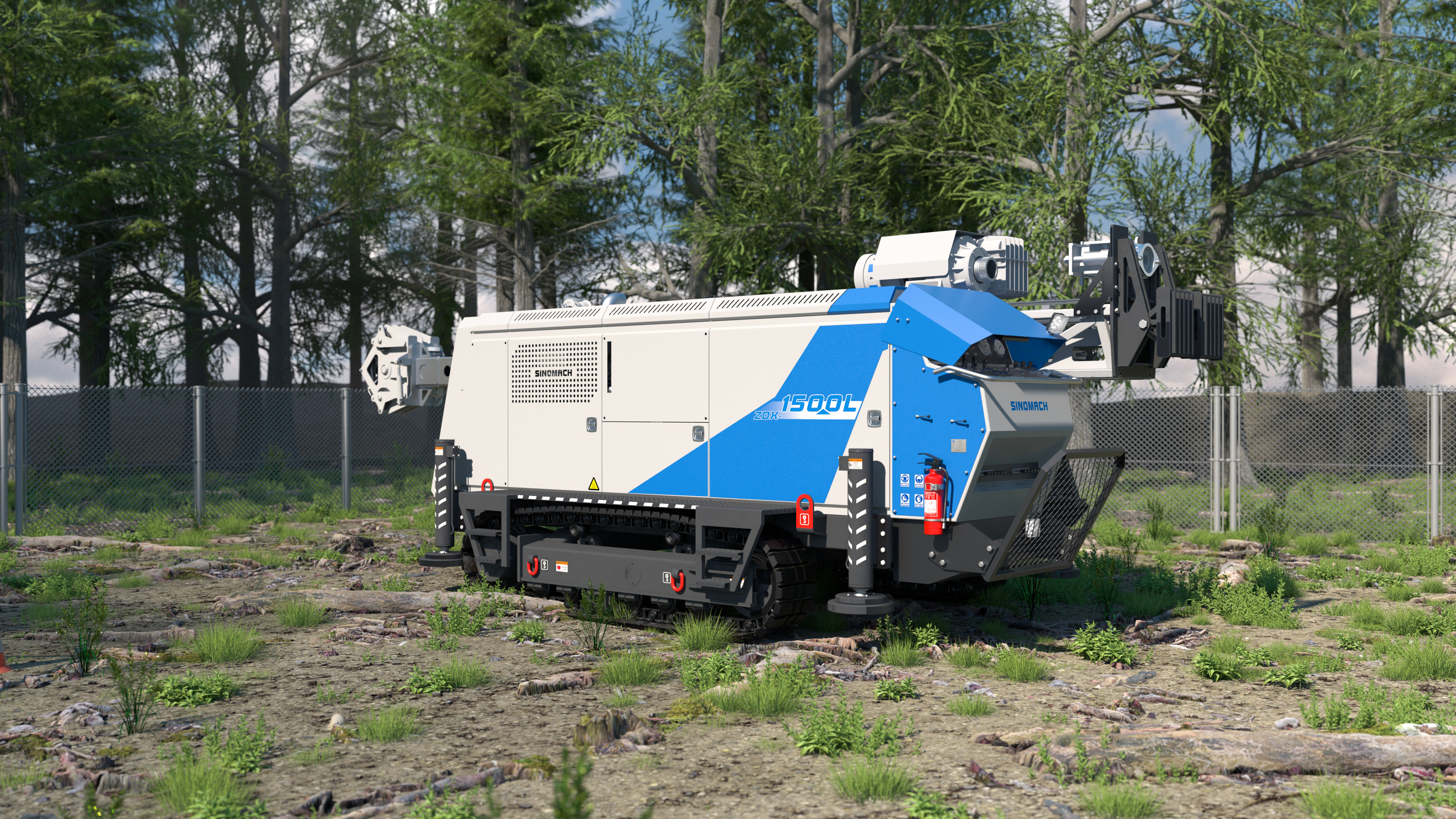

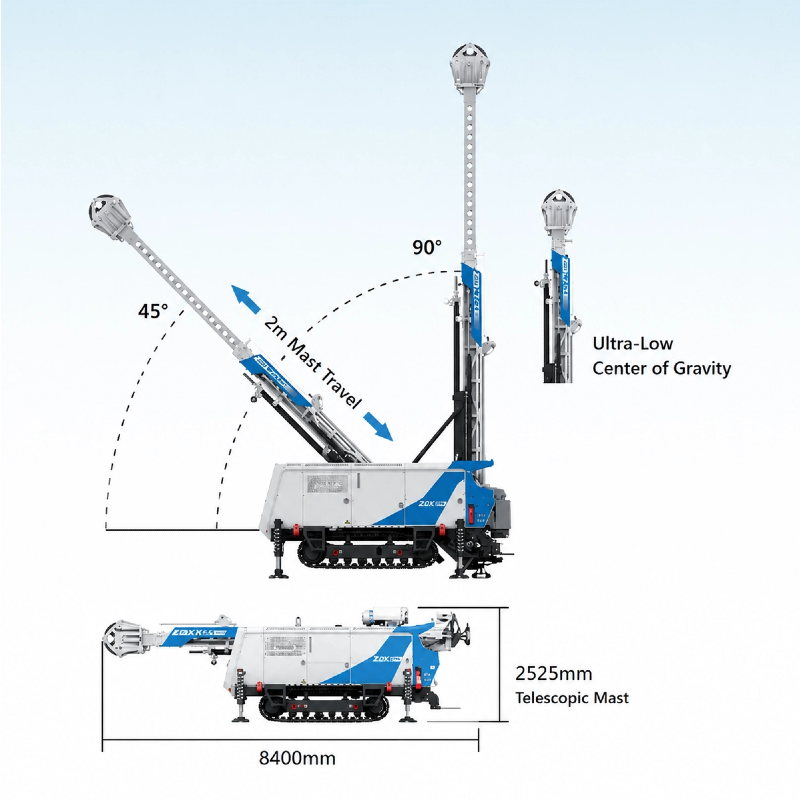

5. All-round pre-drilling support: The drilling rig adopts a modular design for easy maintenance, a large inclination to expand the drilling range, and a low center of gravity to enhance mobility and stability. The combination of a long carriage and a telescopic mast strikes a balance between operational stability and transportation convenience, achieving the goal of "convenience" in pre-drilling support.

6. Scalable supporting capability: The optional fully automated operating system enables automatic make-up/break-out and thread protection through smooth feeding and floating. It is equipped with a manipulator for hoisting or running operations and a powered drill rod box, enhancing the efficiency of deep-hole pipe string operations. The upgraded diesel-electric hybrid power system seamlessly combines low energy consumption with high performance, achieving the goal of "enhanced efficiency".
